WAFER-945GSE2 3.5" Motherboard
Page 20
3.2.4 Backlight Inverter Connector
CN Label: INVERTER1
CN Type:
5-pin wafer
CN Location:
See
Figure 3-6
CN Pinouts:
See
Table 3-6
The backlight inverter connectors provide the backlights on the LCD display connected to
the WAFER-945GSE2 with +12V of power.

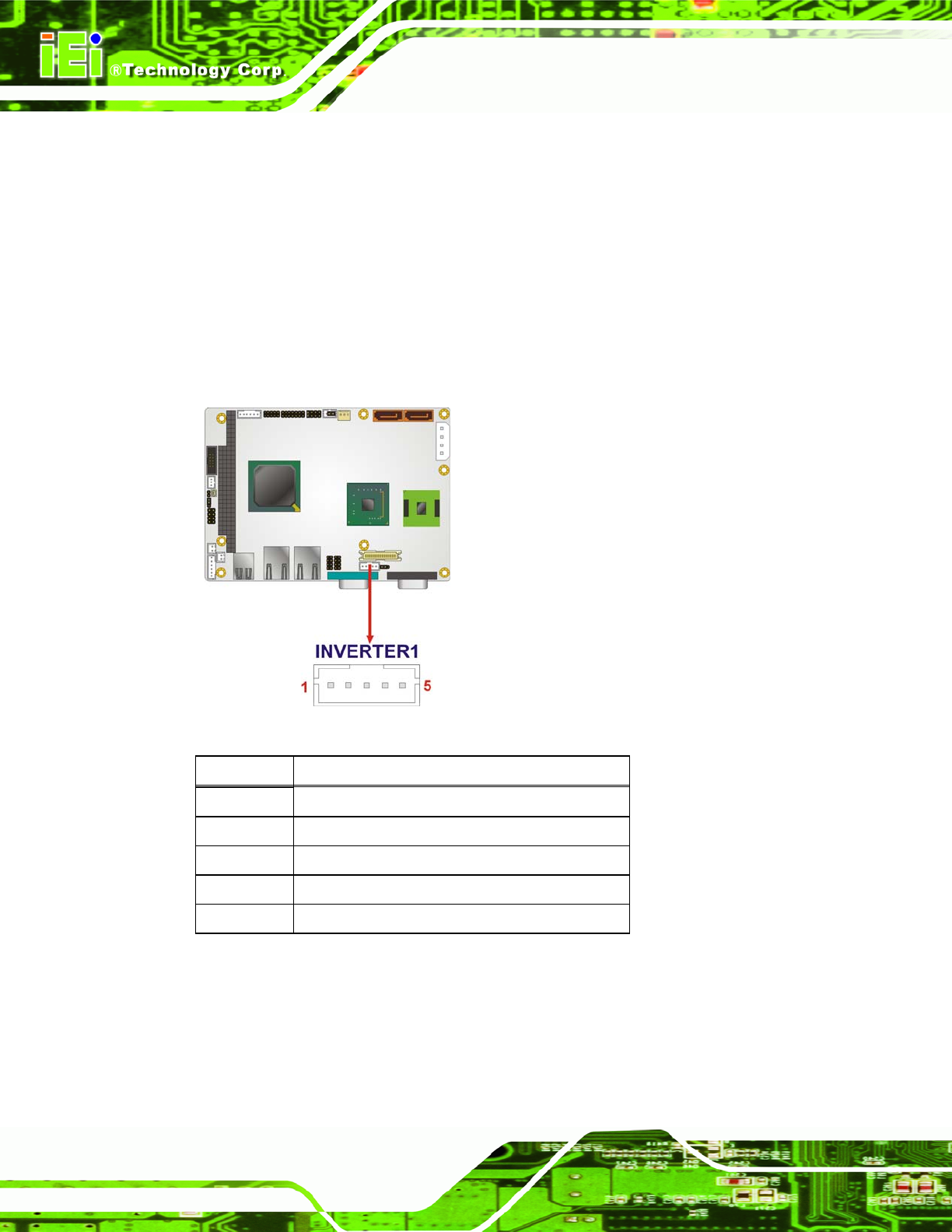

Figure 3-6: Panel Backlight Connector Location
Pin Description
1 LCD Backlight Control
2 GND
3 +12V
4 GND
5 BACKLIGHT Enable
Table 3-6: Panel Backlight Connector Pinouts
