WAFER-945GSE2 3.5" Motherboard
Page 21
3.2.5 Battery Connector
CAUTION:
Risk of explosion if battery is replaced by and incorrect type. Only
certified engineers should replace the on-board battery.
Dispose of used batteries according to instructions and local
regulations.
CN Label: BAT1
CN Type:
2-pin wafer
CN Location:
See
Figure 3-7
CN Pinouts:
See
Table 3-7
This is connected to the system battery. The battery provides power to the system clock to
retain the time when power is turned off.

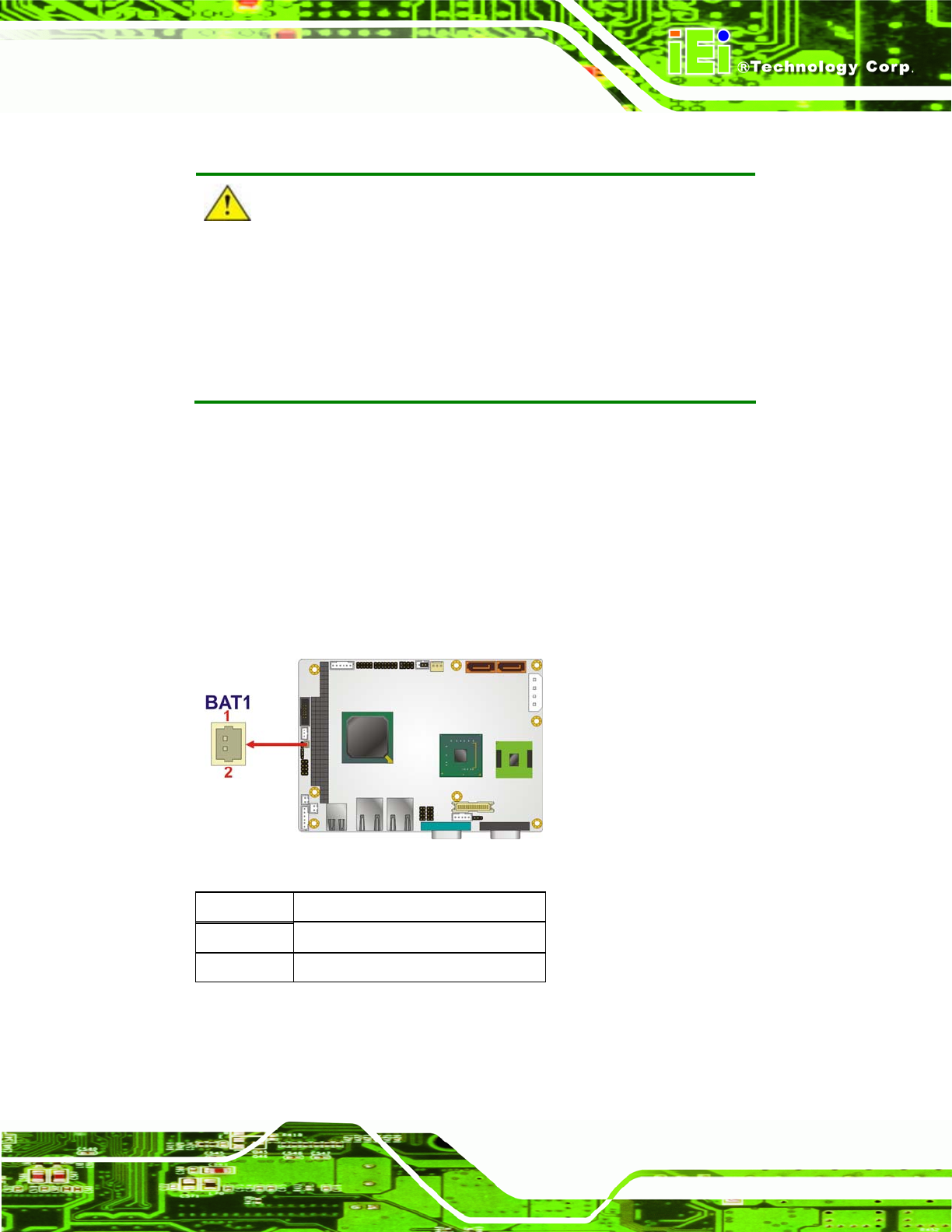

Figure 3-7: Battery Connector Location
Pin Description
1 GND
2 Battery+
Table 3-7: Battery Connector Pinouts
