WAFER-945GSE2 3.5" Motherboard
Page 25
PIN NO. DESCRIPTION
2 +12V
3 Fan Speed Detect
Table 3-10: +12V Fan Connector Pinouts
3.2.9 Keyboard/Mouse Connector
CN Label: KB_MS1
CN Type:
6-pin wafer
CN Location:
See
Figure 3-11
CN Pinouts:
See
Table 3-11
The keyboard and mouse connector can be connected to a standard PS/2 cable or PS/2
Y-cable to add keyboard and mouse functionality to the system.

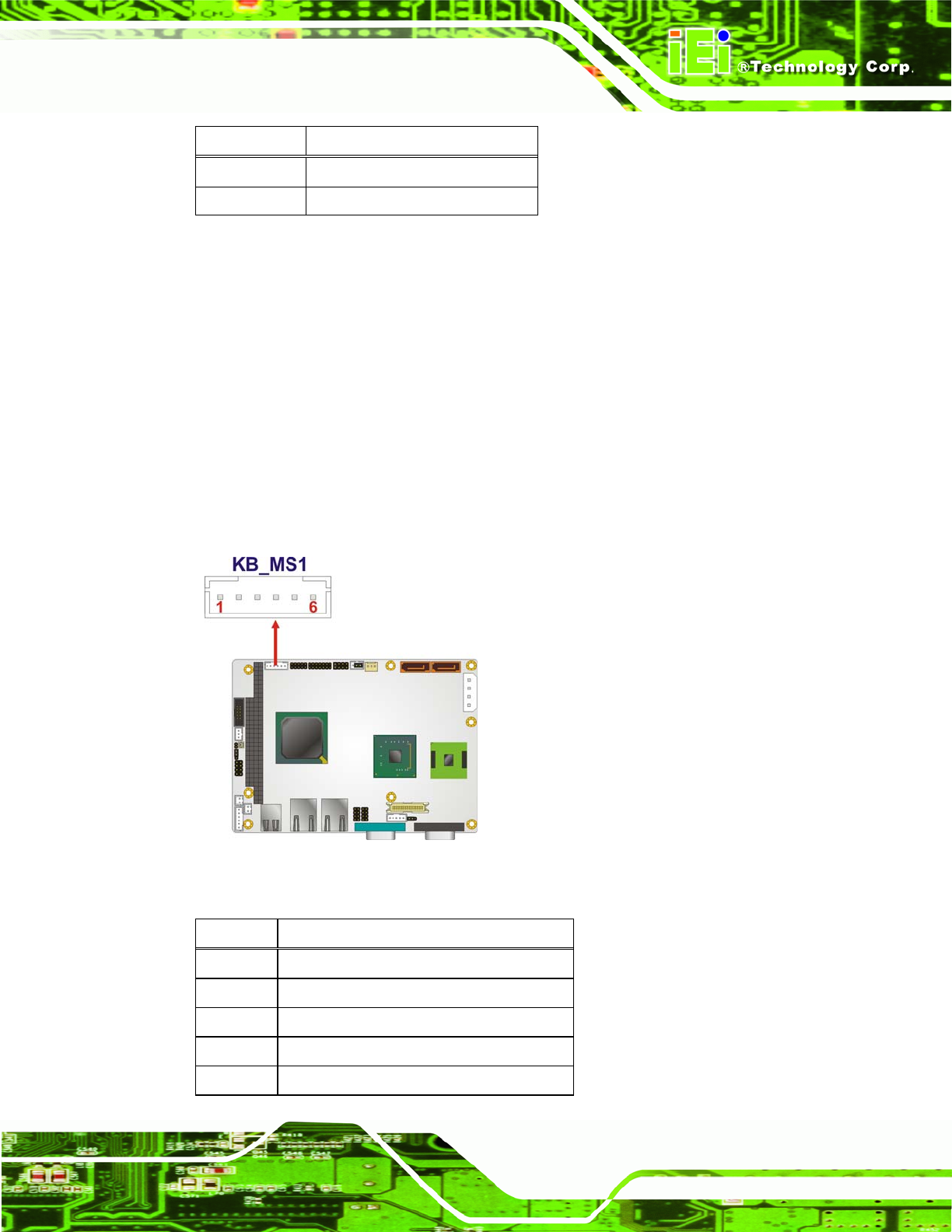

Figure 3-11: Keyboard/Mouse Connector Location
Pin Description
1 +5 V KB DATA
2 MS DATA
3 MS CLK
4 KB DATA
5 KB CLK
