WAFER-945GSE2 3.5" Motherboard
Page 26
Pin Description
6 GROUND
Table 3-11: Keyboard/Mouse Connector Pinouts
3.2.10 LED Connector
CN Label: LED_C1
CN Type:
6-pin wafer
CN Location:
See
Figure 3-12
CN Pinouts:
See
Table 3-12
The LED connector connects to an HDD indicator LED and a power LED on the system
chassis to inform the user about HDD activity and the power on/off status of the system.

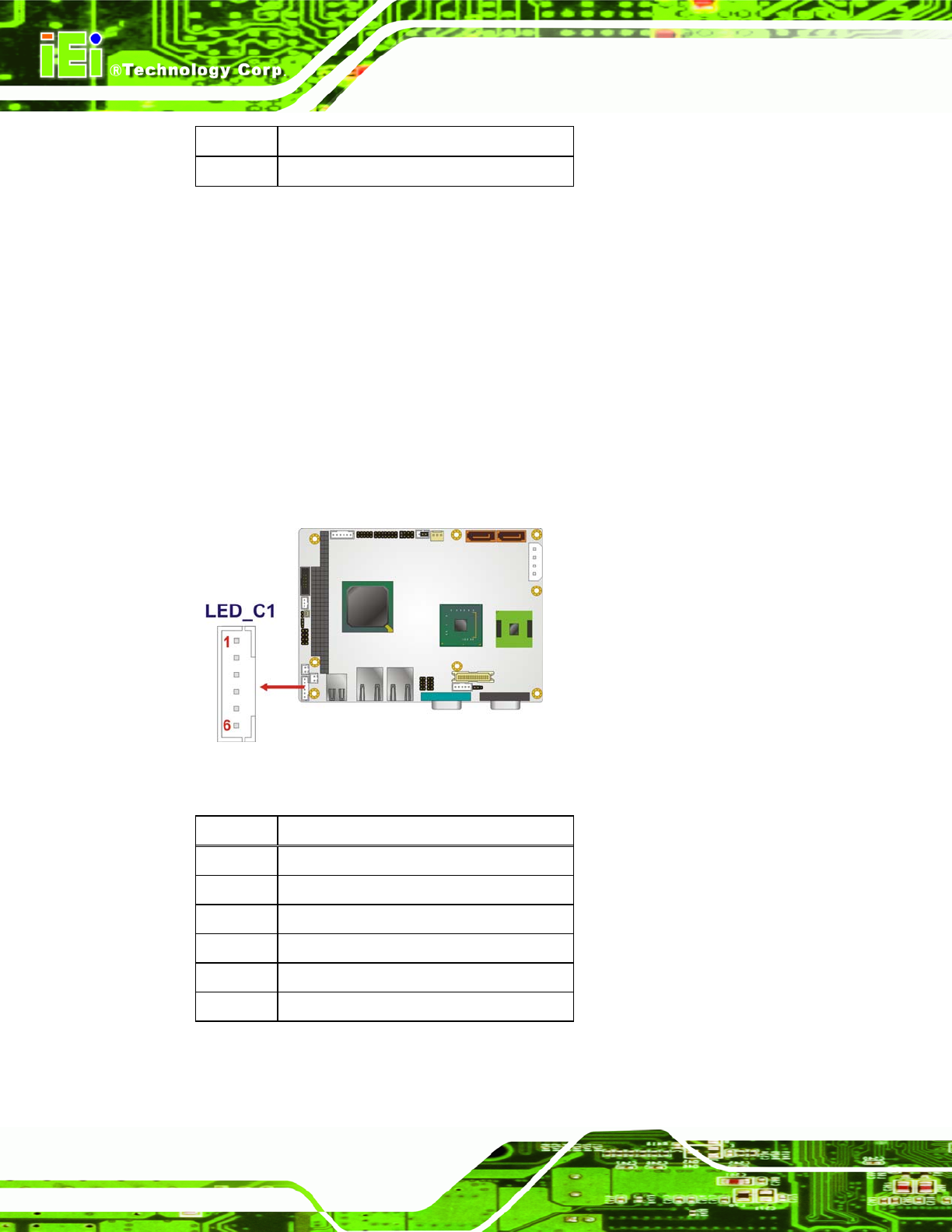

Figure 3-12: LED Connector Location
Pin Description
1 +5V
2 GND
3 Power LED+
4 Power LED-
5 HDD LED+
6 HDD LED-
Table 3-12: LED Connector Pinouts
