3.2.11 LVDS LCD Connector
CN Label: LVDS1
CN Type:
30-pin crimp
CN Location:
See
Figure 3-13
CN Pinouts:
See
Table 3-13
The 30-pin LVDS LCD connector can be connected to single channel or dual channel,
18-bit or 36-bit LVDS panel.

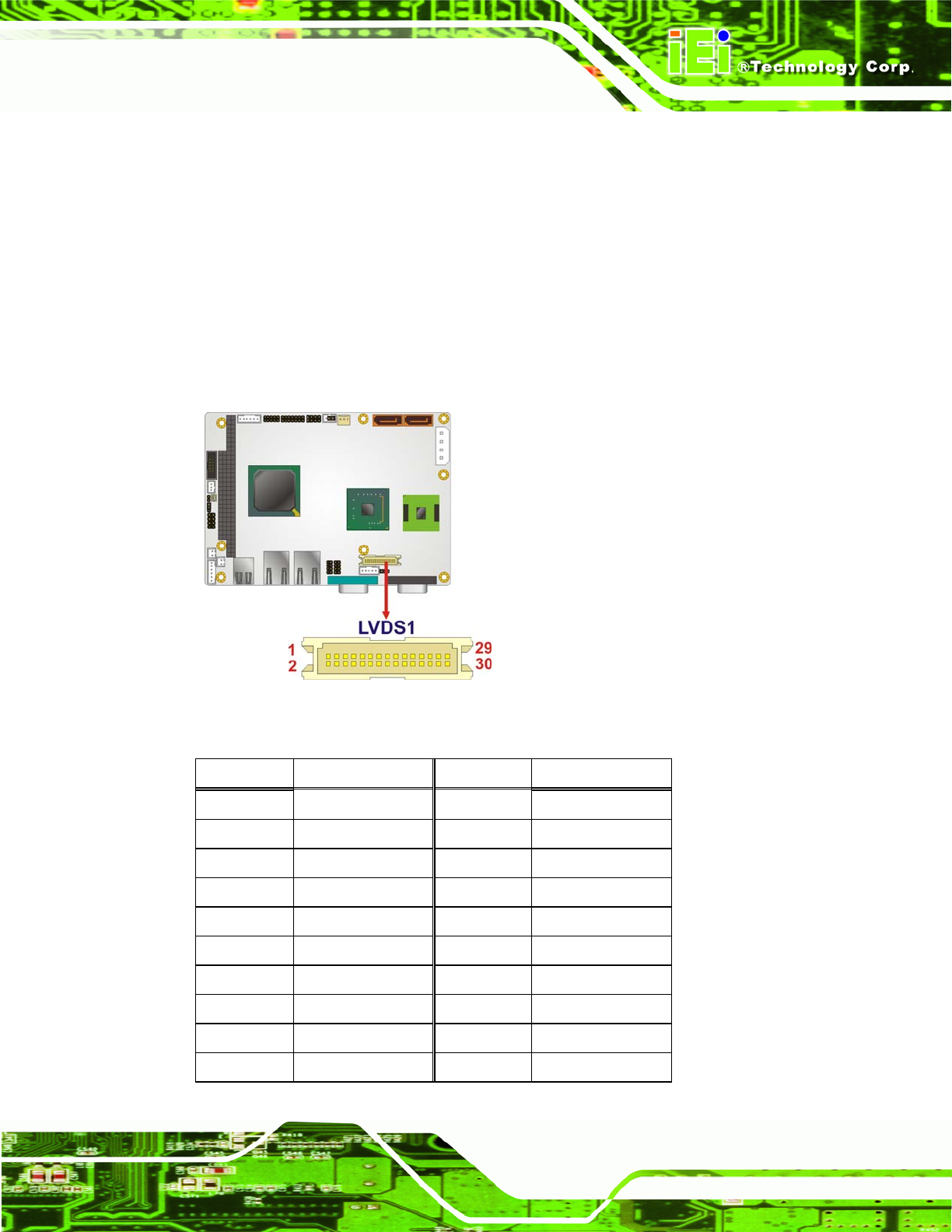

Figure 3-13: LVDS LCD Connector Pinout Locations
Pin Description Pin Description
1 GND1 2 GND2
3 A_Y0 4 A_Y0#
5 A_Y1 6 A_Y1#
7 A_Y2 8 A_Y2#
9 A_CK 10 A_CK#
11 NC 12 NC
13 GND3 14 GND4
15 B_Y0 16 B_Y0#
17 B_Y1 18 B_Y1#
19 B_Y2 20 B_Y2#
