WAFER-945GSE2 3.5" Motherboard
Page 28
Pin Description Pin Description
21 B_CK 22 B_CK#
23 NC 24 NC
25 GND5 26 GND6
27 VCC_LCD 28 VCC_LCD
29 VCC_LCD 30 VCC_LCD
Table 3-13: LVDS LCD Port Connector Pinouts
3.2.12 PC/104 Connector
CN Label: CN2
CN Type:
104-pin PC/104 slot
CN Location:
See
6Figure 3-14
CN Pinouts:
See
Table 3-14 and Table 3-15
The PC/104 connector is for attaching a PC/104 expansion card.

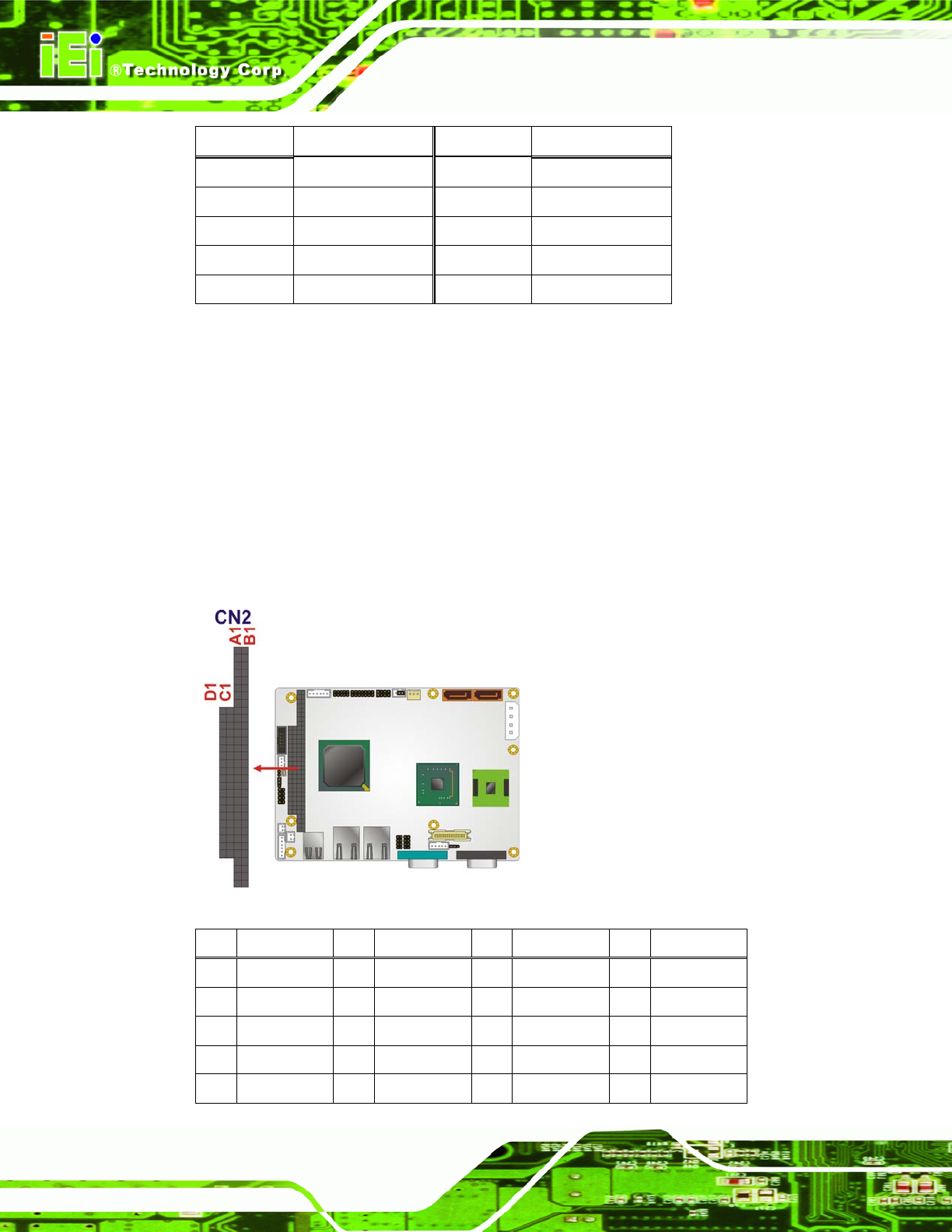

Figure 3-14: PC/104 Connector
Pin Description Pin Description
Pin
Description
Pin
Description
A1 -IOCHK A17 SA14 B1 GND B17
-DACK1
A2 SD7 A18 SA13 B2 RSTDRV B18
DRQ1
A3 SD6 A19 SA12 B3 VCC B19
-REFRESH
A4 SD5 A20 SA11 B4 IRQ9 B20
BCLK
A5 SD4 A21 SA10 B5 NC B21
IRQ7
