WAFER-945GSE2 3.5" Motherboard
Page 31
Pin Description
1 Power Switch
2 GND
Table 3-17: Power Button Connector Pinouts
3.2.15 Reset Button Connector
CN Label: RESET1
CN Type:
2-pin wafer
CN Location:
See
Figure 3-17
CN Pinouts:
See
Table 3-18
The reset button connector is connected to a reset switch on the system chassis to enable
users to reboot the system when the system is turned on.

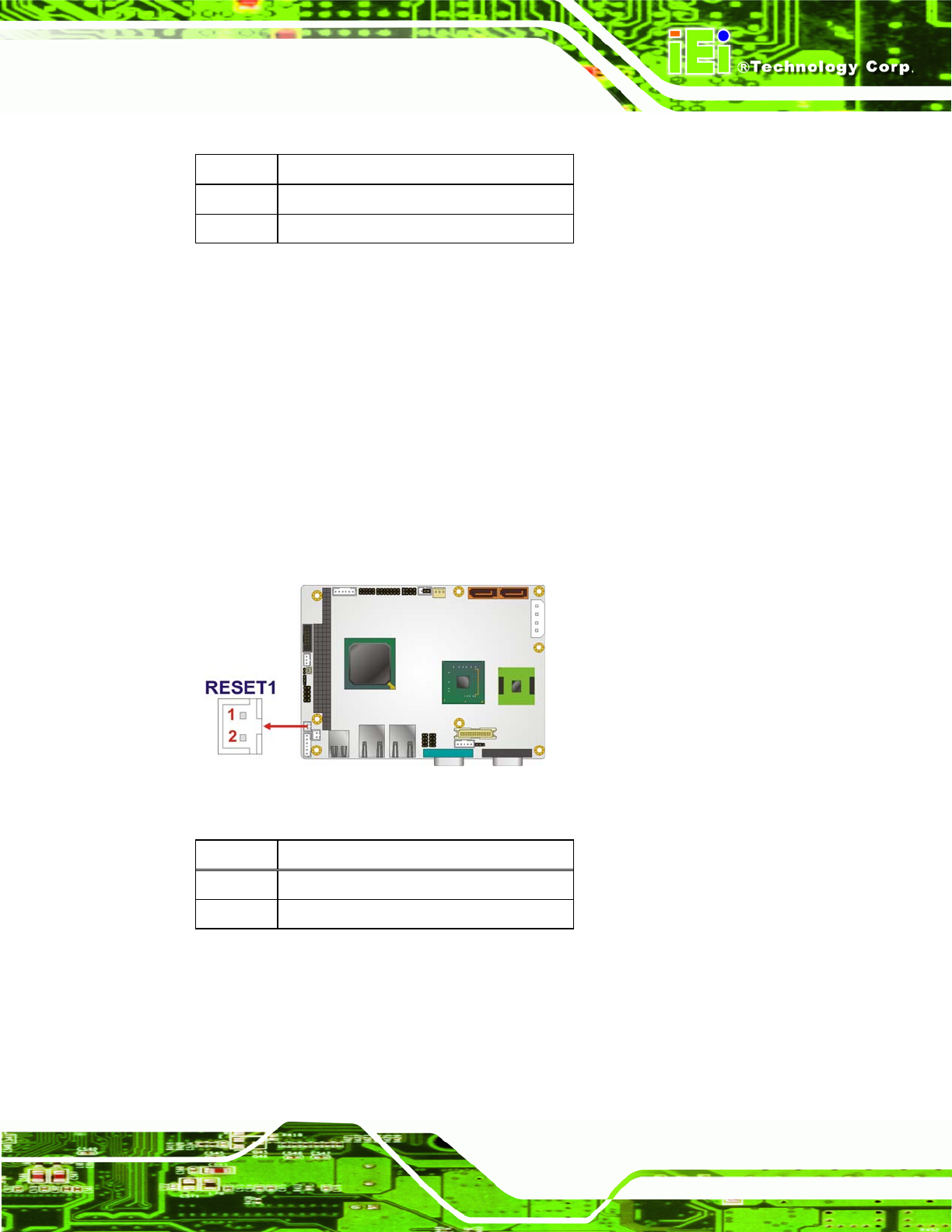

Figure 3-17: Reset Button Connector Location
Pin Description
1 Reset Switch
2 GND
Table 3-18: Reset Button Connector Pinouts
3.2.16 SATA Drive Connectors
CN Label: SATA1, SATA2
CN Type:
7-pin SATA drive connector
