WAFER-945GSE2 3.5" Motherboard
Page 32
CN Location:
See
Figure 3-18
CN Pinouts:
See
Table 3-19
The SATA drive connectors can be connected to SATA drives and support up to 3Gb/s
data transfer rate.

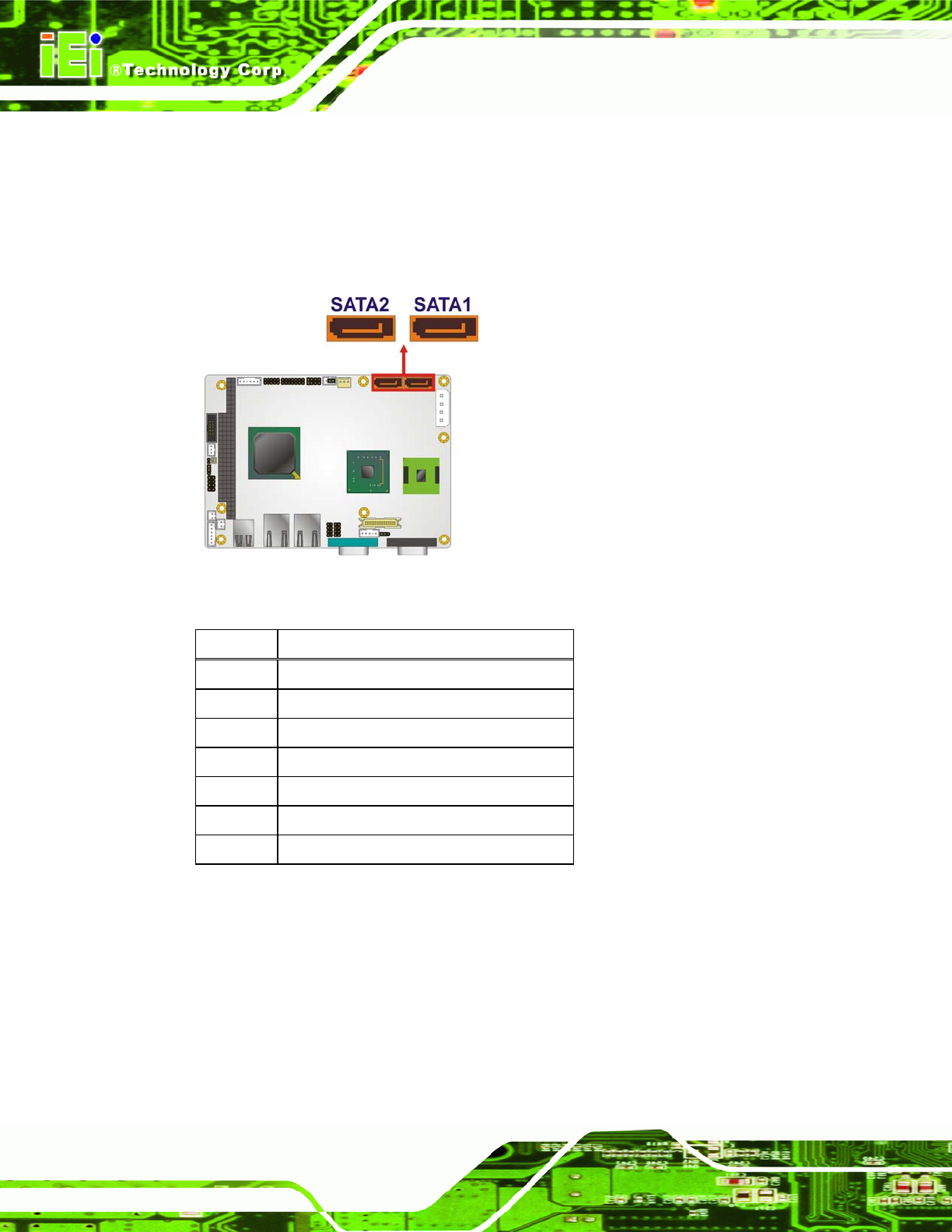

Figure 3-18: SATA Drive Connector Locations
Pin Description
1 GND
2 TX+
3 TX-
4 GND
5 RX-
6 RX+
7 GND
Table 3-19: SATA Drive Connector Pinouts
3.2.17 Serial Port Connector, RS-232/422/485
CN Label: COM2
CN Type:
14-pin header
CN Location:
See Figure 3-19
CN Pinouts:
See Table 3-20
