WAFER-945GSE2 3.5" Motherboard
Page 38
Pin Description Pin Description
1 VCC 5 VCC
2 DATA- 6 DATA-
3 DATA+ 7 DATA+
4 GND 8 GND
Table 3-26: USB Port Pinouts
3.3.4 VGA Connector
CN Label: VGA1
CN Type:
15-pin Female
CN Location:
See Figure 3-22
CN Pinouts:
See Figure 3-25 and Table 3-27
The WAFER-945GSE2 has a single 15-pin female connector for connectivity to standard
display devices.
PIN DESCRIPTION PIN DESCRIPTION
1 RED 2 GREEN
3 BLUE 4 NC
5 GND 6 CRT_PLUG-
7 GND 8 GND
9 VCC 10 GND
11 NC 12 DDC DAT
13 HSYNC 14 VSYNC
15 DDCCLK
Table 3-27: VGA Connector Pinouts

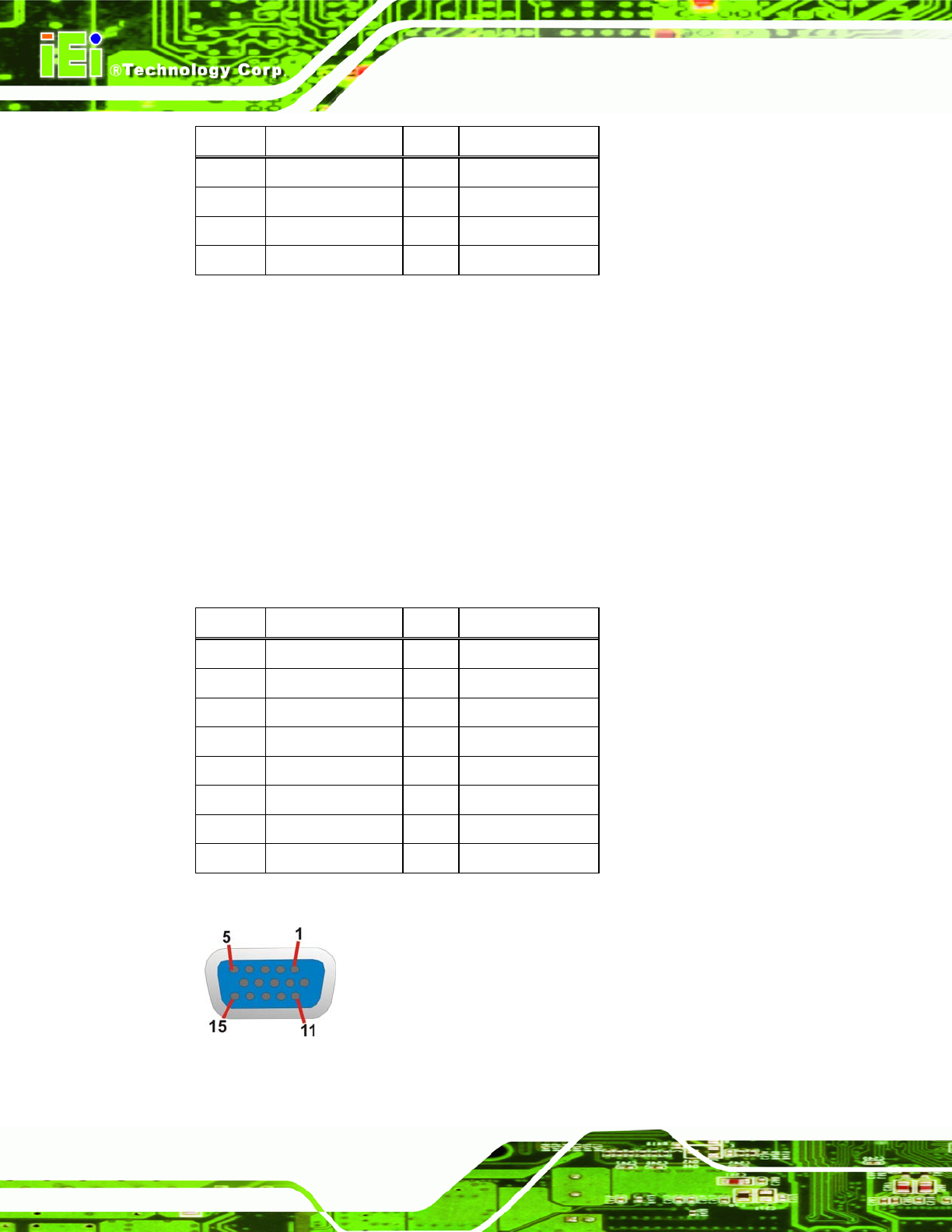

Figure 3-25: VGA Connector
