WAFER-945GSE2 3.5" Motherboard
Page 42
Step 1: Locate the CF card socket. Place the WAFER-945GSE2 on an anti-static pad
with the solder side facing up. Locate the CF card.
Step 2: Align the CF card. Make sure the CF card is properly aligned with the CF
socket.
Step 3: Insert the CF card. Gently insert the CF card into the socket making sure the
socket pins are properly inserted into the socket. See
Figure 4-1.

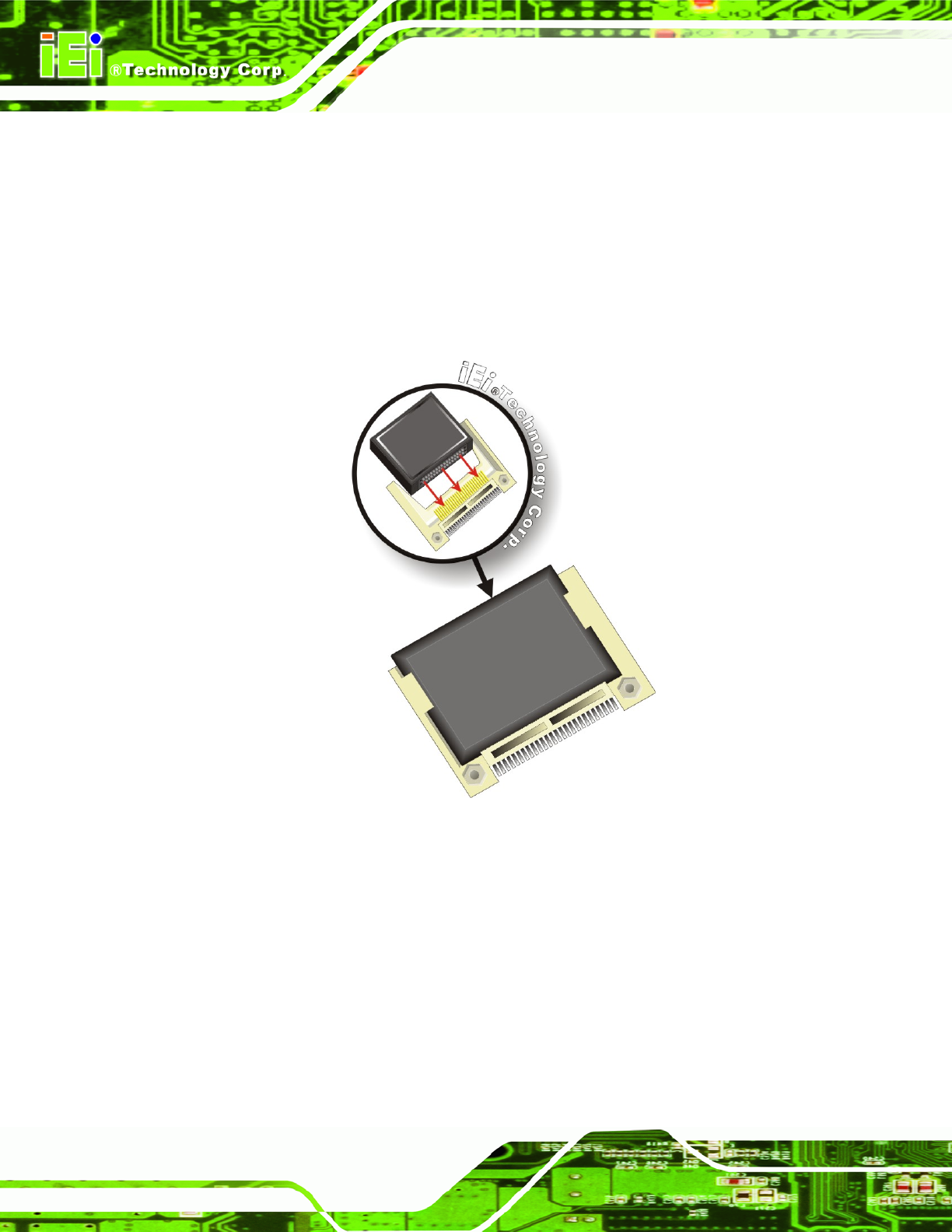

Figure 4-1: CF Card Installation
