WAFER-945GSE2 3.5" Motherboard
Page 47

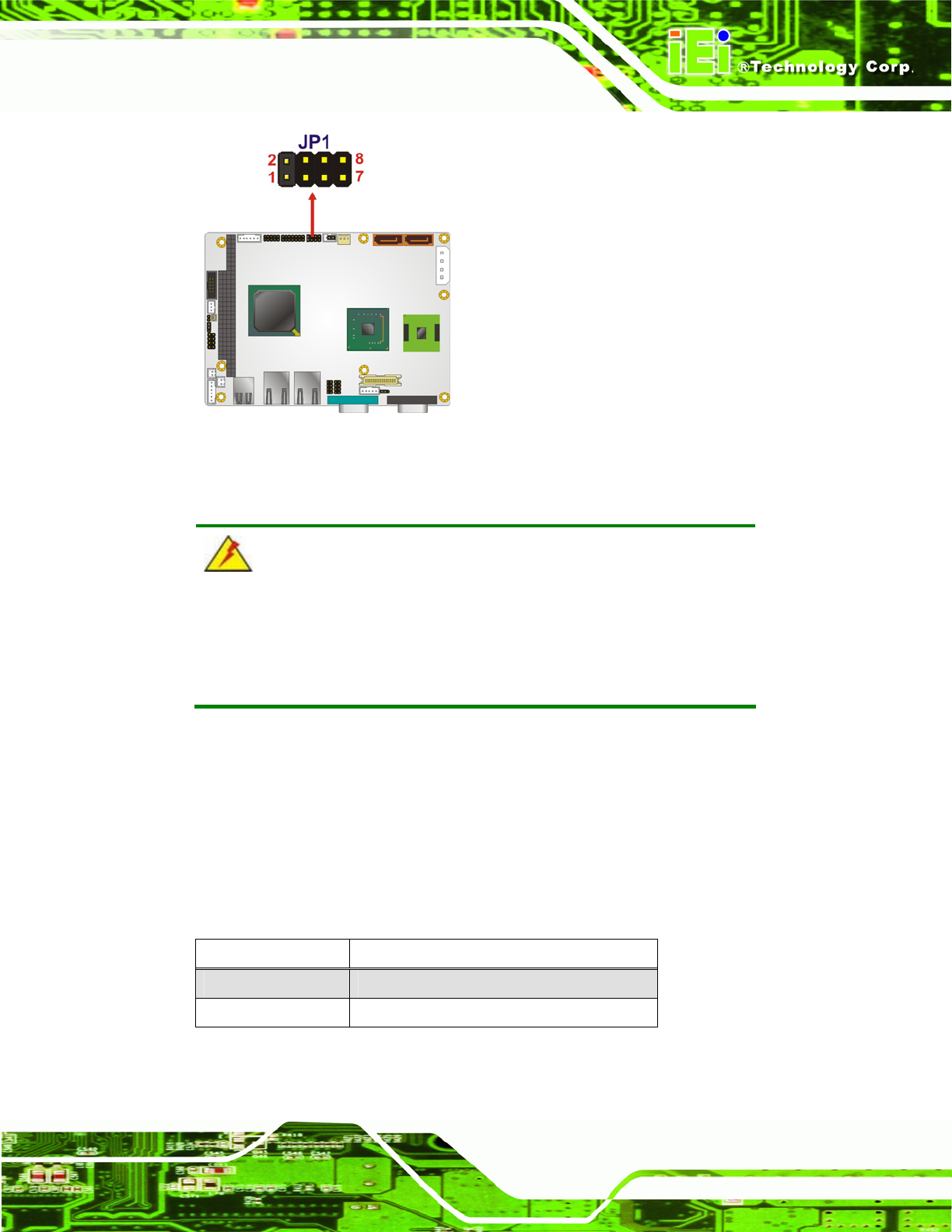

Figure 4-5: COM 2 Function Select Jumper Location
4.4.5 LVDS Voltage Selection
WARNING:
Permanent damage to the screen and WAFER-945GSE2 may occur if
the wrong voltage is selected with this jumper. Please refer to the user
guide that came with the monitor to select the correct voltage.
Jumper Label: J_VLVDS1
Jumper Type:
3-pin header
Jumper Settings:
See
Table 4-6
Jumper Location:
See
Figure 4-6
The LVDS Voltage Selection jumpers allow the LVDS screen voltages to be set.
Setting Description
Short 1-2 +3.3V LVDS (Default)
Short 2-3 +5V LVDS
Table 4-6: LVDS Voltage Selection Jumper Settings
