Qualite Tungsten Light INSTRUCTIONS

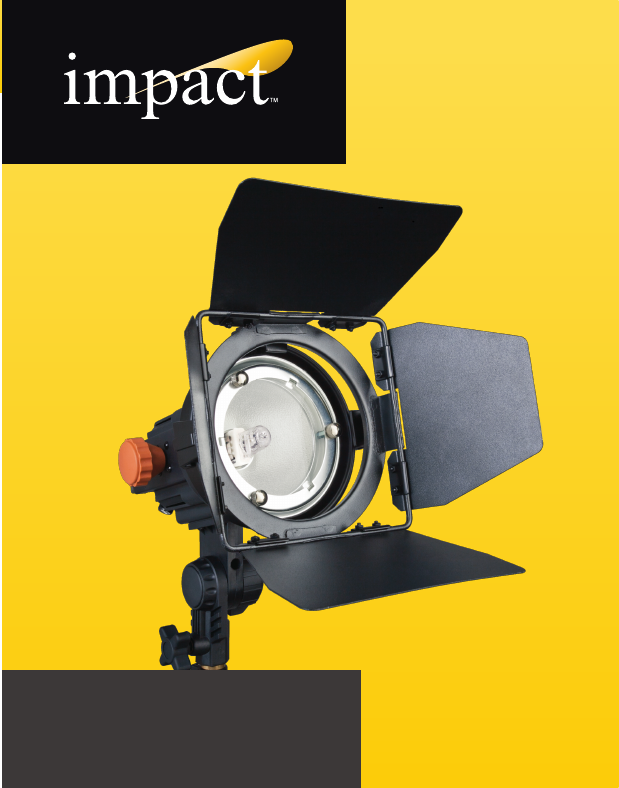

Introduction Thank you for choosing the Impact Qualite V-2012. This pro-style Qualite gives you 300 watts of smooth light with focusing ability. Its strong polycarbonate body features a convenient cool-touch handle and a 12.5’ AC cable with an in-line, heavy-duty, rocker power switch. It also incorporates a double-slot filter/scrim holder and comes with a four-leaf barndoor. The system will accommodate a 300 watt, 120 volt bulb.
Safety Precautions Caution • Quartz lamps generate extreme heat. To avoid injury, do not touch the light housing while lamp is lit. • Allow light to cool to room temperature before storing or handling. • To prevent bulb failure, do not bump or jar unit while lamp is hot. • Do not operate unit without the safety glass installed. • To avoid overheating, do not block vents, or operate unit in a downward position for extended periods of time. • This unit can cause severe burns if mishandled.
Operating Instructions 1. Barndoor attachment Loosen the barndoor locking screw (A) and open the hinged barndoor locking bracket (B). Seat the barndoor mounting collar in the three fixed barndoor brackets (C), then close the locking bracket and retighten the locking screw. When properly installed, the barndoors are free to rotate 360°. C A 2. Mount on light stand The Qualite mounts on any standard, 5/8˝ diameter light stand.
3. Adjust light angle Loosen the angle tilt knob, and position light angle as desired. Retighten tilt knob. Do not overtighten. 4. Connect to power supply Plug power cord into a grounded 110/120V AC power supply only. 5. Switch on power Rock the power switch to the “on” position. 6. Adjust beam focus Rotate lamp adjustment knob clockwise for a spotlight effect, or counterclockwise for a floodlight effect.
Qualite Lamps Note It is normal for the Qualite V-2012 to smoke for a few minutes when first used, as the intense heat from the lamp initially burns off manufacturing residues. Smoking for longer than 15 minutes, however, is not normal, and may indicate a malfunction. If so, discontinue use, and return to place of purchase. Quartz bulb filaments are fragile and easily broken, especially when hot. Always handle your Qualite carefully to avoid shock to the bulb filament. Changing the lamp 1.
Specifications Qualite V-2012 Construction Synthetic housing, convection vented cooling Reflector 4˝ anodized aluminum Light beam spread 21-40° Socket 2-pin (GY9.5) Switch Inline power cord Power cord 12´6˝ 18-gauge, 3-prong U.S. plug Power 120V AC Mount 5/8 inch Weight 3.46 lbs. (1.5 kg) Dimensions 8.75˝ x 8.75˝ x 6˝ diameter (including mount) (22 x 22 x 15 cm) Watts 300 Color Temperature 3100° K Average Life 100 hours Approx.
Warranty One-Year Limited Warranty This IMPACT product is warranted to the original purchaser to be free from defects in materials and workmanship under normal consumer use for a period of one (1) year from the original purchase date or thirty (30) days after replacement, whichever occurs later.
