Industrial HMI Touch Panel Solutions
Onboard TI OMAP 600 MHz
7” 300 Nits WVGA LED Backlight
Fanless Operation
256MB Flash ROM, Max. 256MB DDR
Slim Design: 45 mm
WiFi (Optional)

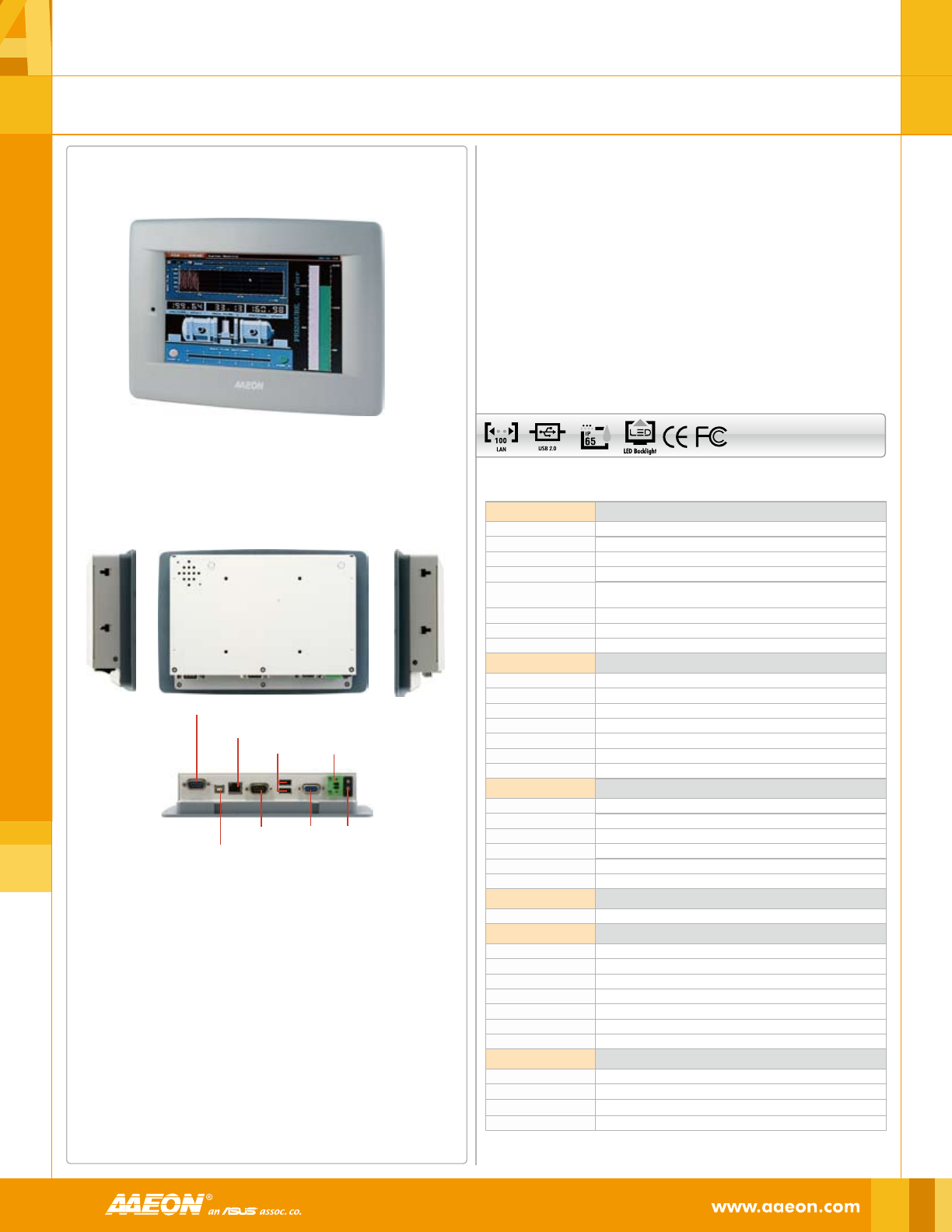

7” WVGA HMI Touch Panel Computer With Onboard TI OMAP 600 MHz Processor
System
Processor TI OMAP 600 MHz
System Memory LP DDR 128 MB RAM (up to 256MB)
LCD/CRT Controller Integrated in TI Processor
Ethernet 10/100Base-TX, RJ-45 x 1
I/O Port
RS-232 x 1,RS-232/422/485 x 1, USB2.0 x 2, USB client x 1, LAN x 1, VGA
out x 1
Storage Disk Drive 256 MB NAND FLASH on board /SD card x 1 Expansion
Expansion Slot Mini Card x 1 (USB interface only)
OS support Windows® CE 6.0 , Linux
Mechanical
Construction IP-65, NEMA 4 rugged protection, plastic front bezel
Color Bezel: Patone 5425C , Rear cover: RAL 7040
Mounting VESA 75/ Panel
Dimension 8.8” (W) x 6.14” (H) x 1.77” (D) (225mm x 156mm x 45mm)
Carton Dimension 11.4” (W) x 7.48” (H) x 9’” (D) (290mm x 190mm x 230mm)
Gross Weight 4.41 lb (2 kg)
Net Weight 1.54 lb (0.7 kg)
Environmental
Operating Temperature 32°F ~ 122°F (0°C ~ 5C) (Ambient with airflow)
Storage Temperature -4°F ~ 140°F (-20°C ~ 60°C)
Storage Humidity 5%~90% @ 40°C; non-condensing
Vibration 3 g rms/ 5~ 500Hz/ operation – With SD
Shock 20 G peak acceleration (11 msec. duration)
EMC CE/FCC class A
Power Supply
DC input DC 12V w/ 2-pin terminal block
LCD
Display Type 7" TFT-LCD
Max Resolution 800 x 480
Max. Colors 262K colors
Luminance 300 cd/m
2
Viewing Angle 140°(H), 120°(V)
Back Light LED
Back Light MTBF (hours) 30,000
Touchscreen
Type 5-wire, Analog Resistive
Resolution 2048 x 2048
Light Transmission >80%
Life time 35 Million activations
AHP-1070
10/100Base-TX
USB x 2
VGA Power On/Off
RS-232/422/485
RS-232
USB Client
DC 12V input
