Calibrate and Set Up Sensors

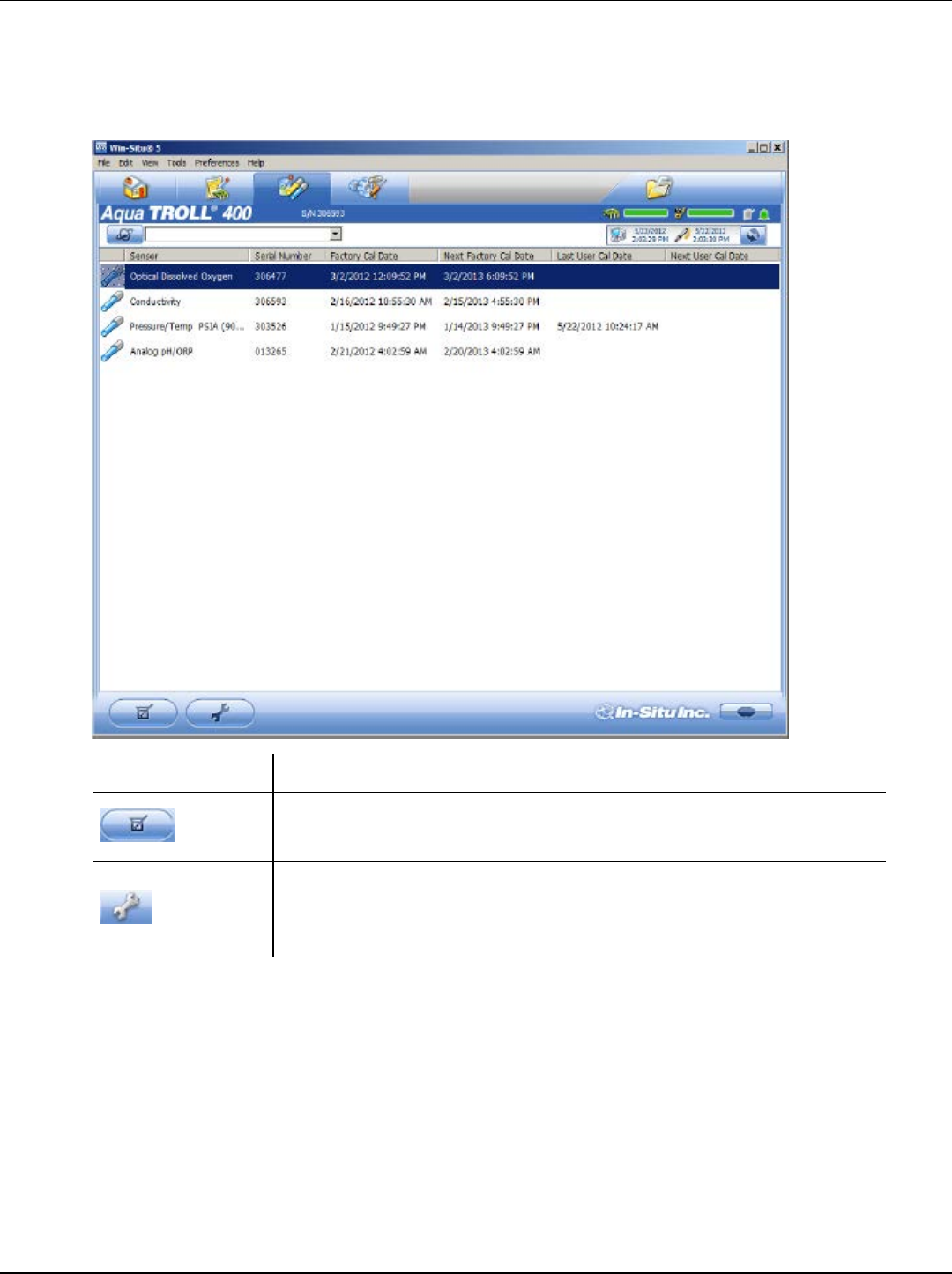

The Sensors tab allows you to view the sensors that are available on the instrument.
From this tab you can access calibration Wizards and sensor setup options. You can
also view sensor serial numbers, factory calibration dates, and user calibration dates.
Screen Element Purpose
The Calibration button starts the Calibration Wizard for the
selected sensor.
This button opens the setup options for the selected sensor.
These options include selecting parameters, setting units, and
setting sentinel values.
When you click on the sensor you want to calibrate or configure, the Calibration button
and the Sensor Setup buttons become active.
