800-446-1500 35 www.in-situ.com

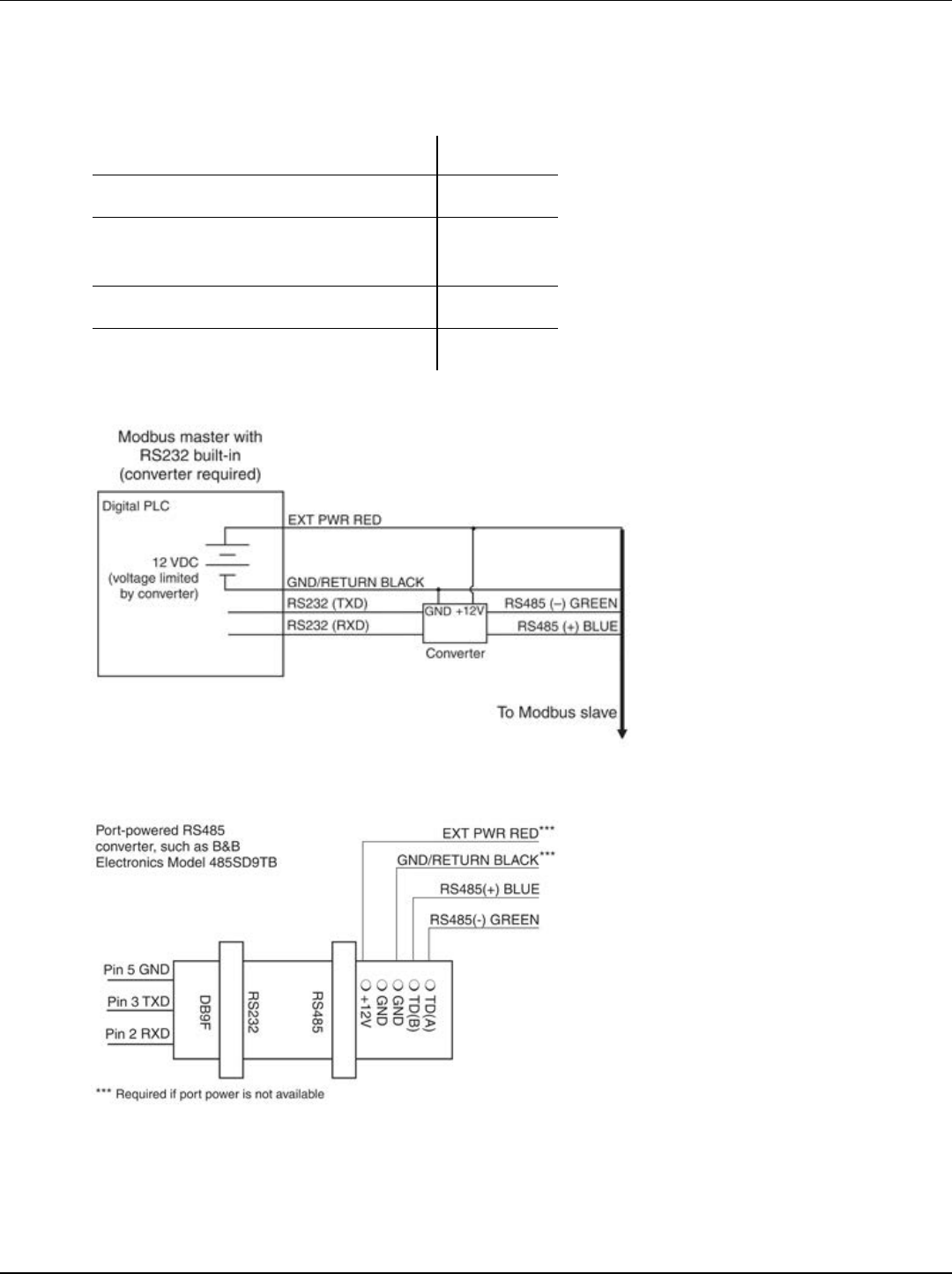

Modbus Master RS232 Wiring Diagram (Converter Required)
Cable length between Master and Slave must not exceed 1,219 m (4,000 ft). Cable
length between Master and Converter must not exceed 6 m (20 ft).
Signal Color
Ground/Return Black
External Power (12-36 VDC,
voltage limited by converter)
Red
RS485 (-) Green
RS485 (+) Blue
