Projector User Manual

SP8600 User's Manual

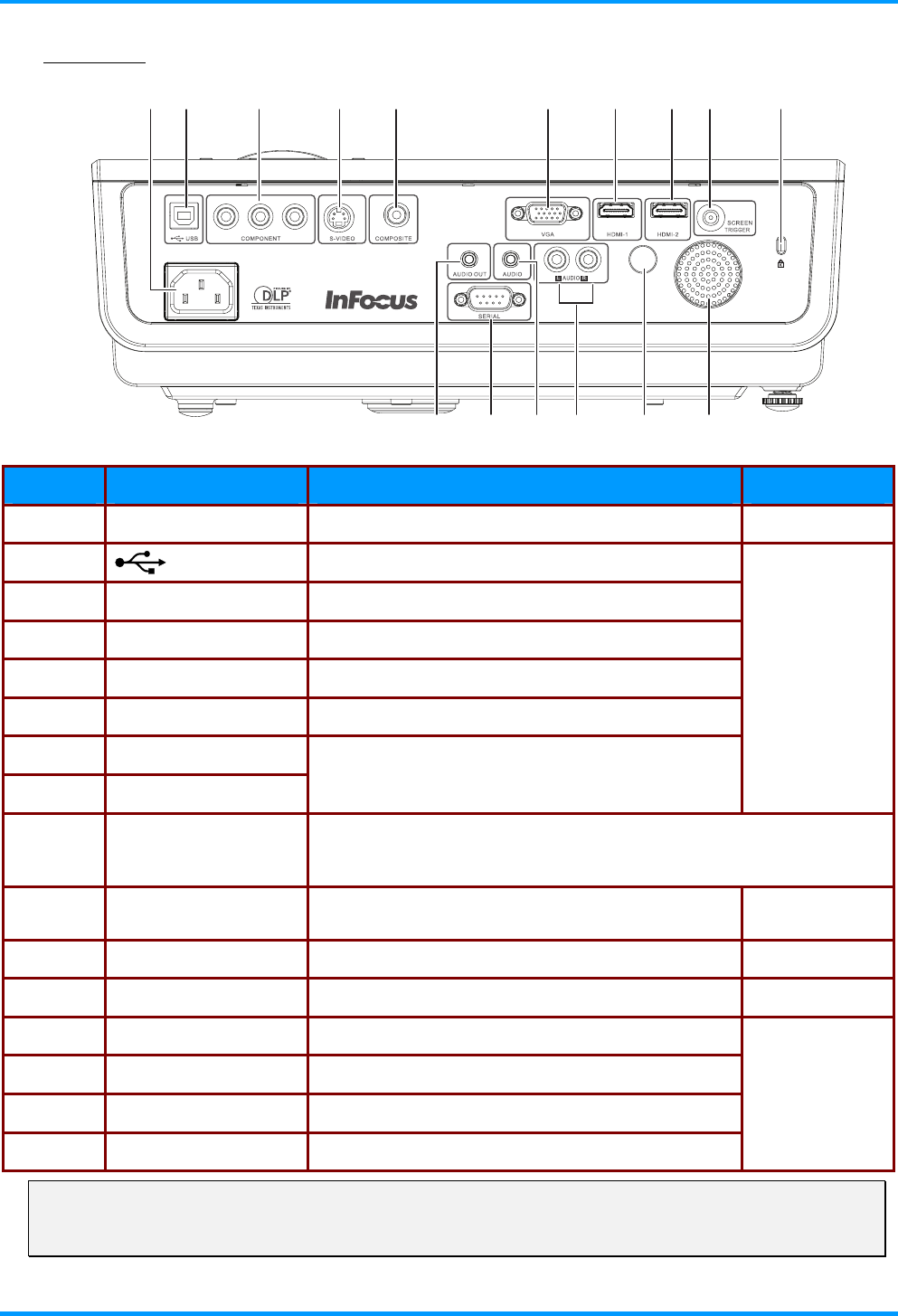

Rear view
12 3 4 5 6 7 8 9 10
111213141516
ITEM LABEL DESCRIPTION SEE PAGE:
11
1.
AC IN Connect the power cord
2.
Connect a USB cable from a computer
(USB)
3.
COMPONENT Connect a component video enabled device
4.
S-VIDEO Connect a S-VIDEO cable from a video device
– 4 –
5.
COMPOSITE Connect a COMPOSITE cable from a video device
10
6.
VGA Connect a RGB cable from a computer.
7.
HDMI – 1
Connect a HDMI cable from a HDMI device
8.
HDMI – 2
When connected to the screen through a commercially available cable, the
screen deploys automatically on start up of the projector. The screen retracts
when the projector is powered off.
9.
SCREEN TRIGGER
Secure to permanent object with a Kensington® Lock
system
33
10.
Kensington Lock
10
11.
Speaker Outputs audio sound
6
12.
IR receiver Receive IR signal from remote control
13.
AUDIO (L and R) Connect the audio cables from an audio device
14.
AUDIO Connect an audio cable from the input device
15.
SERIAL Connect a serial port cable for remote control
10
16.
AUDIO OUT Connect an audio cable for audio loop through
Note:
If your video equipment has various input sources, it is recommended to connect in priority of
HDMI, component, S-Video, Composite for better picture quality.
