Connecting Input Devices
A PC or notebook computer and video devices can be connected to the projector at the same time. Video
devices include DVD, VCD, and VHS players, as well as movie camcorders and digital still cameras.
Check the user manual of the connecting device to confirm it has the appropriate output connector.
I
H
LK
J

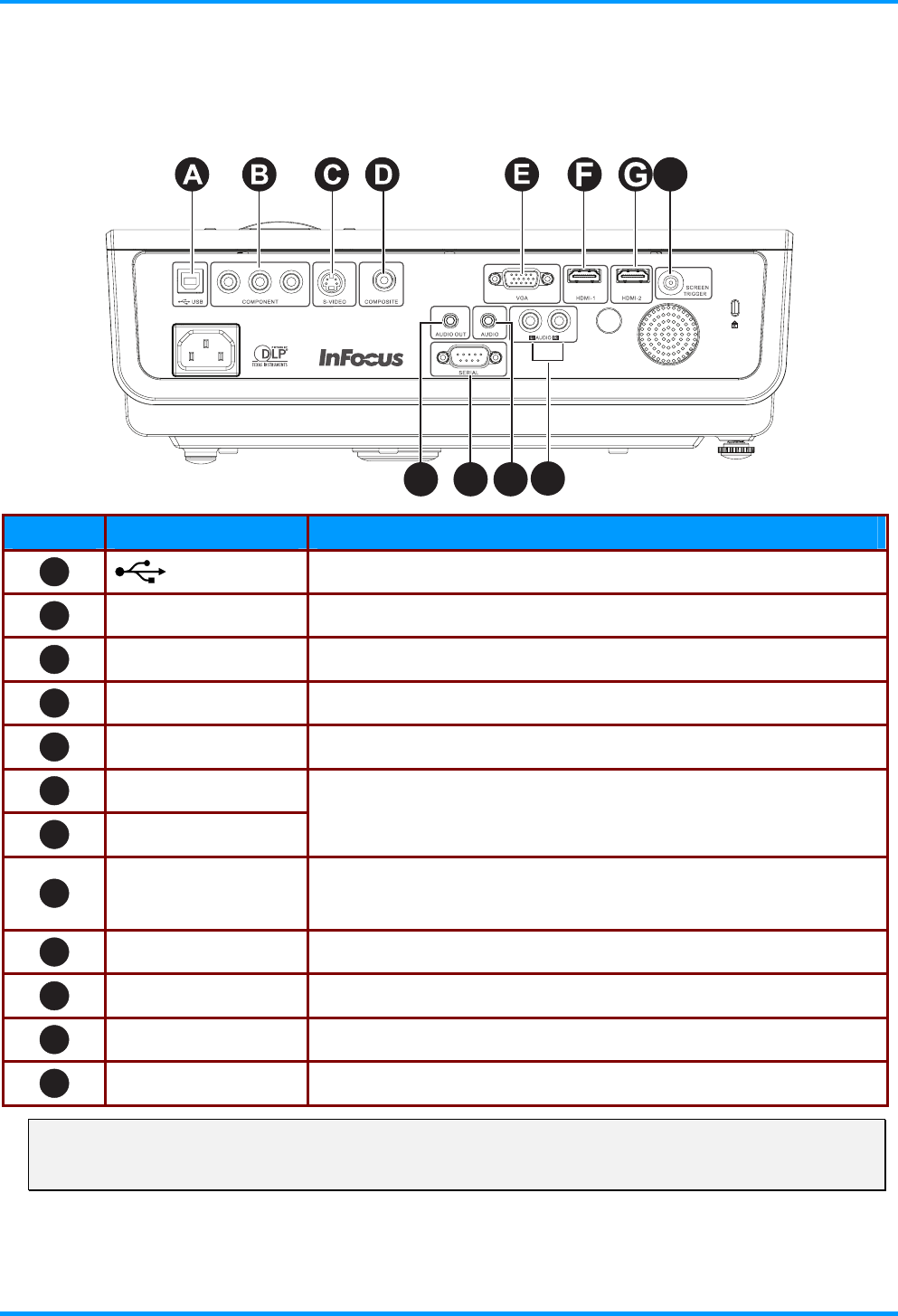

ITEM LABEL DESCRIPTION
A
Connect a USB cable from a computer
(USB)
B
COMPONENT Connect a component video enabled device
C
S-VIDEO Connect a S-VIDEO cable from a video device
D
COMPOSITE Connect a COMPOSITE cable from a video device
E
VGA Connect a RGB cable from a computer.
F
HDMI – 1
Connect a HDMI cable from a HDMI device
G
HDMI – 2
When connected to the screen through a commercially available cable, the
screen deploys automatically on start up of the projector. The screen retracts
when the projector is powered off.
H
SCREEN TRIGGER
I
AUDIO (L and R) Connect audio cables from an audio device
J
AUDIO Connect an audio cable from the input device
K
SERIAL Connect a serial port cable for remote control
L
AUDIO OUT Connect an audio cable for audio loop through
Warning:
As a safety precaution, connect the projector to all the source devices BEFORE connecting the
power cords to powered outlets.
