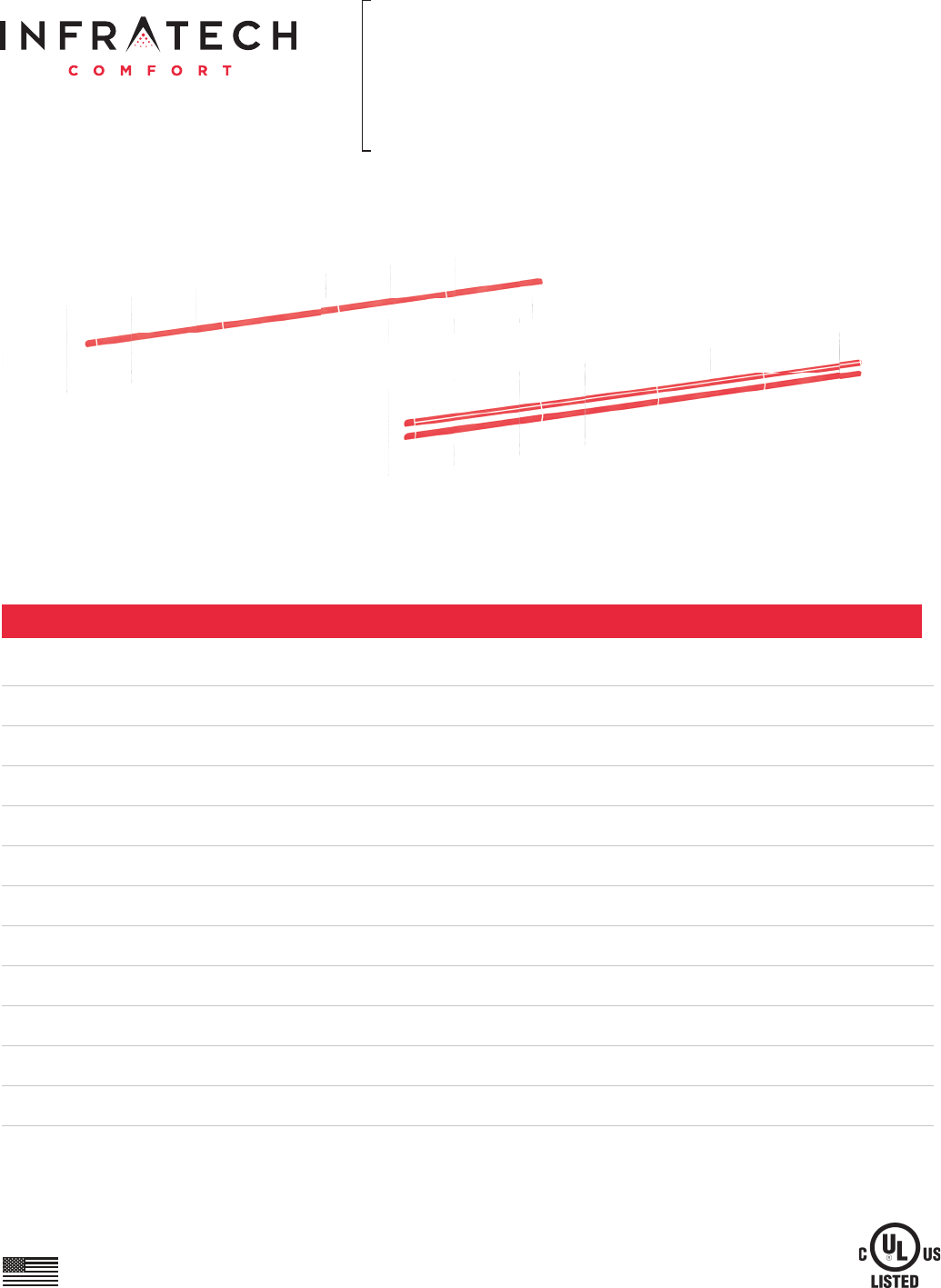

INSTALLATION USE & CARE MANUAL ALL WEATHER C-SERIES AND CD-SERIES QUARTZ TUBE ELECTRIC INFRARED RADIANT HEATER TABLE OF CONTENTS Warnings 2 Installation Instructions 3 Wiring Instructions 3 Mounting Instructions 4 Replacement Element Installation 5 Replacement Parts 5 Heater Coverage Areas 6 General Notes 6 Maintenance Instructions 6 Trouble Shooting 7 Location Suggestions 7 Warranty 8 PROUDLY MADE IN USA SAVE THIS MANUAL FOR FUTURE REFERENCE
WARNINGS READ ALL INSTRUCTIONS BEFORE USING HEATER. Unit may be a source of possible shock. NEVER attempt to service heater without disconnecting its power source. Source of possible ignition. WARNING: If not installed, operated and maintained in accordance with the manufacturer’s instructions, this product can expose you to chemicals including nickel, which are known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov.
INSTALLATION INSTRUCTIONS This heater must be permanently installed and hard wired by a licensed electrician in accordance with local electrical codes. Assembly procedure must be performed with no electrical power to unit. Step 1: Check UL/CUL/CE label on heater for proper voltage. Step 2: Follow supplied wiring instructions. (See wiring instructions below) Step 3: Heater must be mounted with reflector angled down.
MOUNTING INSTRUCTIONS These models may be chain or bracket mounted to any ceiling or horizontal surface. Installation must be such that 18" (45.7cm) minimum clearance is maintained around the heater on all four sides and 36" (91.4cm) directly in front. A minimum of 6" (15.24cm) of clearance provided by mounting brackets is required behind the plane of the face. Heater can be hung using chains or custom brackets. Heater must be level, but can be rotated around its horizontal axis. 6" (15.
REPLACEMENT ELEMENT INSTALLATION (VISIT INFRATECH-USA.COM FOR VIDEO INSTRUCTIONS) Disconnect the power at the breaker. Remove the grill by grasping it in the middle, flex grill up and lift it off. Unscrew and remove both end reflectors. Unhook element clips at each end of the heater and remove nuts from end of element to remove the existing quartz tube. Carefully install the new element. Remove one nut from end of the new element.
SINGLE ELEMENT AREAS COVERED (FEET) MODEL WATTS MOUNTING HEIGHT AVERAGE COLD PROTECTED C-1512 SS 1,500 6' - 7' (1.8m - 2.4m) 5' x 5' (1.5m x 1.5m) 3' x 3' (0.91m x 0.91m) 7' x 7' (2.1m x 2.1m) C-2024 SS 2,000 7' - 8' (2.1m - 2.7m) 6' x 6' (1.8m x 1.8m) 4' x 4' (1.2m x 1.2m) 8' x 8' (2.4m x 2.4m) C-2524 SS 2,500 7' - 8' (2.1m - 2.7m) 7' x 7' (2.1m x 2.1m) 5' x 5' (1.5m x 1.5m) 9' x 9' (2.7m x 2.7m) C-3024 SS 3,000 7' - 9' (2.1m - 2.7m) 8' x 8' (2.4m x 2.4m) 6' x 6' (1.8m x 1.
TROUBLESHOOTING PROBLEM WHAT TO DO Heater does not glow • Check supply voltage to confirm it matches voltage of heating element. Low heat output • A 240V element connected to 110V or 208V will warm, but not glow orange or generate sufficient heat for typical applications (Matching your voltage is extremely important). If element is visibly orange, but there is insufficient heat, refer to the areas covered with respect to conditions and mounting heights.
LIMITED PRODUCT WARRANTY Model #: Date of Purchase: Serial #: Purchased From: Thank you very much for purchasing a INFRATECH Quartz Tube Electric Heater. We have designed this heater to provide you and your family with many years of great outdoor experiences. Please fill in the Model and Serial number as well as date of purchase in the areas indicated above. Please save this information for future reference.
