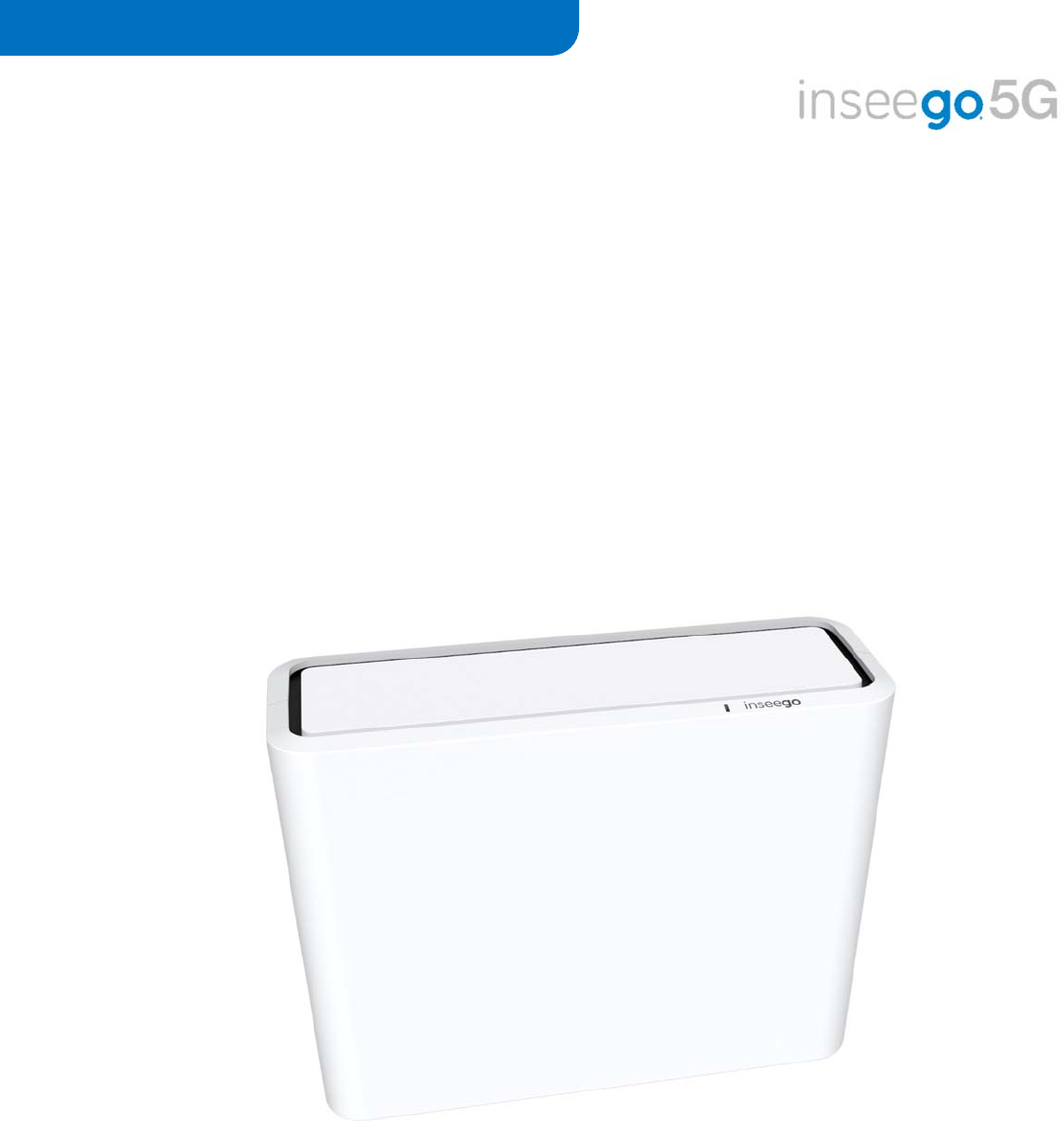

USER GUIDE 5G FG2000 Indoor Router
INSEEGO COPYRIGHT STATEMENT © 2020 Inseego Corp. All rights reserved. Complying with all copyright laws is the responsibility of the user. Without limiting the rights under copyright, no part of this document may be reproduced, stored in or introduced into a retrieval system, or transmitted in any form or by any means (electronic, mechanical, photocopying, recording or otherwise), or for any purpose without the expressed written permission of Inseego Corp.
Contents Introduction and Getting Started ........................................................................................................................................ 5 Overview .................................................................................................................................................................................. 6 System Requirements .........................................................................................................................
Customer Support Tab ............................................................................................................................................... 51 Advanced Settings .................................................................................................................................................................. 52 Overview .......................................................................................................................................................
Introduction and Getting Started Overview Ports and Buttons Indicator LEDs Getting Started Caring for your Router 5G FG2000 INDOOR ROUTER USER GUIDE 5
Overview The 5G FG2000 Indoor Router is a wireless device that delivers Internet service. The FG2000 provides network and Internet connectivity via Wi-Fi and Ethernet. Connect laptops, tablets, e-readers, gaming consoles and more. Inside the box you will find a 5G FG2000 Indoor Router, a Quick Start Guide, three AA batteries, an Ethernet cable, and an AC wall adapter power supply (in two pieces). System Requirements Compatible with all major operating systems.
Indicator LEDs The top of the 5G Indoor Router has an indicator LED. It changes colors and either blinks or glows solid to communicate current states for the device.
Getting Started This section provides instructions for getting your 5G FG2000 Indoor Router up and running, as well as reset and support information. Installing a SIM Card Your SIM card is a small rectangular plastic card that stores your phone number and important information about your wireless service. The 5G Indoor Router supports only Nano SIM cards. If the device SIM is NOT already inserted into this device, select the correct SIM for this device.
Installing Batteries Your 5G Indoor Router uses AA batteries in the bottom of the router for the initial process of identifying a location. NOTE: You cannot run your FG2000 on batteries alone for Internet use, they are only used for identifying the best location for your Indoor Router with the Inseego Connect App. To install the batteries: 1. Slide the battery cover to the left and insert a fingernail at the edge to lift it out of place. 2. Insert three AA batteries following the diagrams on the router.
Powering On Once you have identified a location for your 5G Indoor Router, turn it on with the AC wall adapter power supply: 1. Attach the power cord to the charger (power cord comes in two pieces). WARNING! Use only the AC wall adapter power supply that came with the 5G Indoor Router. Unapproved AC wall adapter power supplies could cause the router to overheat or catch fire, resulting in serious bodily injury, death, or property damage. 2. Plug the power cord into the power port on the back of the router.
4. When prompted, enter the password. NOTE: The default password is on the bottom of the router. Your Wi-Fi capable device is now connected to the Internet. Connecting Devices with WPS Wi-Fi Protected Setup (WPS) allows compatible devices to connect to a Wi-Fi network on your 5G Indoor Router without having to manually enter the password. To connect a device using WPS: 1. Push the WPS button on the router. 2. Follow the guidelines for the device you want connect.
Connecting Devices with Ethernet You can connect wired devices such as laptops, printers, and gaming consoles via Ethernet. To connect Ethernet devices: 1. Plug one end of an Ethernet cable into one of the Ethernet ports on the router. NOTE: To connect wired devices for Internet connection, use the LAN1, LAN2, or 5Gbps LAN ports (5Gbps LAN provides Internet throughput to up to 5Gbps, depending on the maximum throughput of the device you are connecting to).
Connecting to the Web UI Once your 5G Indoor Router is connected to a device that supports Web browsing, you can use the Web User Interface to customize settings, change your password, and access information. On a device connected to the 5G Indoor Router, open any Web browser and go to http://192.168.1.1 . Select Sign In (in the top-right corner of the screen), and enter the Admin password printed on the bottom of the 5G Indoor Router.
Software Configuration Overview Admin Password Managing Cellular Data Usage Managing Wi-Fi Settings Managing Connected Devices Managing Settings Managing VPN Managing Parental Control Viewing Info About the Router Getting Help 5G FG2000 INDOOR ROUTER USER GUIDE 15
Overview Use the 5G FG2000 Indoor Router Admin Web User Interface to manage your router experience. With it, you can: Change your SSID and/or passwords (both admin and user). View connected devices. Check router status and data usage. Set up a guest network. View all currently connected devices. Control access by device. On a computer or device connected to your FG2000, open any Web browser and go to http://192.168.1.1.
Side Menu Each subscreen in the 5G Indoor Router Web User Interface includes a menu on the left, which you can use to return to the Home page or jump to other pages. The current page is indicated by a blue bar. Getting Help Select the question mark (?) in the upper right hand corner of a page to view Help on that topic.
Admin Password The Admin password is what you use to sign into the 5G Indoor Router Web UI. A default Admin password is assigned to each individual device and is printed on the bottom of the router. You can change the Admin password to something easier to remember, and set up a security question that will help you securely recover your password if you forget what you changed it to.
Managing Cellular Data Usage You can monitor and manage cellular data usage on your 5G Indoor Router using the Cellular Data Usage page. To manage or view cellular data usage, select from any Home page panel and then select Cellular Data Usage from the Web UI side menu. The Cellular Data Usage page appears. Cellular Data Usage Page Use the Cellular Data Usage page to view details and manage your FG2000 data usage.
Managing Wi-Fi Settings Your 5G Indoor Router offers primary and guest networks for accessing the Internet over Wi-Fi. Each network can be accessed over two bands: 2.4 GHz and 5 GHz. On the Web UI Home page, the Wi-Fi panel shows the current name (SSID) and password of the primary and guest networks. To manage settings for these networks, select from the Home page Wi-Fi panel (or select Wi-Fi from the Web UI side menu).
Settings Tab You can use the default values as they appear on this tab, or can adjust them for your environment. Wi-Fi Use the Allow Wi-Fi devices to connect to this router slider to turn Wi-Fi on or off. This selection affects primary and guest networks. NOTE: If Wi-Fi is off, the only way to connect devices to the 5G Indoor Router is with an Ethernet cable. WPS Wi-Fi Protected Setup (WPS) allows compatible devices to connect to a Wi-Fi network without having to manually enter the password.
Band Selection Each network can be accessed over two bands: 2.4 GHz and 5 GHz: The 2.4 GHz band is supported by all devices with Wi-Fi and should be used by devices that are a few years old or older. This band passes through walls better and propagates over longer distances, so it may have a longer range. The 5 GHz band is best for newer devices. It offers better throughput, reduced interference and faster data speeds, but does not pass through walls as well as the 2.4 GHz band.
Primary Network Tab Use these settings to connect initially to the primary Wi-Fi network or change primary network information. Connected devices must use the Wi-Fi settings shown on this screen. NOTE: If you change these settings, existing connected devices may lose their connection. Settings Primary network name (SSID): Enter a primary network name (SSID) to set up or change the primary network name. The name can be up to 32 characters long.
Password: Enter a Wi-Fi password, or you can use the Generate new password button. Important: It is critical that you change the password from the default and use a different password from your Admin password to keep the device and your network secure. Generate new password: This button inserts a strong random password in the Password field. You can click the eye icon to view the password.
Guest Network Tab The Wi-Fi guest network allows you to segregate traffic to a separate network rather than share access to your Wi-Fi primary network. Use settings on this tab to set up or change Wi-Fi guest network information. Connected devices must use the Wi-Fi settings shown on this screen to connect to the guest 5G Indoor Router Wi-Fi network.
Password: Enter a Wi-Fi password, or you can use the Generate new password button. Important: It is critical that you change the password from the default and use a different password from your Admin or primary network password to keep the device and your network secure. Generate new password: This button inserts a strong random password in the Password field. You can click the eye icon to view the password.
Managing Connected Devices On the Web UI Home page, the Connected Devices panel lists the networks currently connected to your 5G Indoor Router along with the number of connected devices for each network. To manage connected devices, select from the Home page Connected Devices panel (or select Connected Devices from the Web UI side menu).
Connected Devices Page This page provides details about each device connected to the 5G Indoor Router and allows you to edit how device names appear in the Web UI. You can also block or unblock a device from Internet access. Connected This table lists all devices connected to the 5G Indoor Router: Connection: An icon indicates the connection type (Wi-Fi or Ethernet) for each device. (You can hover over the icon to read the type of connection.
Name: To change how the device name appears in this Web UI, enter a different name. NOTE: This only changes the device name in the FG2000 Web UI. IPv4: The IP address of the connected device. MAC Address: The MAC Address (unique network identifier for this connected device). Link Local: The Link-Local IPv6 address if the connected device supports IPv6. Click the minus icon (-) to collapse the row. Blocked This section lists all devices blocked from connecting to the 5G Indoor Router.
Managing Settings On the Web UI Home page, the Settings panel shows Port Filtering and the date and time of the last system update. To configure more system settings, select from the Web UI side menu).
Preferences Tab This tab allows you to change how dates, time, and numbers are displayed in the FG2000 Web UI. NOTE: These preferences affect packets sent to remote servers. For example, if you select a 24 hour time format, the Web UI, and any packets reporting time somewhere else, will display time in 24 hour format. Language: Select a language for the Web UI. Date format: Select the date format to be used throughout the Web UI (mm/dd/yyyy or dd/mm/yyyy).
Software Update Tab Software updates are delivered to the 5G Indoor Router automatically over the mobile network. This tab displays your current software version, last system update information, software update history, and allows you to check for new software updates. Current Software Software version: The version of the software currently installed on your 5G Indoor Router. Check for New Software Update Checked for update: The date and time the FG2000 last checked to see if an update was available.
Backup and Restore Tab Use this tab to back up current 5G Indoor Router settings to a file on your computer, restore (upload) a previously-saved configuration file, reset the router to factory defaults, or restart the router. Backup To back up current 5G Indoor Router settings to a file on your computer, enter your Admin password in the Admin password field. The default Admin password is printed on the bottom of the router.
Click the Download button. The file is automatically downloaded to the default Downloads folder on the device connected to the Admin Web UI. This configuration file contains all settings for your 5G Indoor Router. NOTE: The backup file cannot be edited or viewed on the downloaded system or on any other device. This file can only be restored for this model of 5G Indoor Router, and settings can only be viewed or changed using the Web UI.
GPS Tab The 5G Indoor Router incorporates a GPS receiver. The GPS receiver can determine your current location. Use this tab to enable GPS, view current location information, and to enable GPS streaming to devices with the GPS over Wi-Fi feature. GPS Settings Enable GPS: This setting enables or disables the GPS radio on your 5G Indoor Router. When the ON/OFF slider is ON, the device acquires GPS and makes GPS location data available on this page. A GPS Agreement appears, click Confirm to proceed.
Managing VPN The 5G Indoor Router allows you to establish secure connections to remote networks over a public network using VPN. You can either create IPSec VPNs or enable OpenVPN. To set up VPN, select > from any Home page panel and then select VPN from the Web UI side menu. The VPN page includes two tabs: IPSec VPN OpenVPN IPSec VPN Tab The 5G Indoor Router allows you to create IPSec VPNs to establish secure connections to remote networks over a public network.
Add New VPN Tunnel: Step 1 out of 5 General Settings Start tunnel — Select whether to start the tunnel automatically upon start up or manually. Enable tunnel —Check this box to enable the tunnel. Tunnel name — Enter a unique name to identify this VPN. Local identity — Enter a unique name to identify the local point of the tunnel. Remote identity — Enter a unique name to identify the remote point of the tunnel.
Add New VPN Tunnel: Step 3 out of 5 IKE Phase 1 Key lifetime: The lifetime of the phase 1 key, in seconds. Select desired items from each column. NOTE: Each phase should support at least one matching option in each column. For example, if Phase 1 on this page is configured to support Hash SHA2 512, SHA2 384, and SHA2 256, then at least one of those selections must be selected in Phase 2 on the next page in order to be a common Hash.
OpenVPN Tab You can configure and enable OpenVPN with your 5G Indoor Router. If OpenVPN is connected, there is no need for devices connected to the router to use their own OpenVPN client. NOTE: When an OpenVPN connection is established, Port Filtering and Port Forwarding settings are not effective, as traffic from all connected devices goes through the OpenVPN tunnel. Auto-connect VPN: Use the ON/OFF slider to enable or disable auto-connect for the OpenVPN connection.
Managing Parental Control Parental controls in the 5G FG2000 Indoor Router Web UI allow you to control Internet access to specific devices and view search history. To manage parental controls, select from the Home page Parental Control panel (or select Parental Control from the Web UI side menu).
Profile Tab Parental controls in the FG2000 Web UI allow you to control Internet access to specific devices. You can set up multiple profiles for Internet access on the Profile tab and assign them to individual connected devices on the Profile Assignment tab. You can view search history on the Search History tab. Use the Profile tab to create and manage profiles that determine when devices can access the Internet through your 5G Indoor Router. Add New Profile: Select this button to create a new profile.
Profile Name: Enter a name for the profile. Block URL: Enter a URL you want to block for this profile and click Add. Repeat for additional URLs. Block PORT: Enter a port number you want to block for this profile and click Add. Repeat for additional ports. URL Search History: Check the box if you want search history during this profile available for display on the Search History tab. Internet Accessible Time: Set the start and end times for the days you want to allow Internet access for this profile.
Profile Assignment Tab Use this tab to assign profiles created on the Profile tab to individual connected devices, allowing you to determine when specific devices can access the Internet through your 5G Indoor Router. NOTE: You must first create a profile on the Profile tab. Add profile assignment: Select this button to assign a profile to devices. The Add profile assignment dialog box appears. Profile: Use the drop-down to select a profile.
Search History Tab Use this tab to view Internet search history for devices connected through your 5G Indoor Router. NOTE: You must first create a profile on the Profile tab and check the URL Search History check box. Then you must assign the profile to a device on the Profile Assignment tab. You can view all the URLs the selected device visited and the number of visits for each URL for the past 15 days. Select Clear history to clear the displayed search history.
Viewing Info About the Router On the Web UI Home page, the About panel shows current connection status, the amount of time connected, and the amount of data transmitted and received. To view more detailed information about your 5G Indoor Router and its use, select page About panel (or select About from the Web UI side menu).
General Status Tab Use the General Status tab to view general Internet connection and system information. General Connection status: The current status of the 5G Indoor Router connection. Session connection time: The amount of time that has elapsed since the connection for the current session was established. Active interface: The interface that is active (Ethernet WAN, Cellular WAN, or None). Session data Tx: The amount of data transmitted for the current session.
System Status Tab Use this tab to view details about your system status. General Ethernet clients: The number of client devices connected by Ethernet. 2.4 GHz clients: The number of client devices connected at 2.4 GHz band. 5 GHz clients: The number of client devices connected at 5 GHz band.
Ethernet WAN Tab Use this tab to view details about your Ethernet WAN connection. IP4 IPv4 address: The Internet IP address assigned to the 5G Indoor Router. IPv4 subnet mask: The network mask associated with the IPv4 address. IPv4 gateway: The gateway IP address associated with the IPv4 address. IPv4 DNS: The Domain Name Server currently used by this device. IPv6 IPv6 Address: The IPv6 address assigned to the 5G Indoor Router.
Cellular WAN Tab Use this tab to view details about your cellular WAN connection. General Radio Access Technology: Indicates the current cellular data connection, for example, LTE. IMEI: The International Mobile Equipment Identity (IMEI) for this device. This is a 15 digit code used to uniquely identify an individual mobile device on a cellular network. The IMEI does not change when the SIM is changed. SIM Status: The status of the SIM card.
Getting Help On the Web UI Home page, the Help panel provides links to introductory help and support. To view more detailed help information, select the Web UI side menu).
Help Tab This page provides links to help topics for every page of the Admin Web UI and general topics useful for getting started with your 5G Indoor Router. Customer Support Tab Use the Customer Support tab for useful links and support information.
Advanced Settings Overview Using Advanced Settings 5G FG2000 INDOOR ROUTER USER GUIDE 52
Overview The Advanced Settings pages on the 5G Indoor Router Admin website are intended for users with technical expertise in the area of telecommunication and networking. WARNING! Changing the Advanced settings may be harmful to the stability, performance, and security of the 5G FG2000 Indoor Router. Using Advanced Settings When you select the Advanced tab on the Settings page, a warning message appears. If you click Continue, the Network tab of the Advanced Settings page appears.
LAN Tab This tab provides settings and information about the 5G Indoor Router’s local area network (LAN). The LAN consists of the router and all Wi-Fi and Ethernet connected devices. IPv4 IP address: The IP address for your 5G Indoor Router, as seen from the local network. Normally, you can use the default value. Subnet mask: The subnet mask network setting for the 5G FG2000 Indoor Router. The default value 255.255.255.0 is standard for small (class "C") networks.
Turn on DHCP server: This checkbox turns the DHCP Server feature on or off. This should be left checked. The DHCP server allocates an IP address to each connected device. NOTE: If the DHCP Server is turned off, each connected device must be assigned a fixed IP address. DHCP lease time: The number of minutes in which connected devices must renew the IP address assigned to them by the DHCP server. Normally, this can be left at the default value, but if you have special requirements, you can change this value.
WAN Tab Use this tab to configure and set the priority of each available WAN interface. Active WAN Interface: The current active WAN interface. Set WAN Interface Priority First Priority: Use the drop-down to select the WAN interface to have first priority (Cellular WAN or Ethernet WAN). WAN Interface Configuration You can defined up to three IP address to check if Internet WAN is active. Track IP 1 — The IP address of the host. This must be a stable Internet address.
Reliability — Sets the number of Track IPs that must respond to ping tests in order for the WAN interface to be considered active: 3 — If there is no response from any of the Track IPs, WAN interface is considered inactive. 2 — If there is no response from just one of the Track IPs, WAN interface is considered active. 1 — Only one of the Track IPs can be configured. Ping Count — Number of ping packets to send for each ping test. Ping Intervals — Time between two ping tests.
SIM Tab The SIM card in your 5G Indoor Router can be locked using a PIN. If the SIM card is locked, you must enter the PIN before connecting to the mobile network. Once entered, the PIN is remembered until the next shutdown. You may also need to provide the existing PIN to change a SIM. The default PIN is available from your service provider. Use this page to unlock your SIM or enter a SIM PIN. SIM PIN Status: The current status of the SIM card. Possible states include: Ready – No SIM PIN is needed.
Change SIM PIN: Use this button to change the SIM PIN. You must enter the current PIN, then enter the new PIN and confirm it. Click Save changes. Turn on SIM PIN Lock: Use this button to set the SIM so that entry of a PIN is required upon startup to connect to the mobile network. Enter the current PIN and click Save changes. The button will now display Turn off SIM PIN Lock.
Cellular Tab In most configurations, the 5G Indoor Router is used with a dynamic IP and SIM and the Access Point Name (APN) is available from the network, for example: internet. However, if you are on a private network, you may need to set the APN on this tab for the network to communicate with the router. Network Selection Allow device to connect to the mobile networks: Use the ON/OFF slider when necessary to turn off cellular data and prevent access to the mobile network.
Firewall Tab The 5G Indoor Router firewall determines which Internet traffic is allowed to pass between the router and connected devices and protects your connected devices from malicious incoming traffic from the Internet. The firewall cannot be turned off. Use the Firewall tab to adjust the general security level of the firewall, designate a specific device to receive all traffic, and set up specific firewall rules.
DMZ DMZ allows the connected device specified as the DMZ IP address (Destination IP address) to receive all traffic that would otherwise be blocked by the firewall. NOTE: Allowing DMZ may assist some troublesome network applications to function properly, but the DMZ device should have its own firewall to protect itself against malicious traffic. Allow DMZ: Check this box to allow DMZ.
MAC Filter Tab The MAC filter allows only selected devices to access the 5G Indoor Router primary Wi-Fi network. By default, MAC filter is turned off. Use this tab to turn the MAC Filter on and specify device access. NOTE: The MAC filter has no effect on devices connected to the guest Wi-Fi network or devices connected via Ethernet. MAC Filter To use the MAC filter, select the device(s) from the device list that you want to be allowed to connect to the primary network and move the ON/OFF slider to ON.
Device List This list includes all devices currently connected to the router, except those connected via Ethernet. Add new device: Use this button to add a device to the device list, then enter the device name, MAC address, choose whether to select the MAC Address Filter checkbox, and click Save changes. To delete a device from the list, select its Delete checkbox and click Save changes. To discard any unsaved changes and refresh the list, click Refresh list and Confirm.
Port Filtering Tab Port Filtering allows you to block outgoing Internet connections and permit only selected applications to access the Internet. Traffic is identified by port numbers. Some applications are pre-defined. You can define additional applications if you know the details of the traffic used and generated by the applications. NOTE: You can also view the current Port Filtering setting (ON/OFF) in the Settings panel on the Web UI Home page.
Applications Select the applications you want to be able to access the Internet and click Save changes. The following table provides port numbers and protocol information for each port filtering application listed.
Custom Applications You can define up to ten custom applications. Add custom application: Use this button to add a new row to the custom application list. On: Check this box if you want the new application to be able to access the Internet. Application Name: Enter a name for the custom application. Start Port: Enter the beginning of the range of port numbers used by outgoing traffic for the custom application being added.
Port Forwarding Tab Port Forwarding allows incoming traffic from the Internet to be forwarded to a particular device connected to your Wi-Fi network. Normally, the built-in firewall blocks incoming traffic from the Internet. Port forwarding allows Internet users to access any server you are running on your computer, such as a Web, FTP, or Email server. For some online games, port forwarding must be used in order for the games to function correctly.
Port Forwarding To turn on port forwarding, move the ON/OFF slider to ON. To turn off port forwarding, so that no inbound traffic is forwarded to a LAN client, move the slider to OFF. Applications Check the box next to each Port Forwarding application that you want to allow. To forward all inbound WAN traffic on a specific port to a single LAN client, enter the IP address of the target device in the Application IP Address field. Click Save changes.
Custom Applications You can add up to ten custom applications. Once defined, these applications can be turned on and off the same way as pre-defined applications. Add custom application: Use this button to add a new row to the custom applications list. On: Check this box if you want the application to be able to access the Internet (enabling port forwarding). Application Name: Enter a name for the custom application.
Troubleshooting and Support Overview Technical Support 5G FG2000 INDOOR ROUTER USER GUIDE 71
Overview When properly installed, the 5G Indoor Router is a highly reliable product. Most problems are caused by phones† or Ethernet devices connected to incorrect ports. Please refer to the labels next to the ports for proper connections. The following tips can help solve many common problems encountered while using the 5G Indoor Router. Make sure you are using the 5G Indoor Router in the correct geographic region. Ensure that your wireless coverage extends to your current location.
Product Specifications and Regulatory Information Product Specifications Regulatory Information Product Certifications and Supplier’s Declarations of Conformity Wireless Communications Limited Warranty and Liability Safety Hazards Proper Battery Use and Disposal 5G FG2000 INDOOR ROUTER USER GUIDE 73
Product Specifications Device Name: 5G Indoor Router Model: FG20003 Regulatory: FCC, CE Device Testing: WEEE, RoHS, REACH Dimensions: 9” x 3” x 6.8” (230 mm x 76 mm x 172.
Encrypted Configuration Backup/Restore Advanced Firewall Wi-Fi Security Wi-Fi Security (WPA/WPA2/WPA3) • Wi-Fi Protected Setup (WPS 2.
Regulatory Information Federal Communications Commission Notice (FCC – United States) FCC ID: PKRISGFG20003 Electronic devices, including computers and wireless modems, generate RF energy incidental to their intended function and are therefore subject to FCC rules and regulations. This equipment has been tested to, and found to be within, the acceptable limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
MODIFICATIONS: The FCC requires that you be notified that any changes or modifications made to this device that are not expressly approved by Inseego Corp. may void your authority to operate the equipment. NOTE: The Radio Frequency (RF) emitter installed in your modem must not be located or operated in conjunction with any other antenna or transmitter, unless specifically authorized by INSEEGO CORP. Inseego Corp.
Band Max Power Frequency LTE BAND B20 24 dBm 832-862 MHz LTE BAND B25 24 dBm 1850–1915 MHz LTE BAND B26 24 dBm 814–849 MHz LTE BAND B28 24 dBm 703–748 MHz LTE BAND B30 24 dBm 2305–2315 MHz LTE BAND B38 24 dBm 2570–2620 MHz LTE BAND B39 24 dBm 1880–1920 MHz LTE BAND B40 24 dBm 2300–2400 MHz LTE BAND B41 24 dBm 2496–2690 MHz LTE BAND B42 19.5 dBm 3400–3600 MHz LTE BAND B48 19.
The device is restricted to indoor use only when operating in the 5150 to 5250 MHz frequency range. AT EE IT PT BE FI LV RO BG FR LT SK HR DE LU SI CY EL MT ES CZ HU NL SE DK IE PL UK(NI) Please make sure the temperature for device will be 0° C to 45° C (32° F to 113° F). Product Certifications and Supplier’s Declarations of Conformity Product Certifications and Supplier’s Declarations of Conformity documentation may be consulted at Inseego Corp.
Limited Warranty and Liability THIS LIMITED WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY HAVE OTHER RIGHTS THAT VARY FROM STATE TO STATE (OR BY COUNTRY OR PROVINCE). OTHER THAN AS PERMITTED BY LAW, INSEEGO CORP DOES NOT EXCLUDE, LIMIT OR SUSPEND OTHER RIGHTS YOU MAY HAVE, INCLUDING THOSE THAT MAY ARISE FROM THE A PARTICULAR SALES CONTRACT.
Safety Hazards Do not operate the 5G Indoor Router in an environment that might be susceptible to radio interference resulting in danger, specifically: Areas where prohibited by the law Follow any special rules and regulations and obey all signs and notices. Always turn off the host device when instructed to do so, or when you suspect that it might cause interference or danger.
Proper Battery Use and Disposal IMPORTANT: In the event of a battery leak: - Do not allow the liquid to come in contact with the skin or the eyes. If contact has been made, wash the affected area with large amounts of water and seek medical advice. - Seek medical advice immediately if a battery has been swallowed. - Communicate the appropriate steps to be taken if a hazard occurs. Due to the transmission and reception properties of wireless communications, data occasionally can be lost or delayed.
Glossary 5G FG2000 INDOOR ROUTER USER GUIDE 83
Glossary 4G LTE —Fourth Generation Long Term Evolution. LTE is a standard for wireless data communications technology and an evolution of the GSM/UMTS standards. The goal of LTE is to increase the capacity and speed of wireless data networks using new DSP (digital signal processing) techniques and modulations that were developed around the turn of the millennium.
Gbps — Gigabits per second. The rate of data flow. HTTP —Hypertext Transfer Protocol. An application-level protocol for accessing the World Wide Web over the Internet. IEEE — Institute of Electrical and Electronics Engineers. An international technical/professional society that promotes standardization in technical disciplines. IMAP — Internet Message Access Protocol. An Internet standard protocol for accessing email from a remote server from email clients.
Port Forwarding — A process that allows remote devices to connect to a specific computer within a private LAN. Port Number — A 16-bit number used by the TCP and UDP protocols to direct traffic on a TCP/IP host. Certain port numbers are standard for common applications. Protocol — A standard that enables connection, communication, and data transfer between computing endpoints.
USSD — Unstructured Supplementary Service Data (USSD), also known as “Quick code” or “Feature code”, is a communications protocol used to send data between a mobile device and network service provider. VPN — Virtual Private Network. A secure private network that runs over the public Internet. Commonly used to connect to an office network from elsewhere. Wi-Fi — Any system that uses the 802.11 standard developed and released in 1997 by the IEEE.
