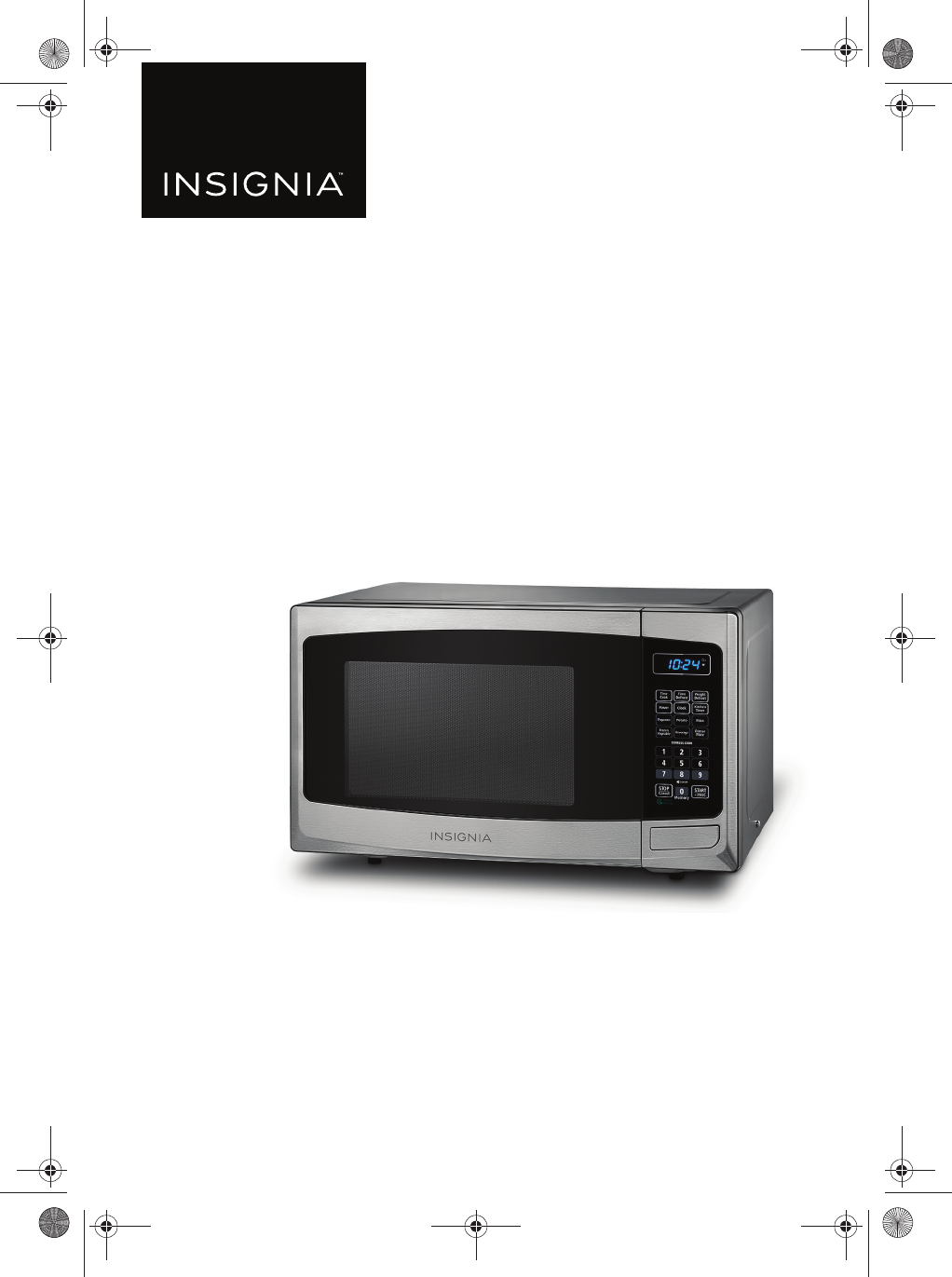

V2 FINAL FOR PRINT NS-MW09SS8_17-0526_MAN_V2_ENG.fm Page 1 Tuesday, June 27, 2017 10:11 AM USER GUIDE 0.9 Cu. Ft. Microwave Oven NS-MW09SS8 Before using your new product, please read these instructions to prevent any damage.
NS-MW09SS8_17-0526_MAN_V2_ENG.fm Page 2 Tuesday, June 27, 2017 10:11 AM Contents SAFETY INFORMATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 Cookware and cooking materials . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 Materials you can use. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 Materials to be avoided. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 Features . . . . .
NS-MW09SS8_17-0526_MAN_V2_ENG.fm Page 3 Tuesday, June 27, 2017 10:11 AM 0.9 Cu. Ft. Microwave Oven SAFETY INFORMATION PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY: 1 Do not attempt to operate this oven with the door open because this can result in harmful exposure to microwave energy. It is important not to defeat or tamper with the safety interlocks.
NS-MW09SS8_17-0526_MAN_V2_ENG.fm Page 4 Tuesday, June 27, 2017 10:11 AM NS-MW09SS8 ii) Remove wire twist-ties and metal handles from paper or plastic containers/bags before placing them in the oven. iii) If materials inside the oven ignite, keep the oven door closed. Turn the oven off and unplug the oven or shut off power at the fuse or circuit breaker panel. 5 6 7 8 9 10 11 12 13 14 15 16 17 18 iv) Do not use the oven cavity for storage purposes.
NS-MW09SS8_17-0526_MAN_V2_ENG.fm Page 5 Tuesday, June 27, 2017 10:11 AM 0.9 Cu. Ft. Microwave Oven iii) Do not use straight-sided containers with narrow necks. iv) After heating, allow the container to stand in the microwave oven for a short time before removing the container. v) Use extreme care when inserting a spoon or other utensil into the container.
NS-MW09SS8_17-0526_MAN_V2_ENG.fm Page 6 Tuesday, June 27, 2017 10:11 AM NS-MW09SS8 • • The extension cord must be a grounding-type 3-wire cord. The longer cord should be arranged so that it will not drape over the countertop or tabletop where it can be pulled on by children or tripped over unintentionally. RADIO INTERFERENCE 1 Operation of the microwave oven may cause interference to your radio, TV, or similar equipment.
NS-MW09SS8_17-0526_MAN_V2_ENG.fm Page 7 Tuesday, June 27, 2017 10:11 AM 0.9 Cu. Ft. Microwave Oven Materials you can use MATERIAL REMARKS Aluminum foil Use as shielding only. Small, smooth pieces can be used to cover thin parts of meat or poultry to prevent overcooking. Arcing can occur if the foil is too close to oven walls. The foil should be at least 1 inch (2.5 cm) away from oven walls. Browning dish Follow the manufacturer’s instructions. The bottom of the browning dish must be at least 3/16-in.
NS-MW09SS8_17-0526_MAN_V2_ENG.fm Page 8 Tuesday, June 27, 2017 10:11 AM NS-MW09SS8 MATERIAL REMARKS Plastic foam Plastic foam may melt or contaminate the liquid inside when exposed to high temperature. Wood Wood will dry out when used in the microwave oven and may split or crack. Features • • • • • • 900 Watts of power Auto cook setting Express cook setting LED display Child lock Power saving mode Package contents: • • • • 8 0.9 Cu. Ft. compact microwave oven Glass tray (10.6 in.
NS-MW09SS8_17-0526_MAN_V2_ENG.fm Page 9 Tuesday, June 27, 2017 10:11 AM 0.9 Cu. Ft. Microwave Oven Microwave oven # ITEM 1 2 3 4 5 6 7 DESCRIPTION Observation window Use to view the item being cooked. Safety interlock system Prevents the oven from operating when the door is open. Door assembly Protects you from exposure to excessive microwave energy. Use to set cooking times and enter other information as Control panel needed. Glass turntable Allows food to cook evenly.
NS-MW09SS8_17-0526_MAN_V2_ENG.fm Page 10 Tuesday, June 27, 2017 10:11 AM NS-MW09SS8 Control panel # ITEM DESCRIPTION 1 Display 2 3 Time Defrost Time Cook 4 Power In standby mode, displays the time. In cooking mode, displays cooking time, weight, and other information. Press this button, then enter the time you want for an item to defrost. Press this button, then enter the time you want for an item to cook.
NS-MW09SS8_17-0526_MAN_V2_ENG.fm Page 11 Tuesday, June 27, 2017 10:11 AM 0.9 Cu. Ft. Microwave Oven # ITEM DESCRIPTION Press to set the clock, then press the number buttons to enter the current time. Press to enter cook time, defrost time, clock time, and other 6 Number buttons information. Press to stop the cooking process. Press again to cancel the cooking operation. In standby mode, press for less than three seconds to cook in energy 7 STOP/Cancel saving mode.
NS-MW09SS8_17-0526_MAN_V2_ENG.fm Page 12 Tuesday, June 27, 2017 10:11 AM NS-MW09SS8 5 Plug your oven into a standard household outlet. Be sure the voltage and the frequency is the same as the voltage and the frequency on the rating label. Caution Do not mount your oven under a cabinet. • Do not install your oven over a range cooktop or other heat-producing appliance. If installed near or over a heat source, the oven could be damaged and the warranty would be voided.
NS-MW09SS8_17-0526_MAN_V2_ENG.fm Page 13 Tuesday, June 27, 2017 10:11 AM 0.9 Cu. Ft. Microwave Oven Using your microwave oven Understanding and setting the power level The following table shows the 11 power levels available. LEVEL 10 9 8 7 6 5 4 3 2 1 0 Power 100% 90% 80% 70% 60% 50% 40% 30% 20% 10% 0% Display PL10 PL8 PL7 PL6 PL5 PL4 PL3 PL2 PL1 PL0 PL9 1 Press Power once. The display shows “PL10” (the default power is 100%).
NS-MW09SS8_17-0526_MAN_V2_ENG.fm Page 14 Tuesday, June 27, 2017 10:11 AM NS-MW09SS8 3 Press Power once. The display shows “PL10” (the default power is 100%). 4 Press the number keys to adjust the power level. For example, press 5 to set the power level to 50%. 5 Press START/+30SEC. to start cooking. Notes • When setting the microwave, if the STOP/CANCEL button is pressed or if there is no operation within one minute, the oven goes back to the former setting automatically.
NS-MW09SS8_17-0526_MAN_V2_ENG.fm Page 15 Tuesday, June 27, 2017 10:11 AM 0.9 Cu. Ft. Microwave Oven Defrosting by time 1 Press Time Defrost. The display shows “dEF2.” 2 Press the number buttons to input the defrosting time you want. The time range must be between 00:01 and 99:99. 3 The default microwave power for Time Defrost is power level 3. If you want to change the power level, press Power once. The display shows “PL 3." 4 Press the number button of the power level you want. 5 Press START/+30SEC.
NS-MW09SS8_17-0526_MAN_V2_ENG.fm Page 16 Tuesday, June 27, 2017 10:11 AM NS-MW09SS8 Heating a dinner plate 1 Press Dinner Plate repeatedly until the size of the meal (in ounces) you want to heat shows on the display. The display cycles through “9.0”>”12.0”>”18.0” (oz.). 2 Press START/+30 SEC.. When the meal is heated, the buzzer sounds five times and the oven returns to standby mode. Heating pizza 1 Press Pizza repeatedly until the size of the pizza (in ounces) you want to heat shows on the display.
NS-MW09SS8_17-0526_MAN_V2_ENG.fm Page 17 Tuesday, June 27, 2017 10:11 AM 0.9 Cu. Ft. Microwave Oven Using multi-stage cooking Up to two stages can be used to cook your food. For example, you can defrost a meal, then cook it. In this example, the food will be cooked with 80% power for five minutes, then 60% power for 10 minutes. Note Auto cooking cannot be used with multi-stage cooking. 1 Put the item to be cooked into the oven and close the door.
NS-MW09SS8_17-0526_MAN_V2_ENG.fm Page 18 Tuesday, June 27, 2017 10:11 AM NS-MW09SS8 Using the child-lock • To lock the oven — Press and hold STOP/Cancel for three seconds. The oven sounds a long beep and the display shows , indicating that the lock is active. • To unlock the oven — When the oven is locked, press and hold STOP/CANCEL for three seconds. The oven sounds a long beep, indicating that lock is released.
NS-MW09SS8_17-0526_MAN_V2_ENG.fm Page 19 Tuesday, June 27, 2017 10:11 AM 0.9 Cu. Ft. Microwave Oven Troubleshooting If you have a problem with your oven, review the following chart for a possible solution. If the oven still does not work properly, contact the nearest authorized service center. PROBLEM POSSIBLE CAUSE The electrical cord is not plugged in. Oven will not The door is open. start The wrong operation is set. You are attempting to use incorrect materials in the oven.
NS-MW09SS8_17-0526_MAN_V2_ENG.fm Page 20 Tuesday, June 27, 2017 10:11 AM NS-MW09SS8 Obtaining replacement parts Call Insignia Customer Service at 1-877-467-4289. Specifications Model NS-MW09SS8 Rated voltage 120 V~60 Hz Rated input power (microwave) 1350 W Rated output power (microwave) 900 W Oven capacity 0.9 Cu. ft. Turntable diameter 10.6 in. (270 mm) External dimensions (WxDxH) 19.1 x 14.8 x 11.5 in. (485 x 375 x 293 mm) Internal dimensions (WxDxH) 12.4 x 13.7 x 8.7 in.
NS-MW09SS8_17-0526_MAN_V2_ENG.fm Page 21 Tuesday, June 27, 2017 10:11 AM 0.9 Cu. Ft. Microwave Oven ONE-YEAR LIMITED WARRANTY Definitions: The Distributor* of Insignia branded products warrants to you, the original purchaser of this new Insignia-branded product (“Product”), that the Product shall be free of defects in the original manufacturer of the material or workmanship for a period of one (1) year from the date of your purchase of the Product (“Warranty Period”).
NS-MW09SS8_17-0526_MAN_V2_ENG.fm Page 22 Tuesday, June 27, 2017 10:11 AM NS-MW09SS8 • Commercial purposes/use, including but not limited to use in a place of business or in communal areas of a multiple dwelling condominium or apartment complex, or otherwise used in a place of other than a private home. • Modification of any part of the Product, including the antenna • Display panel damaged by static (non-moving) images applied for lengthy periods (burn-in).
NS-MW09SS8_17-0526_MAN_V2_ENG.fm Page 23 Tuesday, June 27, 2017 10:11 AM 0.9 Cu. Ft. Microwave Oven www.insigniaproducts.
NS-MW09SS8_17-0526_MAN_V2_ENG.fm Page 24 Tuesday, June 27, 2017 10:11 AM www.insigniaproducts.com 1-877-467-4289 (U.S. and Canada) or 01-800-926-3000 (Mexico) INSIGNIA is a trademark of Best Buy and its affiliated companies. Distributed by Best Buy Purchasing, LLC 7601 Penn Ave South, Richfield, MN 55423 U.S.A. ©2017 Best Buy. All rights reserved. Made in China.
