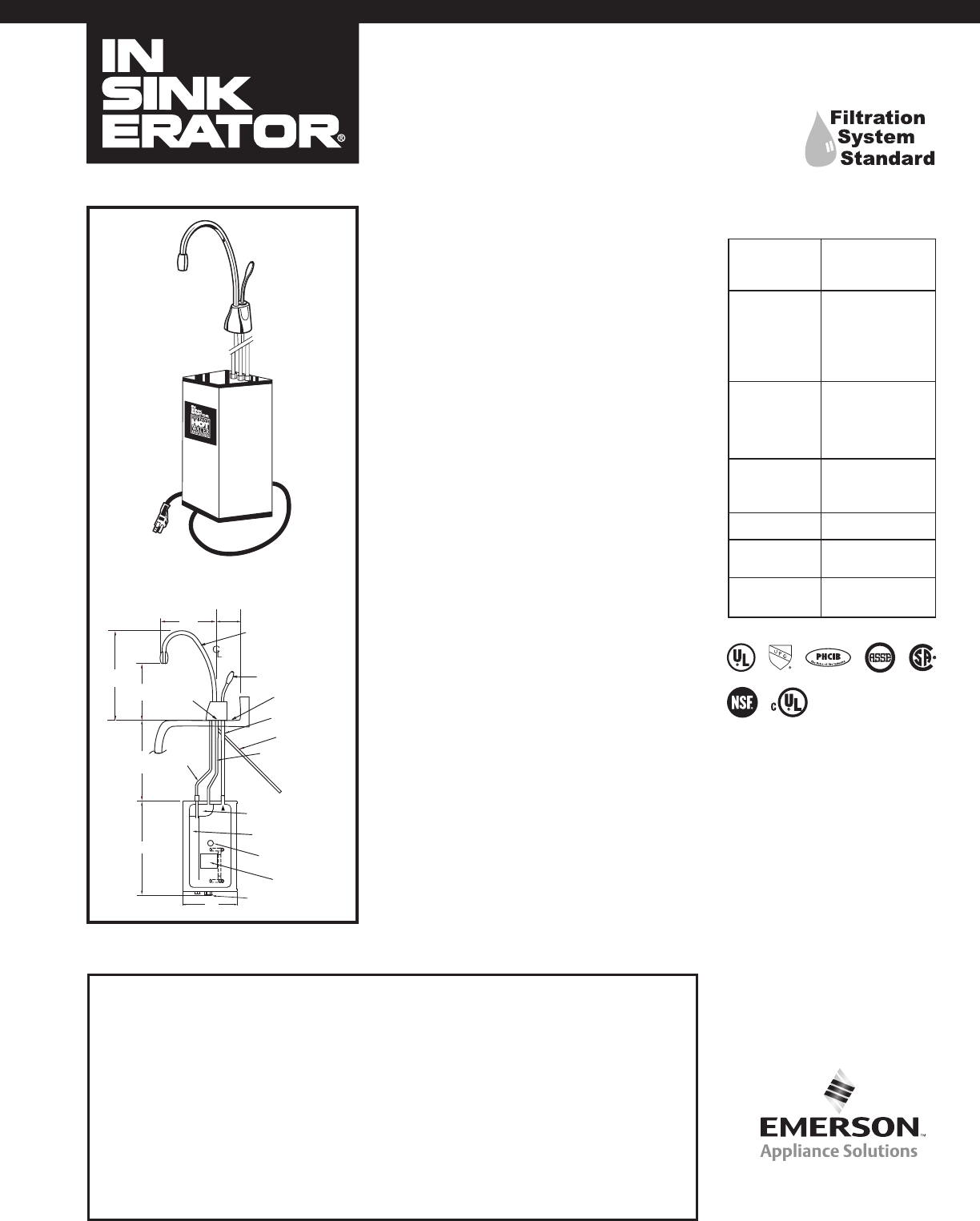

Instant Hot Water Dispenser
Model GN-1100
Form No. HWD 266-04H-19-12
The Emerson logo is a trademark and
a service mark of Emerson Electric Co.
In-Sink-Erator is a division of
Emerson Electric Co.
© IN-SINK-ERATOR Printed in USA
Job Specifications
Submittal Sheet
This model offers you these features & benefits:
• 1 Year “We Come To You”
™
In-Home Parts
and Labor Warranty
*
• Beautifully arched gooseneck spout provides
clearance for large pots
• Easy-action lever with automatic
self-closing valve
• Convenient swivel spout
• Solid brass faucet construction
• Manually resetable thermal overload protector
• Available in nine designer finishes: Chrome,
White, Almond, Biscuit, Black, Polished Nickel,
Satin Nickel, French Gold & Mocha Bronze
*
The complete In-Sink-Erator warranty is included
in the Installation Care & Use Booklet, packed
with each unit.
Sample Specification
• Capacity – ½ gallon tank dispenses 60 cups
of 190
º
F water per hour
• Electrical – 115 volts A.C., 750 watts, 6.5 amp
heating element with grounded three (3)
prong plug
• Thermostat – Snap action, adjustable from 140
º
F
to 200
º
F (factory pre-set at approximately 190
º
F)
• Insulation – Meets U.L. 94HF-1 flammability
specification
• Hot Valve – Instant self-closing
• Shipping Weight – Approximately 9
½ lbs.
•
To ensure optimum performance, maximum
distance between tank and dispenser head
should be 16" or less
Specifications
Capacity
Electrical
Thermostat
Insulation
Hot Valve
Shipping
Weight
½ gallon tank
dispenses 60 cups of
190
º
F water per hour
115
volts A.C, 750
watts
, 6.5 amp
heating
element
with grounded
three
(3) prong
plug
Snap-action,
adjustable
from
140
º
F to 200
º
F
(factory pre-set
at 190
º
F)
Meets
U.L. 94HF-1
flammability
specification
Instant
, self-closing
Required
Hole Diameter
1 ¼" - 1 ½"
Approximately
9 ½ lbs.
Dimensions
6"
10"
16"
MAX.
HOT
WATER
FLEXIBLE
VENT TUBE
DRAIN CAP
INLET
TUBE
FLEXIBLE
OUTLET TUBE
EXPANSION CHAMBER
RESETABLE
T.C.O.
1/2 GALLON
TANK ASSEMBLY
(1.9 LITERS)
ADJUSTABLE
THERMOSTAT
DISPENSER
LEVER
3" MAX.
MAT'L THK
WATER PASSAGE
MIN.
COLD SIDE
WATER SUPPLY
5
1
/
2"
DIA.
SINK
HOLE
1
1
/
4"
5
1
/
2"
4
3
/
8"
8
3
/
8"
