Instruction Manual

Your new SignaLinc V2 will increase your INSTEON-enabled system's reliability
without the need for plug-in phase couplers.
Quick-Start Guide

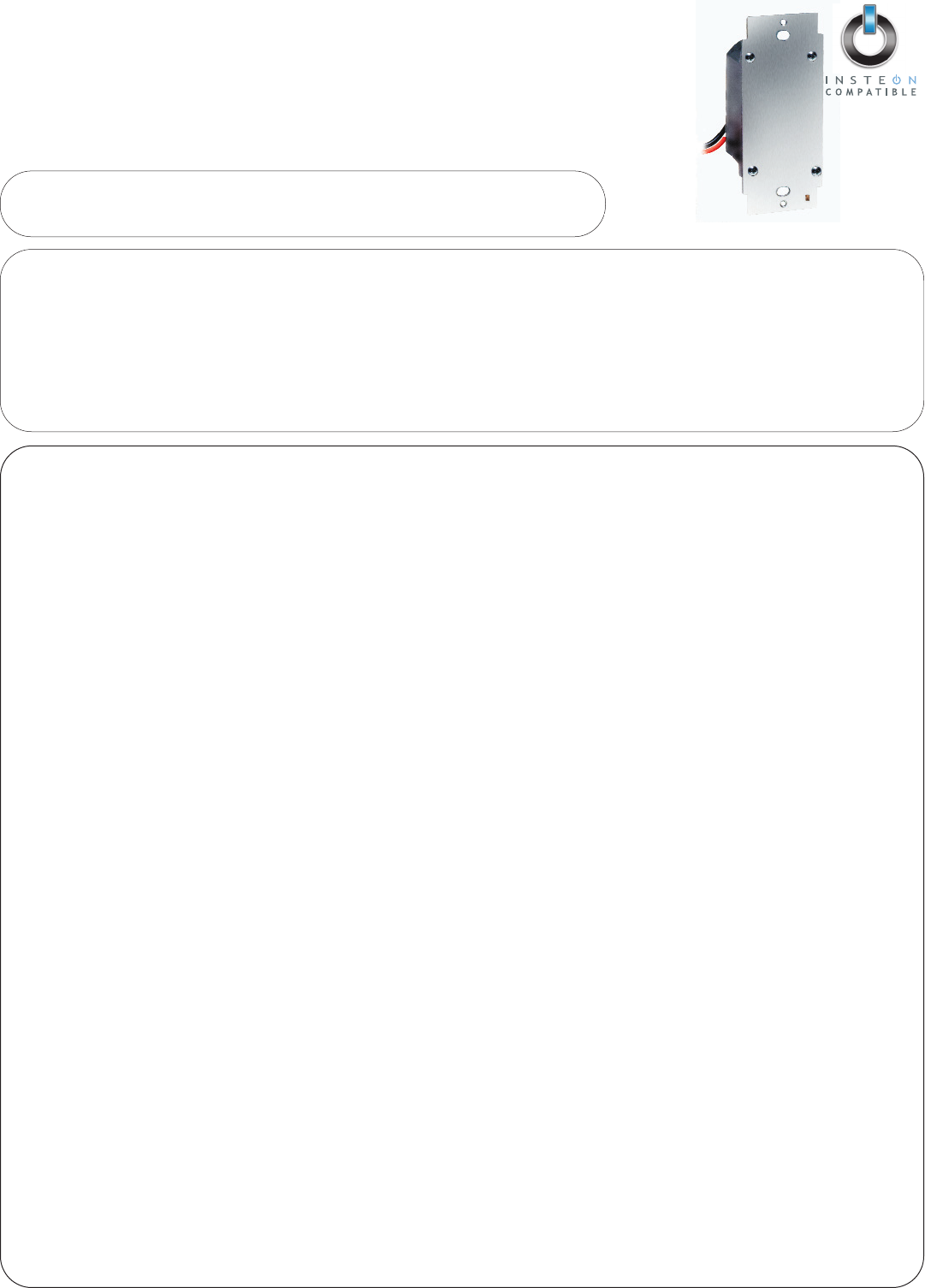

SIGNALINC V2 HARDWIRED
SignaLinc
TM
V2 Hardwired (#2406H)
NNeeeedd HHeellpp?? FFoorr aassssiissttaannccee ccaallll yyoouurr ffrriieennddllyy
ssuuppppoorrtt ppeerrssoonn @@ 880000--SSMMAARRTTHHOOMMEE ((880000--776622--77884466))
PPrreeppaarraattiioonn
IInnssttaallllaattiioonn sshhoouulldd bbee ppeerrffoorrmmeedd oonnllyy bbyy aa qquuaalliiffiieedd eelleeccttrriicciiaann oorr bbyy aa hhoommeeoowwnneerr wwhhoo iiss ffaammiilliiaarr aanndd ccoommffoorrttaabbllee wwiitthh eelleeccttrriiccaall
cciirrccuuiittrryy.. IIff tthheerree aarree aannyy qquueessttiioonnss,, ccoonnssuulltt aann eelleeccttrriicciiaann.. FFoorr sse
ettuupp qquueessttiioonnss ccoonnttaacctt TTeecchh SSuuppppoorrtt aatt SSmmaarrtthhoommee ffoorr gguuiiddaannccee..
TToooollss yyoouu wwiillll nneeeedd::
•A standard screwdriver
•A Phillips screwdriver
•A wire cutter/stripper
•A voltage tester to identify wires inside the junction box
Installation Procedures
SStteepp 11..
At the service entrance, shut off all power to the breaker box. In some homes, this will be the "Main" breaker in the
circuit breaker panel. If there isn't a main power shutoff (master switch) or you can't find it, do not attempt the work.
Call a licensed electrician.
SStteepp 22..
Remove the circuit breaker panel cover.
SStteepp 33..
Use the circuit tester or AC voltmeter to be sure the circuits are OFF. Check to make sure that there is no voltage from
the screw terminals of several circuit breakers to the ground or neutral bus bar.
SStteepp 44..
The SignaLinc will need to be wired directly to two circuit breakers. It is a violation of the electrical code to use an
existing breaker that already has a wire connected to it. Install a new 220-volt 15-amp (double-pole) circuit breaker.
These breakers have a bar between the paddles so that if one breaker detects an overloaded condition, both will trip.
SStteepp 55..
Install a single-gang electrical box for the SignaLinc near the breaker box. Use either a metal or plastic outlet box. The
sales people at your local home improvement center or electrical supply store can help guide you to the right choice
that will comply with local electrical ordinances.
SStteepp 66..
Run electrical cable between the circuit breaker panel and the mounting box for the SignaLinc. The cable should be
secured with a clamp or wire nail to the wall stud within a few inches of the mounting box. We recommend using 14/3
cable, which has three conductors plus a ground wire.
SStteepp 77..
Connect the bare copper ground wires together. Using a pair of pliers, twist ground wire from the SignaLinc and the
ground wire going to the breaker box together in a clockwise motion. Make several turns to ensure a good connection.
Place a wire nut on this connection (this is a code requirement).
SStteepp 88..
Connect the black wire on the SignaLinc to the black wire going to the panel. Strip back about ¾" of insulation. Using
pliers, twist the conductors together in a clockwise motion. Cut the exposed twisted copper wires back to about ½".
Place a wire nut over this connection.
SStteepp 99..
Connect the red wires following the same instructions above. If you are using 14/2 wire, use a black marker to color
the white wires black (at both ends, at the SignaLinc and the breaker box). This, too, is typically an electrical
code requirement.
SStteepp 1100..
If you have a white wire left over, place a wire nut on it. It is not connected to the SignaLinc.
SStteepp 1111..
At the circuit breaker box, connect the ground wire to the ground bus bar. Some panels do not have a separate ground
bus bar so the ground wire must be connected to the neutral bus bar. The ground wire must be connected for safety
purposes.
SStteepp 1122..
Connect the BLACK wire to one of the 15-Amp circuit breakers.
SStteepp 1133..
Connect the RED wire (or the white wire colored black with a marker if you are using 14/2 cable) to the other 15-Amp
breaker.
SStteepp 1144..
Check to be sure that all the wires are securely fastened, no copper is exposed (except for the ground wire), and all
screws are tight.
SStteepp 1155..
Restore power to the main breaker.
SStteepp 1166..
You can confirm that the SignaLinc is wired to the correct breakers if you can read 220 to 240 volts AC between the two
breakers when the power is turned on. If there is no voltage between the two breakers, check to be sure that both of
the breakers and the master breaker are "ON". If there is still no voltage between the two breakers, then they are
probably on the same leg, and you will have to select another breaker for one of the wires.
SStteepp 1177..
Replace the circuit breaker panel cover.
®
