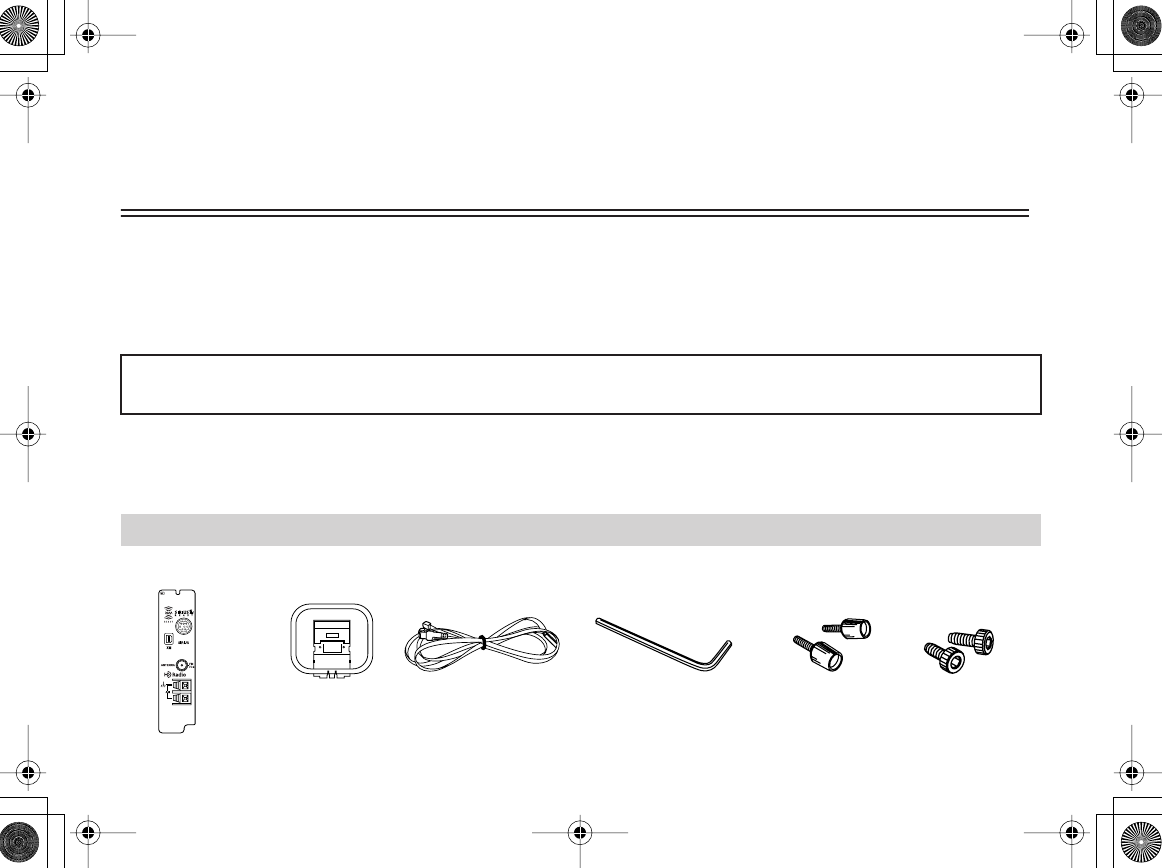

Using the Main Unit with Tuner Board Instruction Manual for ONKYO TX-NR1000 / Integra DTR-10.5 / Integra Research RDC-7.1 Thank you for purchasing the Tuner Board . When this optional board is inserted into option slot “K” on the main unit’s rear panel, it can be used as the XM or SIRIUS/FM Stereo/AM tuner terminal. Furthermore, becomes capable of supporting HD Radio™ functionality and RDS as well.
Installing Board 1 ■ If this is the first time a slot is used: Power off the main unit, and then unplug the power cord from the AC outlet. RS 232 T VIDEO IN COMPONEN Remove the “K” sub-panel or board from the main unit to which you want to add on the optional board. /BNC ) Y T VIDEO IN Y 12V TRIGGER OUT REMOTE CONTROL K PB ANTENNA MAX. B 100mA A 200mA C 100mA MAX. MAX. PR MAX. D 100mA Y E 100mA MAX. FM MAIN 75 ZONE 2 PB ZONE 3 AM PR IN OUT IR A 200mA MAX.
4 Insert the option board along the upper and lower guide rails. T VIDEO IN Y 12V TRIGGER OUT REMOTE CONTROL K A PB 200mA MAX. B 100mA C 100mA MAX. MAX. PR MAX. D 100mA Y E 100mA MAX. MAIN ZONE 2 UPP PB ZONE 3 PR IN OUT IR Fix the option board firmly to the main unit using the hexagon screws on the top and bottom. RS 232 K VIDEO IN Y 12V TRIGGER OUT REMOTE CONTROL A PB 200mA MAX. B 100mA C 100mA MAX. MAX. PR MAX. D 100mA Y E 100mA MAX.
Using XM Satellite Radio Listening to XM Satellite Radio® Important XM Radio Information XM Satellite Radio offers an extraordinary variety of commercial-free music, plus the best in sports, news, talk and entertainment. XM is broadcast in superior digital audio from coast to coast. From rock to reggae, from classical to hip hop, XM has something for every music fan.
A warning against reverse engineering: It is prohibited to, and you agree that you will not, copy, decompile, disassemble, reverse engineer, hack, manipulate, or otherwise access and/or make available any technology incorporated in receivers compatible with the XM Satellite Radio system. Furthermore, the AMBE® voice compression software included in this product is protected by intellectual property rights including patent rights, copyrights, and trade secrets of Digital Voice Systems, Inc.
You can use your main unit and the remote controller supplied with your main unit to perform XM Radio operations. Button names may vary depending on the model you use. The following table shows the button names of the main unit and of the remote controller, respectively, and their corresponding operations.
Setting the Satellite Radio Mode 1 Press the [SETUP] button. 2 Use the [ ]/[ ] buttons to select “Hardware Setup,” and then press [ENTER]. 3 Use the [ ]/[ ] buttons to select “SAT Radio,” and then press [ENTER]. 4 Use the [ ]/[ ] buttons to select “XM.” None: Select if you’re not using satellite radio. XM: Select to use XM Satellite Radio. SIRIUS: Select to use SIRIUS Satellite Radio. 5 Press the [SETUP] button.
Selecting XM Radio Channels 2 There are three ways to select XM radio channels: • Channel Search mode: select any channel. • Category Search mode: select channels by category. • Direct tuning: enter channel number. ■ Channel Search Mode 1 2 Press the [ENTER] or [TUNING MODE] button to select “Channel Search” mode. Use the [ ]/[ ] buttons or CONTROL/TUNING dial to select a channel. You can also use the [ ]/[ ] buttons or push SELECT/PRESET dial to select a category.
Presetting XM Radio Channels You can store a combination of up to 40 of your favorite XM channels and AM/FM radio stations as presets. 1 Tune into the XM channel that you want to store as a preset. 2 Press the [MEMORY] button. The MEMORY indicator appears and the preset number flashes. 3 While the MEMORY indicator is displayed (about 4 seconds), use the SELECT/PRESET dial or Preset Up/Down buttons to select a preset number from 1 through 40. 4 Press the [MEMORY] button again to store the channel.
Displaying XM Radio Information Press the [DISPLAY] button repeatedly to cycle through the available information. Channel Number Channel Name Preset Number The indication on the Channel Name switches among the following titles: Channel name Category name (CAT) Artist name (NAME) Song title (TITL) Listening Mode Note: • If the category, artist, or song title is not available, “- - -” will be displayed instead.
OFF AIR The XM channel you selected is not currently broadcasting. Select another channel . XM Listener Care phone number: US: 1-800-967-2346 Canada: 1-877-438-9677 4 Adjust the position of the XM Mini-Tuner Antenna so that the Satellite signal strength bar is as long as possible. The best signal is acheived when the antenna is pointing to the southern sky through an unobstructed window.
Using SIRIUS Satellite Radio Listening to SIRIUS Satellite Radio® Important SIRIUS Satellite Radio Information SIRIUS is available in the US for subscribers with addresses in the continental US and is available in Canada for subscribers with a Canadian address. To Get SIRIUS Satellite Radio a subscription and compatible tuner and antenna are required and sold separately. Visit sirius.com for the most complete and up-to-date channel lineup and information.
Setting Up the SiriusConnect™ Home Tuner Positioning the Antenna The optional SiriusConnect Home tuner kit includes everything for easy home installation, including the SiriusConnect receiver, indoor/outdoor antenna with 21-foot cable, 8-pin mini DIN connector cable, and an AC power adapter. See the SiriusConnect Home tuner’s instructions for more information. Use the 8-pin mini DIN connector cable to connect the SiriusConnect receiver to the SIRIUS jack on the board.
You can use your main unit and the remote controller supplied with your main unit to perform Sirius Satellite Radio operations. Button names may vary depending on the model you use. The following table shows the button names of the main unit and of the remote controller, respectively, and their corresponding operations.
Setting the Satellite Radio Mode 1 Press the [SETUP] button. 2 Use the [ ]/[ ] buttons to select “Hardware Setup,” and then press [ENTER]. 3 Use the [ ]/[ ] buttons to select “SAT Radio,” and then press [ENTER]. 4 Use the [ ]/[ ] buttons to select “SIRIUS.” None: Select if you’re not using satellite radio. SIRIUS: Select to use SIRIUS Satellite Radio. XM: Select to use XM Satellite Radio.
Selecting SIRIUS Satellite Radio Channels 2 There are three ways to select channels: • Channel Search mode: select any channel. • Category Search mode: select channels by category. • Direct tuning: enter channel number. ■ Channel Search Mode 1 2 Press the [ENTER] or [TUNING MODE] button to select “Channel Search” mode. Use the [ ]/[ ] buttons or CONTROL/TUNING dial to select a channel. You can also use the [ ]/[ ] buttons or push SELECT/PRESET dial to select a category.
Presetting SIRIUS Channels You can store a combination of up to 40 of your favorite SIRIUS Satellite Radio channels and AM/FM radio stations as presets. 1 Tune into the SIRIUS channel that you want to store as a preset. 2 Press the [MEMORY] button. The MEMORY indicator appears and the preset number flashes. 3 While the MEMORY indicator is displayed (about 4 seconds), use the SELECT/PRESET dial or Preset Up/Down buttons to select a preset number from 1 through 40.
Displaying SIRIUS Satellite Radio Information Press the [DISPLAY] button repeatedly to cycle through the available information. Channel Number Channel Name Preset Number The indication on the Channel Name switches among the following titles: Channel name Category name (CAT) Artist/Composer name (NAME) Song title (TITL) Listening Mode Note: • If the category, artist, or song title is not available, “- - -” will be displayed instead.
❑ INVALID CHANNEL Displayed if you select an unavailable channel. ❑ CALL SIRIUS Displayed when you select a channel to which you are not subscribed. Call SIRIUS if you want to subscribe. 4 Adjust the position of the SiriusConnect Home antenna so that the SAT signal strength bar is as long as possible. ❑ CHECK SIRIUS TUNER Displayed if the SiriusConnect receiver is not connected. Make sure the SiriusConnect receiver is connected properly, and make sure its AC adapter is plugged in.
Parental Lock 6 Use the [ ]/[ ] buttons to select the channel that you want to lock out. 7 Press the [ ]/[ ] buttons to select “Locked,” and then press the [ENTER] button. 8 Press the [SETUP] button. A locked channel is not displayed in “Channel Search” and “Category Search” modes. When you have selected a locked channel by direct tuning, you will be prompted for PIN number. To listen to the channel, enter a correct PIN number. You can lock out channels that you do not want to receive.
Changing the PIN Number 1 Press the [SETUP] button. 2 Use the [ ]/[ ] buttons to select “SAT Radio Setup,” and then press [ENTER]. 3 Use the [ ]/[ ] buttons to select “Parental Lock,” and then press [ENTER]. 4 Enter the PIN number. For operation, refer to step 4 under "Parental Lock." 5 Use the [ ]/[ ] buttons to select “Edit Code,” and then press [ENTER]. 6 Enter a new PIN Code. For operation, refer to step 4 under "Parental Lock." 7 Enter the new PIN number again.
Using the HD Radio™ Receiver HD Radio technology is a breakthrough that brings digital broadcasting to function in conventional analog AM and FM radio stations. With digitally broadcasted programs, listeners will enjoy dramatically enhanced audio quality, improved reception, and new data services. In addition to these features, supplemental HD Radio program services provide multicast broadcasting; listeners can select from up to 8 programs on a single FM HD Radio channel.
Selecting HD Radio Multicast Channels You can select a channel by performing the following steps for an FM HD Radio station that has multicast channels: 1 Press the [CONTROL/TUNING] dial or [ENTER]. HD Radio channel number blinks on and off on the display. 2 Use the [CONTROL/TUNING] dial or [ ]/[ ] button to select a channel. If you select a channel with no broadcast underway, you will see [+] symbol next to the “HD” indicator; the channel will not change over, but remain in a channel reserve state.
Receiving RDS Radio RDS stands for Radio Data System and is a type of FM broadcasting. RDS was developed within the National Radio Systems Committee (NRSC) and is available in the North America. Many FM stations now transmit RDS signals which contain additional information. RDS provides you with various services so that you can choose a station broadcasting your favorite categories of music or other information.
