DIRECTV® Big Button Remote USER GUIDE
TABLE OF CONTENTS Installing Batteries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 To Install Batteries: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 Battery Use And Safety. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 Features and Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 Programming a Device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 Searching for Your Code . .
INSTALLING BATTERIES Your DIRECTV® Big Button Remote requires two AA alkaline batteries (included). To Install Batteries: 1. Open the battery compartment cover (located on the back of the remote). 2. Place the AA batteries in the compartment and match the + and - polarity symbols inside. 3. Replace the cover. Battery Use And Safety • Use only fresh batteries of the required size and recommended type.

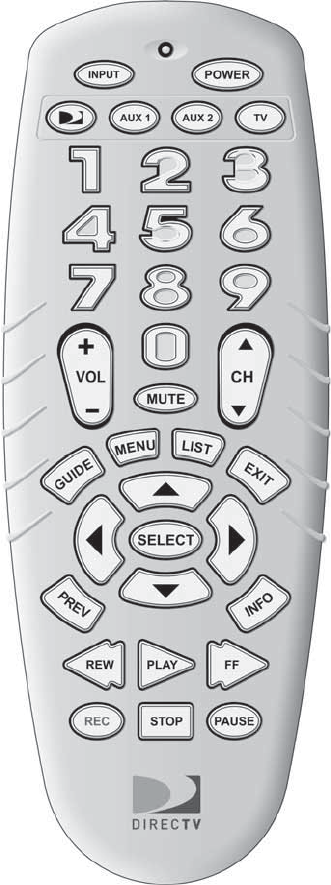

• If you do not plan to use the remote for an extended period, remove the batteries. They can leak chemicals that can destroy electronic parts. WARNING: Dispose of old batteries promptly and properly. Do not burn or bury them. FEATURES AND FUNCTIONS NOTE: NOTE: The DIRECTV Big Button Remote does not support some DIRECTV Interactive Applications. If you are using your DIRECTV Big Button Remote with an HD receiver, you cannot change the HD format with the remote.
Press this key… To… Use the arrows to move the cursor in the program Guide and menu screens. Press SELECT to choose options from the selected device's menu or Guide. Display the Quick Menu in DIRECTV mode, or other menu for another selected device. View the current channel and program information. Raise or lower the sound level. Turn the sound off or on. Select the next or previous channel. Select next or previous chapter on some models of DVD players.
2. On the remote, press and release the appropriate mode key for the device you want to program (that is, DIRECTV, TV, AUX 1, or AUX 2). 3. Press and hold the mode key until the green LED flashes twice. Release the key. 4. Enter the first five-digit code for your device. The LED blinks once as each digit is entered. If the code is correct, the LED blinks twice. NOTE: If the LED does not blink twice, repeat steps 2 to 5 and try entering the code again. 5.
. To search for other device codes, repeat steps 1 to 6, substituting the appropriate key for the device. CHECKING THE CODES If you have set up the remote using the procedure in Searching for Your Code, you may need to find out which four-digit code is operating your equipment. For example, to find out which code is assigned to your TV: Press and hold TV until the green LED blinks twice. Enter 9 9 0. The LED blinks twice. To view the code for the first digit, press 1.
3. Repeat steps 1 to 2 for any other device that you want to have independent volume control. Locking Volume Control to One Mode (Global Volume Lock) 1. Select and hold the mode key for a device (for example, TV) until the green LED blinks twice. 2. Enter 9 9 3 and then press the key for a second device (for example, AUX 1 to control the volume of an audio amplifier). The LED blinks twice.
IMPORTANT: Executing this program erases all custom settings for Volume Lock and Channel Lock. 1. 2. Press and hold a device key (for example, DIRECTV). Enter 9 8 1. The last-selected device key blinks twice, pauses, and blinks twice again to confirm that all custom programming is cleared. TROUBLESHOOTING PROBLEM: Light at the top of the remote blinks when you press a key, but the component does not respond. SOLUTION 1: Try replacing the batteries. (See “Installing Batteries” on page 3.
• Handle the remote gently and carefully. Don’t drop it. • Wipe the remote with a damp cloth to keep it looking like new. Modifying or tampering with the internal parts can cause damage and invalidate the warranty. SPECIFICATIONS Power(2) AA Alkaline Batteries Size (H x W x D)7.67 x 2.44 x 1.42 in. (195 x 72.5 x 34 mm) Weight (w/o batteries)4.76 oz. (136 g) Specifications are typical; individual units might vary. Specifications are subject to change and improvement without any notice.
DIRECTV SETUP CODES Setup Codes for DIRECTV Receivers DIRECTV all models 00001, 00002 Hughes Network Systems 00749 (most models) Hughes Network Systems 01749 models GAEB0, GAEB0A, GCB0, GCEB0A, HBH-SA, HAH-SA GE models GRD33G2A and 00566 GRD33G3A, GRD122GW Philips models DSX5500 00099 and DSX5400 Proscan models PRD8630A 00566 and PRD8650B RCA models DRD102RW, 00566 DRD203RW, DRD301RA, DRD302RA, DRD303RA, DRD403RA, DRD703RA, DRD502RB, DRD 503RB, DRD505RB, DRD515RB, DRD523RB, and DRD705RB DRD440RE, DRD460RE,
Philips model DSHD800R 01749 Proscan model PSHD105 00392 RCA models DTC-100, 00392 DTC-210 Samsung model SIR-TS360 01609 Samsung models SIR01276 TS160 Sony models SAT-HD100, 01639 200, 300 Toshiba models DST-3000, 01749, 01285 DST-3100, DW65X91 Zenith models DTV1080, 01856 HD-SAT520 Setup Codes for DIRECTV DVRs DIRECTV all models 00001, 00002 HNS models SD-DVR80, 01442 SD-DV40, SD-DVR120, HDVR2, GXCEBOT, GXCEBOTD Philips models DSR704, 01142, 01442 DSR708, DSR6000, DSR600R, DRS700/17 RCA models DWD490RE, 01
MANUFACTURER’S CODES Setup Codes for TVs A-Mark Abex Admiral Advent Adventura Aiko Akai Alaron Albatron Ambassador America Action Ampro Anam Anam National AOC Apex Digital Archer Audiovox Aventura Belcor Bell & Howell BenQ Boxlight Bradford Brockwood Broksonic Cadia Candle Carnivale Carver CCE Celebrity Celera Changhong 10003 10032 1093, 10463 10761, 10783, 10815, 10817, 10842 10046 1092 10030, 10060, 10672, 10702, 10812 10179 10700, 10843 10177 10180 10751 10180 10055 10003, 10019, 10030, 10052, 10185 101
Citizen Clairtone Clarion Commercial Solutions Concerto Contec Craig Crosley Crown Curtis Mathes CXC Daewoo Daytron Dell Denon Denstar Dumont Durabrand Dwin Electroband Electrograph Electrohome Emerson Envision Epson ESA Fisher Fujitsu Funai Futuretech Gateway 10030, 10039, 10046, 10056, 10060, 1092, 10186, 10280 10185 10180 10047, 11447 10056 10157, 10180, 10185 10180 10054 10039, 10180 10016, 10030, 10039, 10047, 10054, 10056, 10060, 1093, 1145, 10154, 10166, 10451, 10466, 10702, 11147, 11347 10180 100
GE Gibralter Go Video GoldStar Goodmans Grundig Grunpy Haier Hallmark Hannspree Harley Davidson Harman/Kardon Harvard Havermy Helios Hello Kitty Hewlett Packard Hisense Hitachi HP Hyundai Infinity Inteq Janeil JBL JCB Jensen JVC Kaypani KEC Kenwood KLH Kloss Konka KTV LG 10021, 10027, 10047, 10051, 10055, 1135, 10178, 10282, 10451, 11347, 11447 10017, 10019, 10030 10886 10001, 10019, 10030, 10032, 10178 10360 10683 10179, 10180 10768, 11034 10178 11348, 11351, 11352 10179 10054 10180 1093 10865 10451 11502
Loewe Logik Luxman LXI Magnavox Majestic Marantz Matsushita Maxent Megapower Megatron MEI Memorex MGA Midland Minutz Mitsubishi Monivision Motorola MTC Multitech NAD NEC NetTV Nikko Norcent Noshi NTC Olevia Onwa Optimus Optoma Optonica Orion 1136 10016 10056 10047, 10054, 10154, 10156, 10178 10020, 10024, 10030, 10054, 1096, 10179, 10186, 10187, 10386, 10706, 10802, 11254, 11454 10016 10030, 10054, 10704, 10855, 11154, 11454 10250, 10650 11755 10700 10003, 1145, 10178 10185 10016, 1150, 10154, 10178, 1017
Panasonic Penney Philco Philips Pilot Pioneer Polaroid Portland Prima Princeton Prism Proscan Proton Pulsar Quasar RadioShack RCA Realistic Rhapsody Runco Sampo Samsung Samsux Sansui Sanyo 10051, 10055, 10250, 10650, 11410 10003, 10018, 10019, 10021, 10027, 10030, 10032, 10039, 10047, 10051, 10060, 1135, 10156, 10178, 11347 10019, 10020, 10030, 10054, 1096 10054, 10690, 11154, 11454 10019, 10030, 10039 10038, 10166, 10679, 10866 10765, 10865, 11276, 11314, 11316, 11326, 11327, 11328 10019, 10039, 1092 1
Sceptre Scimitsu Scotch Scott Sears Seleco Sharp Sheng Chia Shogun Signature Simpson Sole Sony Soundesign Spectricon Squareview SSS Starlite Studio Experience Superscan Supre-Macy Supreme SVA Sylvania Symphonic Syntax Tandy Tatung Technics Technol Ace Techview Techwood Teknika Telefunken 11360 10019 10178 10019, 10178, 10179, 10180, 10236 10047, 10054, 10056, 1146, 10154, 10156, 10159, 10171, 10178, 10179 11351 10039, 1093, 10157, 10165, 10386, 10491, 10688, 10689, 10851 1093 10019 10016 10186, 10187 10813
TMK TNCi Toshiba Zonda 10056, 10177, 10178 10017 10060, 10154, 10156, 10650, 10832, 10845, 11156, 11256, 11265, 11343, 11356, 11360, 11656, 11704 10185 10039 10157 10463 10027 10030 10053 10054 10019, 10178 10857, 10864, 10885, 11330, 11342, 11755 10046 10864, 10885, 11756 10016, 10019, 10020, 10021, 10027, 10030, 10054, 10056, 10080, 1096, 1111, 10165, 10178, 10179, 10866, 11156 10156 10000, 10451, 10885, 10889, 11282 10463, 10623 10019, 10030, 10769, 10833, 10839 10016, 10017, 1092, 10178, 10463, 11145,
Audiovox Beaumark Bell & Howell Broksonic Calix Canon Carver CCE Citizen Colt Craig Curtis Mathes Cybernex CyberPower Daewoo Dell Denon DirecTV Durabrand Dynatech Electrohome Electrophonic Emerex Emerson Fisher Fuji Funai Garrard Gateway GE Go Video GoldStar Gradiente Harley Davidson Harman/Kardon Harwood 20037, 20278 20240 20104 20002, 20121, 20184, 20209, 20479, 21479 20037 20035 20081 20072, 20278 20037, 20278, 21278 20072 20037, 20047, 20072, 20240 20035, 20041, 20060, 20162, 21035 20240 21972 20045,
Headquarter Hewlett Packard HI-Q Hitachi Howard Computers HP Hughes Network Systems Humax Hush iBUYPOWER Jensen JVC KEC Kenwood KLH Kodak LG Linksys Lloyd's Logik LXI Magnasonic Magnavox Magnin Marantz Marta Matsushita Media Center PC MEI Memorex MGA MGN Technology Microsoft Mind Minolta Mitsubishi Motorola 20046 21972 20047 20000, 20041, 20042, 20065, 20089, 20105 21972 21972 20042, 20739 20739 21972 21972 20041 20008, 20041, 20067 20037, 20278 20038, 20041, 20067 20072 20035, 20037 21037 21972 20000 200
MTC Multitech NEC Nikko Nikon Niveus Media Noblex Northgate Olympus Onkyo Optimus Orion Panasonic Penney Pentax Philco Philips Pilot Pioneer Polk Audio Presidian Profitronic Proscan Protec Pulsar Quarter Quartz Quasar RadioShack Radix Randex RCA Realistic ReplayTV 20000, 20240 20000, 20072 20038, 20040, 20041, 20067, 20104 20037 20034 21972 20240 21972 20035, 20226 20222 20037, 20048, 20104, 20162, 20432, 20593, 21048, 21062 20002, 20184, 20209, 20479, 21479 20035, 20077, 20162, 20225, 20226, 20616, 21035
Ricavision Ricoh Runco Salora Samsung Sanky Sansui Sanyo Scott Sears Sharp Shintom Shogun Singer Sonic Blue Sony Stack 9 STS Sylvania Symphonic Systemax Tagar Systems Tatung Teac Technics Teknika Thomas Tivo TMK Toshiba Totevision Touch Unitech Vector 21972 20034 20039 20075 20045, 20240, 20739 20039, 20048 20000, 20041, 20067, 20209, 20479, 21479 20046, 20047, 20104, 20159, 20240 20043, 20045, 20121, 20184, 20210, 20212 20000, 20035, 20037, 20042, 20046, 20047, 20104, 20105, 21237 20048, 20807, 20848 2007
Vector Research Video Concepts Videomagic Videosonic Viewsonic Villain Voodoo Wards White Westinghouse XR-1000 Yamaha Zenith ZT Group 20038, 20040 20040, 20045, 20061 20037 20240 21972 20000 21972 20000, 20035, 20042, 20047, 20048, 20060, 20072, 20081, 20149, 20212, 20240 20072, 20209 20000, 20035, 20072 20038 20000, 20033, 20034, 20039, 20209, 20479, 21139, 21479 21972 Setup Codes for DVD Players Aiwa 20641 Akai 20695, 20770, 21089 Alco 20790 Allegro 20869 Amphion Media Works 20872 AMW 20872 Apex Digital
Daewoo Daytek Denon Desay Disney Dual Durabrand DVD2000 Emerson Enterprise Fisher Funai Gateway GE Go Video Go Vision GoldStar GPX Gradiente Greenhill Grundig Harman/Kardon Hitachi Hiteker iLo Initial Integra Jaton JBL JSI JVC jWin Kawasaki Kenwood KLH Konka Koss Landel Lasonic 20705, 20784, 20833, 20869, 21169, 21172, 21234, 21242 20872 20490, 20634 21407 20675, 21270 21068, 21085 21127 20521 20591, 20675, 20821 20591 20670 20675, 21334 21073, 21077, 21158 20522, 20717, 20815 20715, 20741, 20744, 20783, 2
Lecson Lenoxx LG LiteOn Loewe Magnavox Malata Marantz McIntosh Memorex Microsoft Mintek Mitsubishi Momitsu NAD NEC Nesa Next Base NexxTech Norcent Onkyo Oritron Panasonic Philips PianoDisc Pioneer Polaroid Polk Audio Portland Presidian Proceed Proscan ProVision Qwestar RCA Rio RJTech Rotel Rowa 21533 21127 20591, 20741, 20801, 20869 21058, 21158, 21416, 21440 20511 20503, 20539, 20646, 20675, 20821 20782, 21159 20539 21533 20695, 20831, 21270 20522 20717, 20839 20521, 21521 21082 20591, 20692, 20741 20785
Sampo Samsung Sansui Sanyo Sensory Science Sharp Sharper Image Sherwood Shinsonic Sonic Blue Sony Sungale Superscan SVA Sylvania Symphonic Teac Technics Technosonic Techwood Theta Digital Toshiba Tredex Urban Concepts US Logic Venturer Vizio Xbox Yamaha Yamakawa Zenith Zoece 20698, 20752 20490, 20573, 20744, 20820, 21044, 21075 20695 20670, 20695, 20873 21158 20630, 20675, 20752, 21256 21117 20633, 20770, 21043, 21077 20533, 20839 20869, 21099 20533, 20864, 21033, 21431, 21533 21074 20821 20860, 21105 2067
Amphion Media Works AMW Anam Apex Digital Arcam Audiotronic Audiovox B&K BK Bose Brix Cambridge Soundworks Capetronic Carver Classic Coby Criterion Daewoo Delphi Denon Emerson Fisher Garrard Gateway Go Video Harman/Kardon Hitachi Initial Inkel Integra JBL JVC Kenwood KLH Koss Lasonic Lenoxx Lexicon 31563, 31615 31563, 31615 31074, 31609 31257, 31430, 31774 31189 31189 31390, 31627 30701, 30820, 30840 30702 30639, 31229, 31253, 31933 31602 31370 30531 30008, 30121, 30189, 30360, 31189, 31289 31352 31389 314
LG Linn Liquid Video Magnavox Marantz McIntosh MCS Micromega Mitsubishi Myryad Nakamichi NEC Norcent Nova Onkyo Optimus Oritron Panasonic Philips Pioneer Polaroid Polk Audio Proscan Quasar RCA Realistic Regent Rio Saba Samsung Sansui Sanyo Scott 31293 30189 31497 30128, 30189, 30531, 31189, 31269, 31514 30039, 30128, 30189, 31189, 31269, 31289 31289 30039, 30346 31189 31393 31189 30347, 31313 30235 31389 31389 30135, 30380, 30842, 31298, 31320, 31531 30177, 30186, 30219, 30531, 30670, 31023, 31074 31366, 3
Sharp Sharper Image Sherwood Shinsonic Sirius Sonic Blue Sony Soundesign Stereophonics Sunfire Teac Technics Thorens Toshiba Venturer Victor Wards XM Yamaha Zenith 30186 31556 30062, 31077, 31423, 31517, 31567, 31653 31426 31602, 31627, 31811 31532, 31869 30168, 31058, 31258, 31406, 31441, 31558, 31622, 31658, 31758, 31759, 31858 30670 31023 31313 30163, 31074, 31267, 31390, 31528 30039, 30208, 30309, 31308, 31518, 31633 31189 30135 31390 30074 30014, 30189 31406, 31414 30176, 30186, 31176, 31276, 31331, 3
NEC Optimus Parasound Philips Pioneer Polk Audio RCA Realistic Sansui Shure Sony Soundesign Victor Wards Yamaha 30264 30395, 30823 30246 30892 30823 30892 30823 30395 30321 30264 30689, 30815, 31126 30078, 30211 30331 30078, 30211 30133, 30143, 30354, 30504 31
