• Egress Shaping Rates — Configures the traffic shaping type for selected interfaces.
The possible field values are:
— Status — Indicates if Egress Shaping Rate is enabled on the interface.The
possible range is 1 to 10000000.
— CIR — Defines CIR as the queue shaping type. The possible field value is 64 -
10,000,000 bits per second.
— CbS — Defines CbS as the queue shaping type. The possible field value is 1
kbps -10,000,000 bytes.
2. Select an interface.
3. Click . The Modify Bandwidth Settings Page opens.

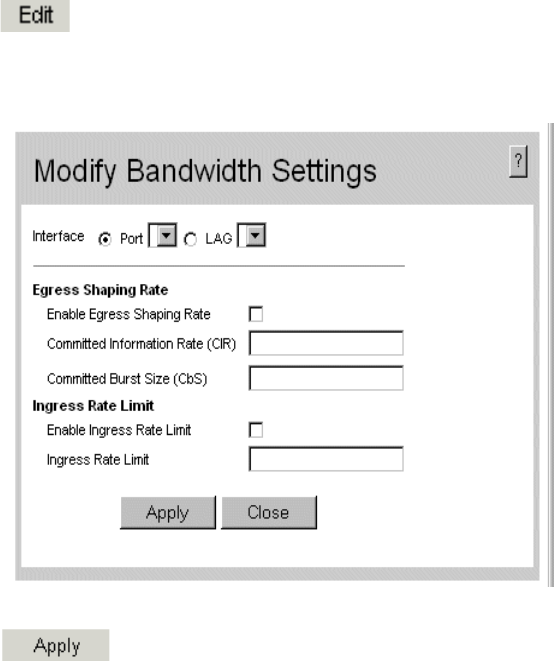

Figure 79. Modify Bandwidth Settings Page
4. Modify the relevant fields.
5. Click . The Bandwidth Settings are saved to interface, and the device is
updated.
