114 Intel® Gigabit Ethernet Switch AXXSW1GB User Guide
Configuring Basic QoS Settings
This section contains information for defining basic QoS settings and includes the
following topics:
• Configuring Basic General Parameters
• Configuring DSCP Rewrite
Configuring Basic General Parameters
The Basic Mode General Settings Page contains parameters for enabling the Basic QoS
Mode on the device.
To configure QoS general parameters:
1. Click QoS > Basic Mode > General. The Basic Mode General Settings Page
opens:

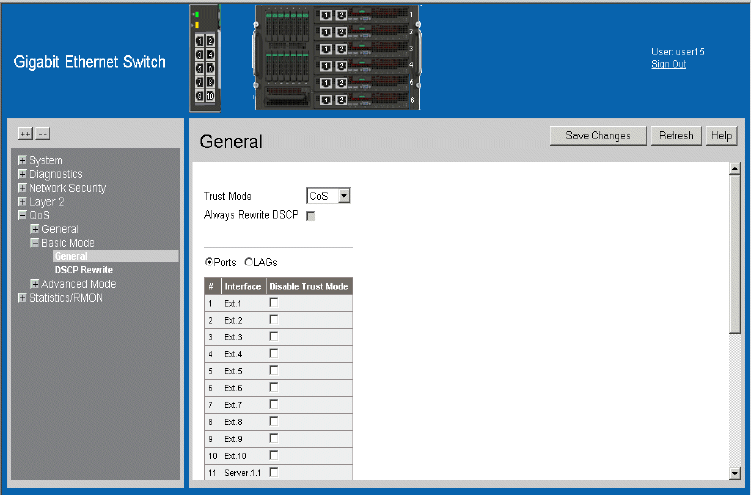

Figure 82. Basic Mode General Settings Page
