116 Intel® Gigabit Ethernet Switch AXXSW1GB User Guide
Configuring DSCP Rewrite
DSCP Mutation map allows network managers to redefine DSCP values between
DSCP-in and DSCP-out packets.
To configure the DSCP rewrite:
1. Click QoS > Basic Mode > DSCP Rewrite. The QoS DSCP Rewrite Page opens:

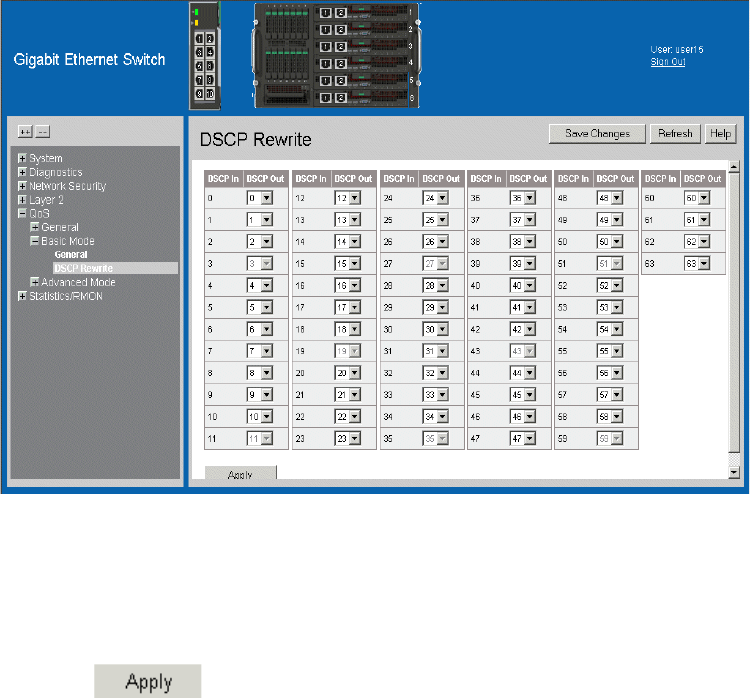

Figure 83. QoS DSCP Rewrite Page
The QoS DSCP Rewrite Page contains the following fields:
• DSCP In — Displays the incoming packet’s DSCP value.
• DSCP Out — Reassigns the DSCP value on incoming packets.
2. Define the relevant fields.
3. Click . The QoS DSCP Rewrite Settings are configure, and the device
is updated.
