Mapping DSCP Values
When traffic exceeds user-defined limits, use the Policied DSCP Page to configure the
DSCP tag to use in place of the incoming DSCP tags.
To define advance QoS DSCP mapping:
1. Click QoS > Advance Mode > Policied DSCP. The Policied DSCP Page opens.

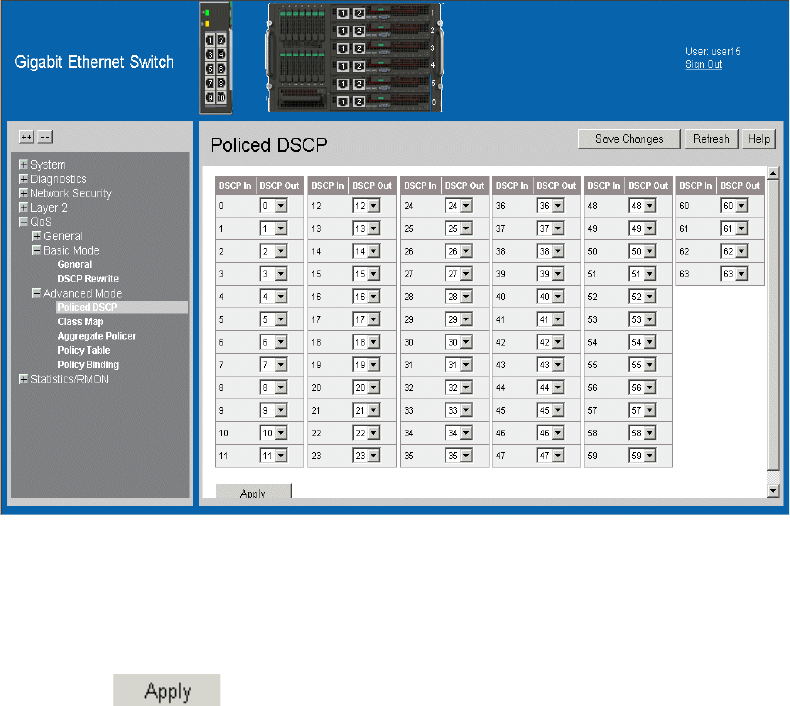

Figure 84. Policied DSCP Page
The Policied DSCP Page contains the following fields:
• DSCP In — Displays the incoming packet’s DSCP value.
• DSCP Out — Reassigns the DSCP value on incoming packets.
2. Define the relevant values.
3. Click . The Policed DSCP value is mapped to a queue, and the device
is updated.
