2. Click . The Add QoS Class Map Page opens:

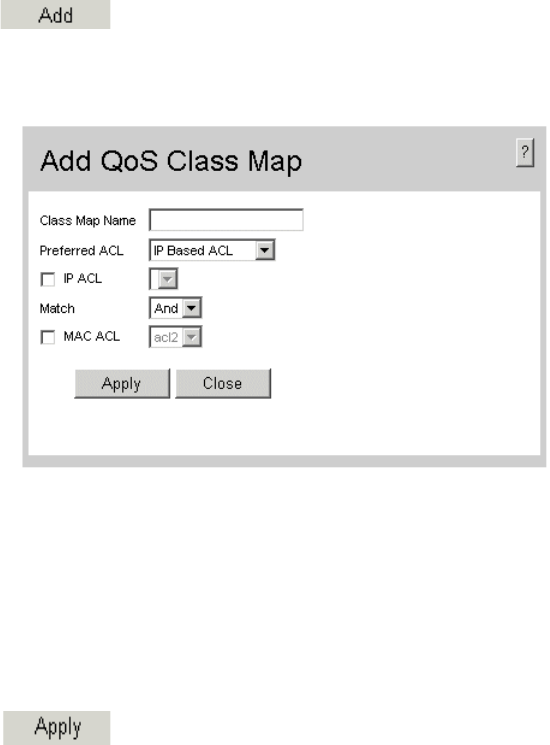

Figure 86. Add QoS Class Map Page
In addition to the fields in the Class Map Page, the Add QoS Class Map Page contains the
following fields:
• Preferred ACL — Indicates if packets are first matched to an IP based ACL or a
MAC based ACL.
• IP ACL — Contains a list of IP defined ACLs.
• MAC ACL — Contains a list of MAC defined ACLs.
3. Define the relevant fields.
4. Click . The Class Map is defined, and the device is updated.
