Gigabit Ethernet Switch User Guide

122 Intel® Gigabit Ethernet Switch AXXSW1GB User Guide
• Ingress CBS — Defines the CBS in bytes per second.
• Exceed Action — Indicates the action assigned to incoming information exceeds the
traffic limits. Possible values are:
—None — Packets exceeding the limits are forwarded.
— Drop — Packets exceeding the limits are dropped.
— Remark DSCP — Packets exceeding the limits are forwarded with a flagged/
remarked DSCP value.
2. Click . The Add Aggregated Policier Page opens.

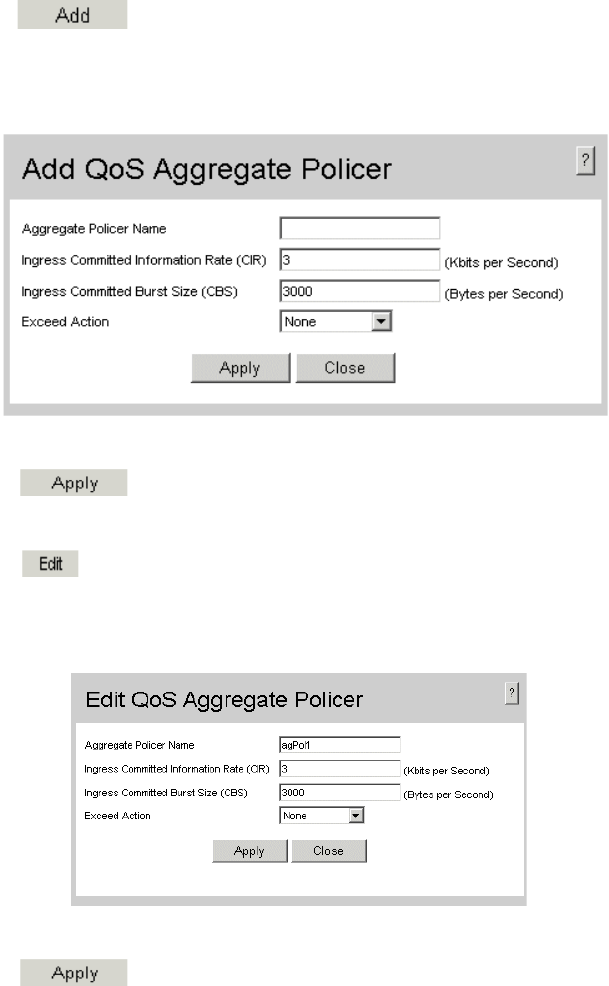

Figure 88. Add Aggregated Policier Page
3. Define the relevant fields.
4. Click . The Aggregated Policier is defined, and the device is updated.
To modify Aggregated Policiers:
1. Click . The Edit QoS Aggregate Policer Page opens:
Figure 89. Edit QoS Aggregate Policer Page
2. Modify the relevant fields.
3. Click . The Aggregated Policier is defined, and the device is updated.
