144 Intel® Gigabit Ethernet Switch AXXSW1GB User Guide
Viewing Device Interface Statistics
The Interface Statistics Page contains statistics for both received and transmitted packets.
To view interface statistics:
1. Click Statistics/RMON > Interface Statistics > Interface. The Interface Statistics
Page opens.

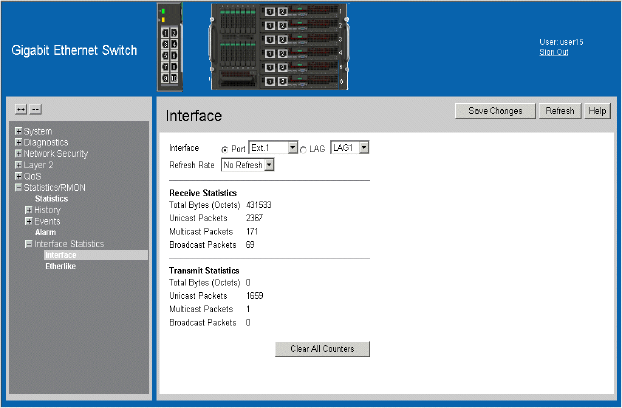

Figure 103. Interface Statistics Page
The Interface Statistics Page contains the following fields:
• Interface — Indicates the device for which statistics are displayed. The possible field
values are:
— Port — Defines the specific port for which interface statistics are displayed.
— LAG — Defines the specific LAG for which interface statistics are displayed.
• Refresh Rate — Defines the amount of time that passes before the interface statistics
are refreshed. The possible field values are:
— No Refresh—Indicates that the Interface statistics are not refreshed.
— 15 Sec—Indicates that the Interface statistics are refreshed every 15 seconds.
— 30 Sec—Indicates that the Interface statistics are refreshed every 30 seconds.
— 60 Sec—Indicates that the Interface statistics are refreshed every 60 seconds.
