146 Intel® Gigabit Ethernet Switch AXXSW1GB User Guide
Viewing Etherlike Statistics
The Etherlike Statistics Page contains interface statistics.
To view Etherlike Statistics:
1. Click
Statistics/RMON > Interfaces Statistics > Etherlike. The Etherlike
Statistics Page opens.

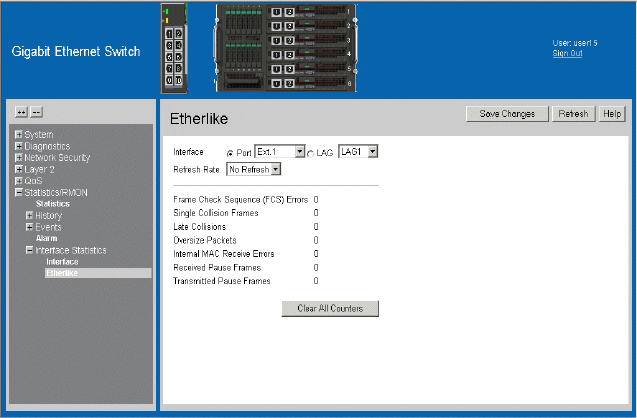

Figure 104. Etherlike Statistics Page
The Etherlike Statistics Page contains the following fields:
• Interface — Indicates the device for which statistics are displayed. The possible field
values are:
— Port — Defines the specific port for which Etherlike statistics are displayed.
— LAG — Defines the specific LAG for which Etherlike statistics are displayed.
• Refresh Rate — Defines the amount of time that passes before the etherlike statistics
are refreshed. The possible field values are:
— No Refresh—Indicates that the Etherlike statistics are not refreshed.
— 15 Sec—Indicates that the Etherlike statistics are refreshed every 15 seconds.
— 30 Sec—Indicates that the Etherlike statistics are refreshed every 30 seconds.
— 60 Sec—Indicates that the Etherlike statistics are refreshed every 60 seconds.
• Frame Check Sequence (FCS) Errors — Displays the number of FCS errors
received on the selected interface.
• Single Collision Frames — Displays the number of single collision frames received
on the selected interface.
