4 Intel® Gigabit Ethernet Switch AXXSW1GB User Guide
This section provides the following additional information:
• Device Representation — Provides an explanation of the user interface buttons,
including both management buttons and task icons.
• Using the Embedded Web Interface Management Buttons — Provides
instructions for adding, modifying, and deleting configuration parameters.
Device Representation
The Embedded Web Interface Home Page contains a graphical panel representation of the
device. An explanation of the port settings displays when you move your mouse over the
port.

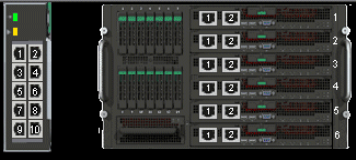

Figure 3. Device Representation
