162 Intel® Gigabit Ethernet Switch AXXSW1GB User Guide
Defining RMON Alarms
The RMON Alarm Page contains fields for setting network alarms. Network alarms occur
when a network problem, or event, is detected. Rising and falling thresholds generate
events.
To set RMON alarms:
1. Click Statistics/RMON > Alarm. The RMON Alarm Page opens.

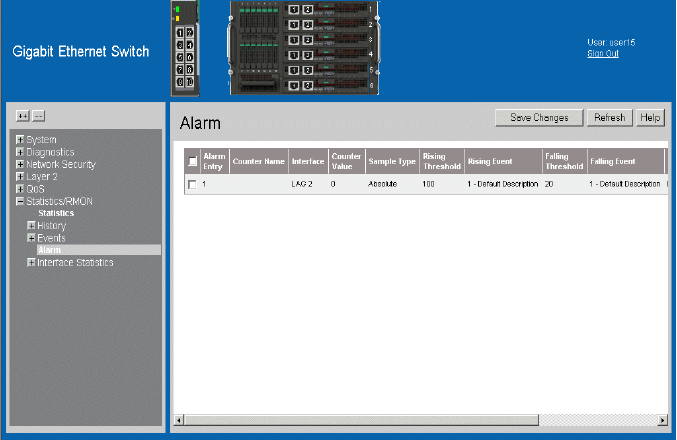

Figure 113. RMON Alarm Page
The RMON Alarm Page contains the following fields:
• Delete — Deletes the RMON Alarms Table entry. The possible field values are:
— Checked — Deletes a selected RMON Alarms Table entry.
— Unchecked — Maintains RMON Alarms Table entry.
• Alarm Entry — Indicates a specific alarm.
• Counter Name — Displays the selected MIB variable.
• Interface — Displays interface for which RMON statistics are displayed. The
possible field values are:
— Port — Displays the RMON statistics for the selected port.
— LAG — Displays the RMON statistics for the selected LAG.
• Counter Value — Displays the selected MIB variable value.
• Sample Type — Defines the sampling method for the selected variable and
comparing the value against the thresholds. The possible field values are:
