6 Intel® Gigabit Ethernet Switch AXXSW1GB User Guide
Using Screen and Table Options
This option contains screens and tables for configuring devices. This section contains the
following topics:
• Adding Configuration Information
• Modifying Configuration Information
• Deleting Configuration Information
Adding Configuration Information
User-defined information can be added to specific Web Interface pages, by opening a new
Add page.
To add information to tables or Web Interface pages:
1. Open an Embedded Web Interface page.

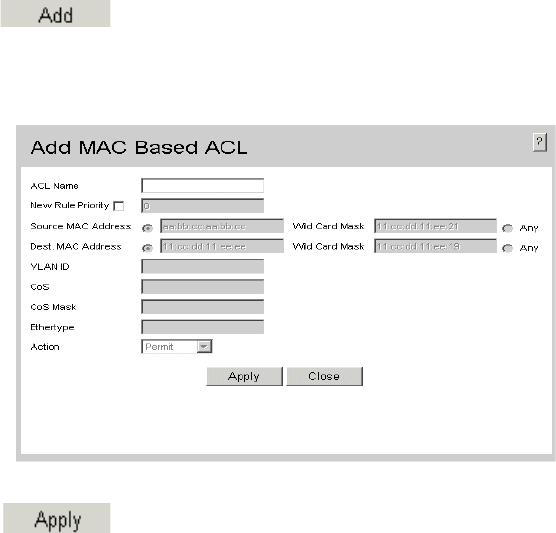

2. Click . An add page opens, such as the Add MAC Based ACL:
Figure 4. Add MAC Based ACL
3. Define the relevant fields.
4. Click . The configuration information is saved, and the device is
updated.
