Defining MAC Based Access Control Lists
The MAC Based ACL Page allows a MAC-based ACL to be defined. Rules can be added
only if the ACL is not bound to an interface.
To define MAC Based ACLs:
1. Click Network Security > Access Control List > MAC Based ACL. The MAC
Based ACL Page opens:

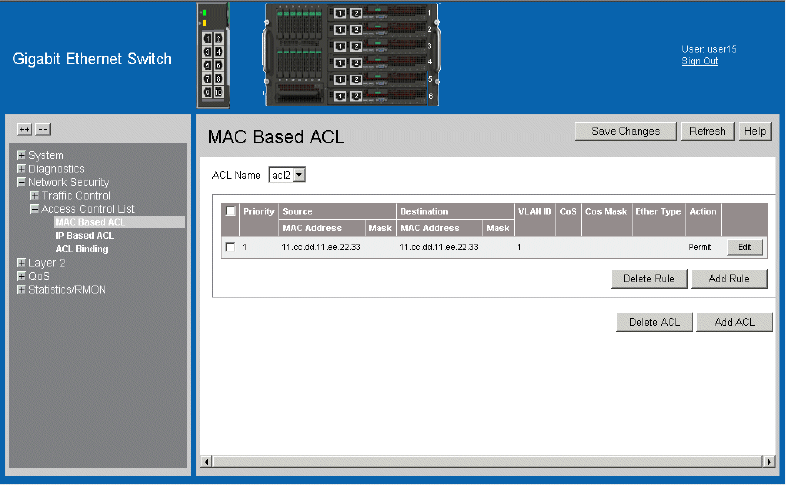

Figure 13. MAC Based ACL Page
The MAC Based ACL Page contains the following fields:
• ACL Name — Displays the user-defined MAC based ACLs.
• Check box— Selecting the check box, deletes the MAC based ACLs. The possible
field values are:
— Checked — Deletes the selected MAC based ACL.
— Unchecked — Maintains the MAC based ACLs.
• Priority — Indicates the Rule Priority, which determines which rule is matched to a
packet on a first-match basis. The possible field values are 1-2147483647.
• Source MAC Address — Source MAC Address.
— MAC Address — Matches the source MAC Address to which packets are
addressed to the rule.
— Mask — Indicates the source MAC Address wildcard mask. Wildcards are used
to mask all or part of a source MAC Address. Wildcard masks specify which
bits are used and which are ignored. A wildcard mask of FF:FF:FF:FF:FF:FF
