Gigabit Ethernet Switch User Guide

20 Intel® Gigabit Ethernet Switch AXXSW1GB User Guide
2. Click . The Add MAC Based ACL and First Rule Page opens:

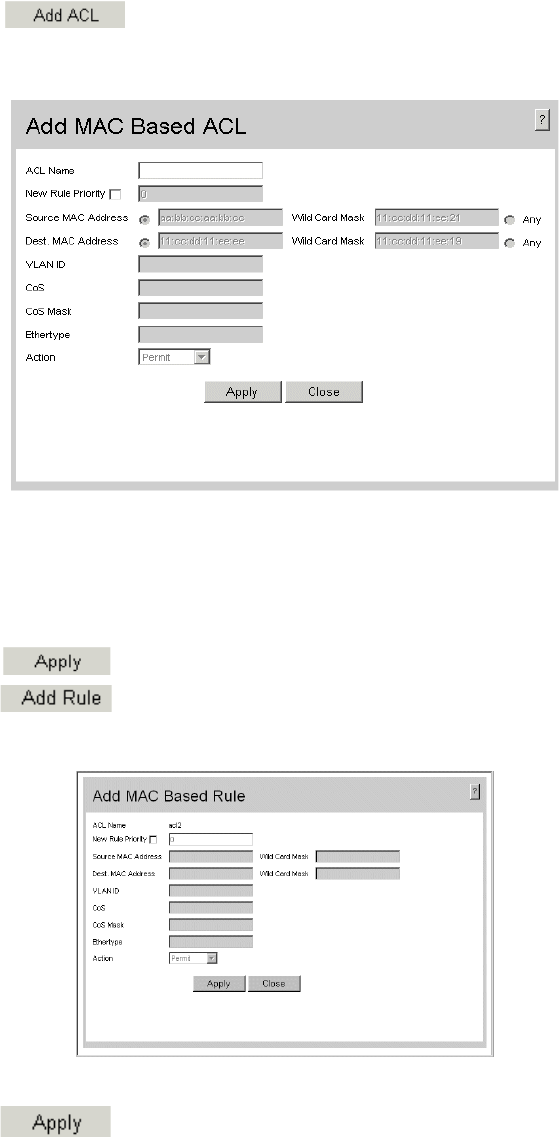

Figure 14. Add MAC Based ACL and First Rule Page
The Add MAC Based ACL and First Rule Page contains the following fields:
• New Rule Priority — Indicates the rule priority, which determines which rule is
matched to a packet on a first match basis.
3. Define the relevant fields.
4. Click . The MAC Based ACLs are defined, and the device is updated.
5. Click . The Add ACL Rule Page opens:
Figure 15. Add ACL Rule Page
6. Define the relevant fields.
7. Click . The ACL rule is defined, and the device is updated.
