Intel® Gigabit Ethernet Switch AXXSW1GB User Guide 25
• Action — Indicates the ACL forwarding action. In addition, the port can be shut
down, a trap can be sent to the network administrator, or packet is assigned rate
limiting restrictions for forwarding. The options are as follows:
— Permit — Forwards packets which meet the ACL criteria.
— Deny — Drops packets which meet the ACL criteria.
— Shutdown — Drops packet that meet the ACL criteria, and disables the port to
which the packet was addressed. Ports are reactivated from the Port
Configuration Page.

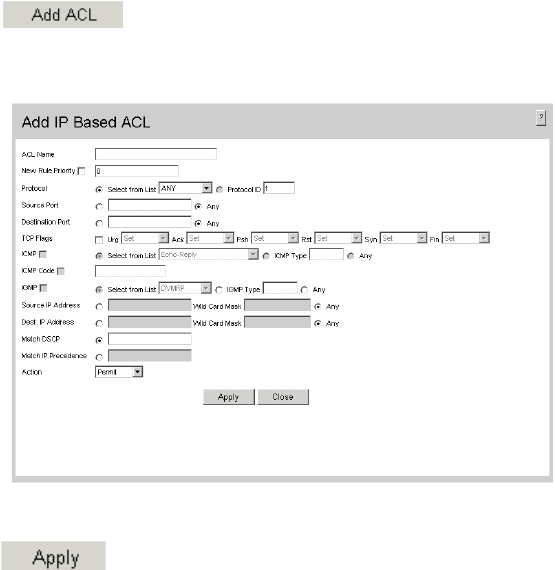

2. Click . The Add IP Based ACL and First Rule Page opens:
Figure 18. Add IP Based ACL and First Rule Page
3. Define the relevant fields.
4. Click . The IP based ACL and first rule are defined, and the device is
updated.
