26 Intel® Gigabit Ethernet Switch AXXSW1GB User Guide
To add an IP based Rule to the ACL:
1. Click Network Security > Access Control List > IP Based ACL. The IP Based
ACL Page opens.
2. Click . The Add IP Based Rule Page opens:

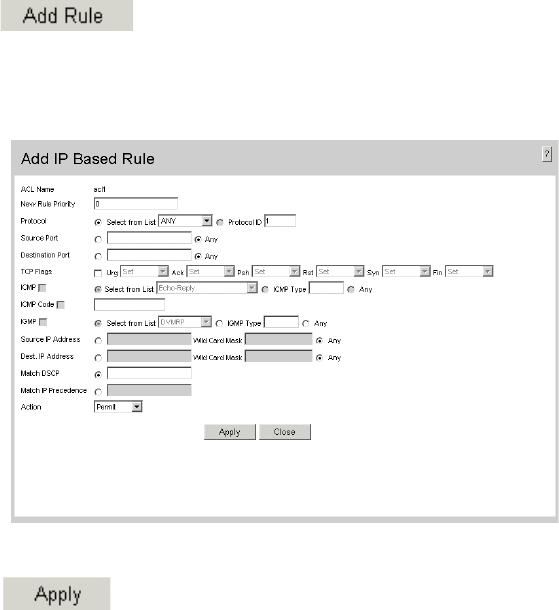

Figure 19. Add IP Based Rule Page
3. Define the relevant fields.
4. Click . The IP based rules are defined, and the device is updated.
