Intel® Gigabit Ethernet Switch AXXSW1GB User Guide 27
To modify an IP based Rule:
1. Click Network Security > Access Control List > IP Based ACL. The IP Based
ACL Page opens.
2. Select an ACL.
3. Click . The Edit Rule Page opens:

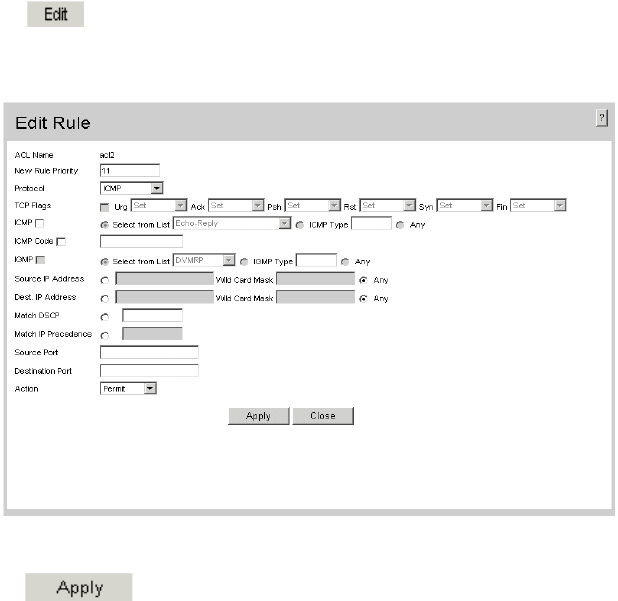

Figure 20. Edit Rule Page
4. Modify the relevant fields.
5. Click . The IP based rule is defined, and the device is updated.
