48 Intel® Gigabit Ethernet Switch AXXSW1GB User Guide
Defining VLAN Properties
The VLAN Properties Page provides information and global parameters for configuring
and working with VLANs.
To define VLAN properties:
1. Click Layer 2 > VLAN > Properties. The VLAN Properties Page opens.

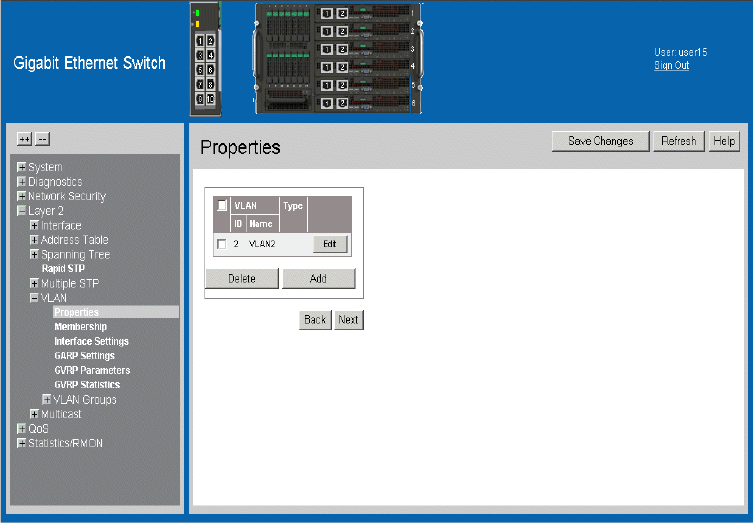

Figure 33. VLAN Properties Page
The VLAN Properties Page contains the following fields:
• Delete — Deletes VLANs. The possible field values are:
— Checked — Deletes the selected VLAN.
— Unchecked — Maintains VLANs.
• VLAN ID — Displays the VLAN ID.
• VLAN Name — Displays the user-defined VLAN name.
• Type — Displays the VLAN type. The possible field values are:
— Dynamic — Indicates the VLAN was dynamically created through GARP.
— Static — Indicates the VLAN is user-defined.
— Default — Indicates the VLAN is the default VLAN.
