Gigabit Ethernet Switch User Guide

Intel® Gigabit Ethernet Switch AXXSW1GB User Guide 49
• Back — Allows you to view the previous page in a table.
• Next — Allows you to view the next page in a table when there are more than 20
entries.

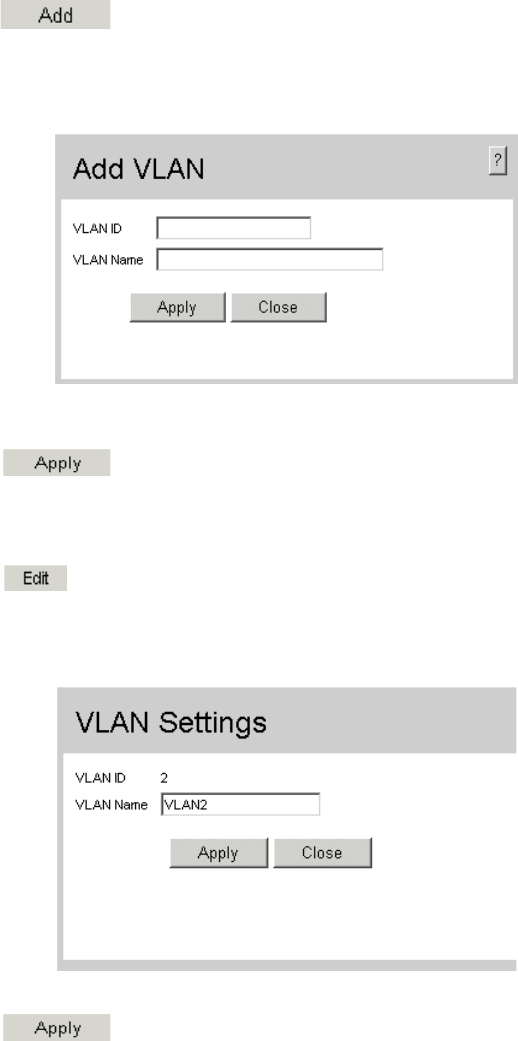

2. Click . The Add VLAN Page opens:
Figure 34. Add VLAN Page
3. Define the relevant fields.
4. Click . The VLAN ID is defined, and the device is updated.
To modify the VLAN ID:
1. Click Layer 2 > VLAN > Properties. The VLAN Properties Page opens.
2. Click . The VLAN Settings Page opens:
Figure 35. VLAN Settings Page
3. Modify the relevant fields.
4. Click . The VLAN Name is defined, and the device is updated.
