Defining VLAN Membership
The VLAN Membership Page contains a table that maps VLAN parameters to ports/
LAGs. Interfaces are assigned VLAN membership by toggling through the Port Control
settings.
To define VLAN membership:
1. Click Layer 2 > VLAN > Membership. The VLAN Membership Page opens.

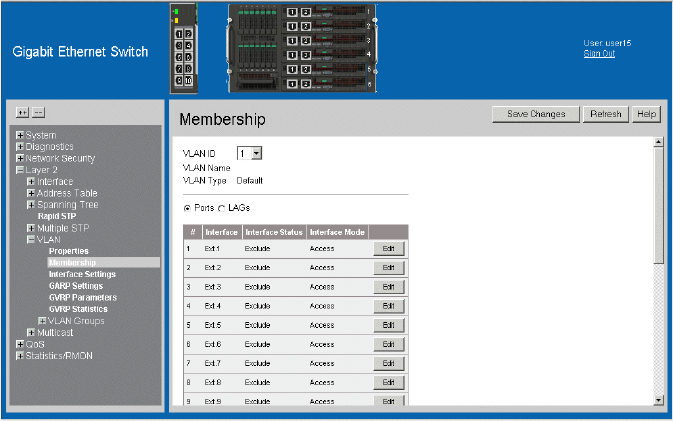

Figure 36. VLAN Membership Page
The VLAN Membership Page contains the following fields:
• VLAN ID — Displays the user-defined VLAN ID.
• VLAN Name — Displays the name of the VLAN
• VLAN Type — Indicates the VLAN type. The possible field values are:
— Dynamic — Indicates the VLAN was dynamically created through GARP.
— Static — Indicates the VLAN is user-defined.
— Default — Indicates the VLAN is the default VLAN.
• Ports — Indicates the port membership.
• LAGs — Indicates the LAG membership.
• Interface — Displays the VLAN interfaces.
