Intel® Gigabit Ethernet Switch AXXSW1GB User Guide 57
Defining VLAN MAC Based Groups
The VLAN MAC-based Groups Page allows network managers to group VLANs based on
the VLAN MAC address.
To define VLAN MAC Based Groups:
1. Click Layer 2 > VLAN > VLAN Groups > MAC-based Groups. The VLAN
MAC-based Groups Page opens:

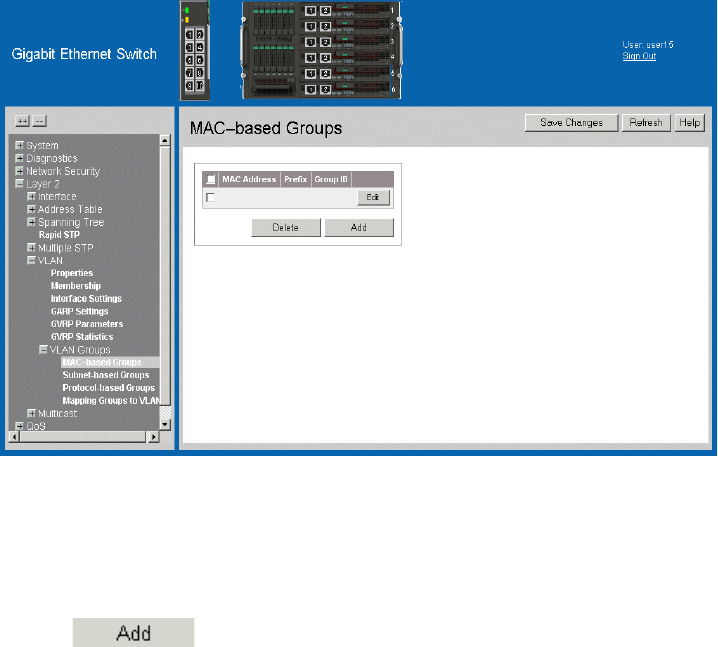

Figure 40. VLAN MAC-based Groups Page
The VLAN MAC-based Groups Page contains the following fields:
• MAC Address — Displays the MAC address associated with the VLAN group.
• Prefix — Displays the MAC prefix associated with the VLAN group.
• Group ID — Displays the VLAN Group ID.
2. Click . The Add VLAN MAC-based Groups Page opens:
