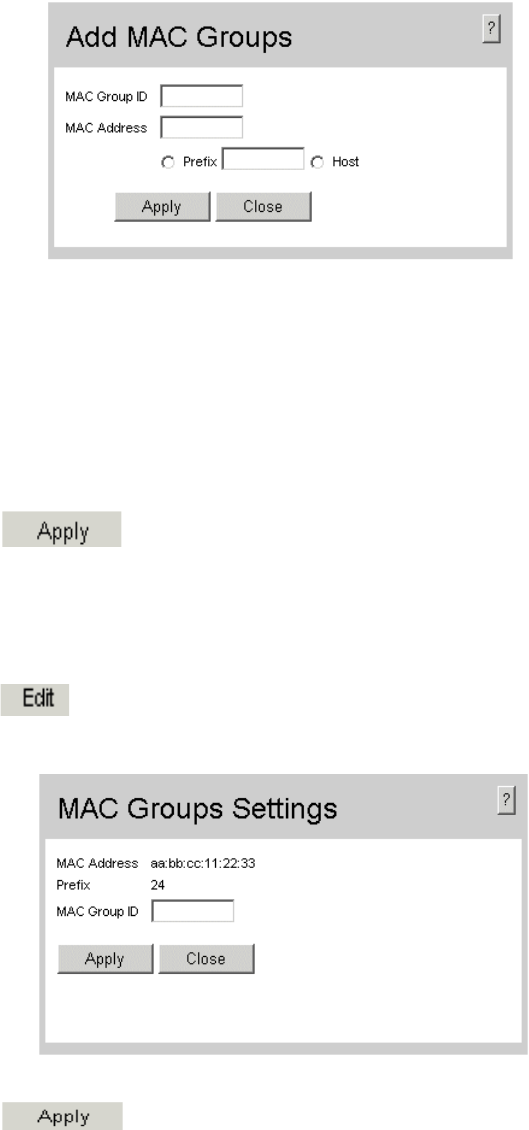

Figure 41. Add VLAN MAC-based Groups Page
In addition to the fields in the VLAN MAC-based Groups Page, the Add VLAN MAC-
based Groups Page contains the following additional fields:
• MAC Group ID — Defines the Group ID associated with the VLAN group.
• Prefix — Defines the MAC prefix associated with the VLAN group.
• Host — Defines the specified MAC address as the only address associated with the
VLAN group.
3. Define the fields.
4. Click . The MAC based VLAN group is defined, and the device is
updated.
To modify a MAC Based VLAN Group:
1. Click Layer 2 > VLAN > VLANS Groups > MAC-based Groups. The VLAN
MAC-based Groups Page opens.
2. Click . The MAC Groups Settings Page opens:
Figure 42. MAC Groups Settings Page
3. Modify the fields.
4. Click . The MAC based VLAN group is modified, and the device is
updated.
