62 Intel® Gigabit Ethernet Switch AXXSW1GB User Guide

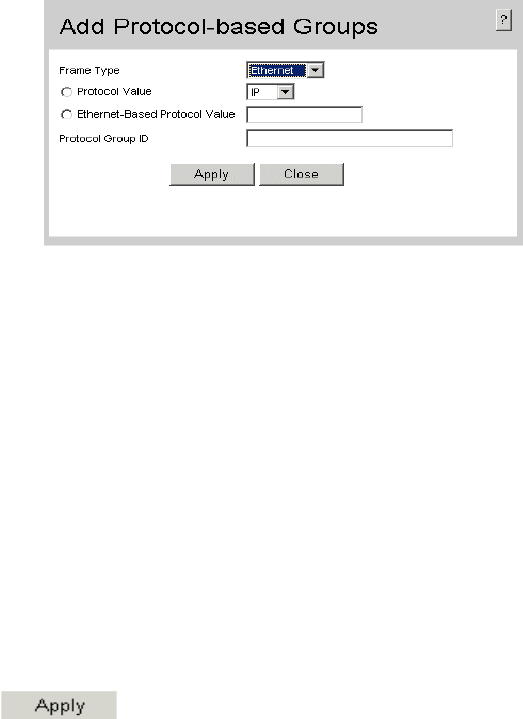

Figure 47. Add Protocol-based Groups Page
In addition to the fields in the VLAN Protocol Groups Page, the Add Protocol-based
Groups Page contains the following additional fields:
• Frame Type — Displays the packet type. Possible field values are Ethernet,
RFC1042, and LLC Other.
• Protocol Value — Displays the protocol group type. The possible field values are:
— IP — IP Internet Protocol (IP).
— IPX — Internet Packet Exchange (IPX).
— ARP — The Address Resolution Protocol (ARP) converts IP addresses into
physical addresses and maps the IP address to a MAC address. ARP allows a
host to communicate with other hosts only when the IP address of its neighbors
is known.
• Ethernet-Based Protocol Value — Displays the Ethernet protocol value.
3. Define the fields.
4. Click . The protocol based VLAN group is defined, and the device is
updated.
