• Status — Displays how the entry was created. The possible field values are:
— Permanent — The MAC address is permanent.
— Delete on Reset — The MAC address is deleted when the device is reset.
— Delete on Timeout — The MAC address is deleted when a timeout occurs.
— Secure — The MAC Address is defined for locked ports.
Note: To prevent static MAC addresses from being deleted when the device is reset, make sure
that the port attached to the MAC address is locked.
2. Click . The Add Static MAC Address Page opens:

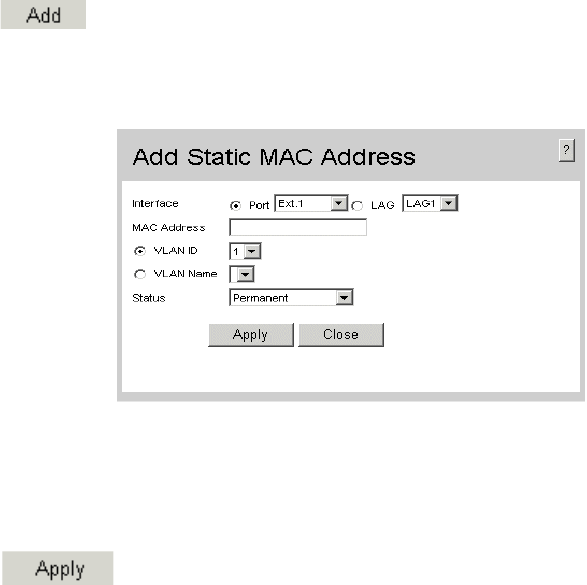

Figure 56. Add Static MAC Address Page
In addition to the fields in the Static Addresses Page, the Add Static MAC Address Page contains the
following additional field:
• VLAN Name — Displays the user-defined VLAN name.
3. Define the relevant fields.
4. Click . The Static MAC Addresses are defined, and the device is updated.
