The Multicast Group Page contains the following fields:
• Enable Bridge Multicast Filtering — Indicate if bridge Multicast filtering is enabled
on the device. The possible field values are:
— Checked — Enables multicast filtering on the device.
— Unchecked — Disables multicast filtering on the device. If multicast filtering is
disabled, multicast frames are flooded to all ports in the relevant VLAN.
Disabled is the default value.
• VLAN ID — Identifies a VLAN and contains information about the multicast group
address.
• Bridge Multicast Address — Identifies the multicast group MAC address/IP
address.
• Ports — Displays port that can be added to a multicast service.
• LAGs — Displays LAGs that can be added to a multicast service.
• Interface — Displays the interface used to manage the device.
• Interface Status — Indicates the port/LAG status in relation to the Multicast group.
— Static — Attaches the port/LAG to the Multicast group as static member.
— Dynamic — Dynamically joins the port/LAG to the multicast group in the
Current Row.
— Forbidden — Indicates the port/LAG is not included in the Multicast group,
even if IGMP snooping designated the port to join a Multicast group.
— Exclude — Indicates the port/LAG is not part of a Multicast group.
2. Click . The Add Multicast Group Page opens:

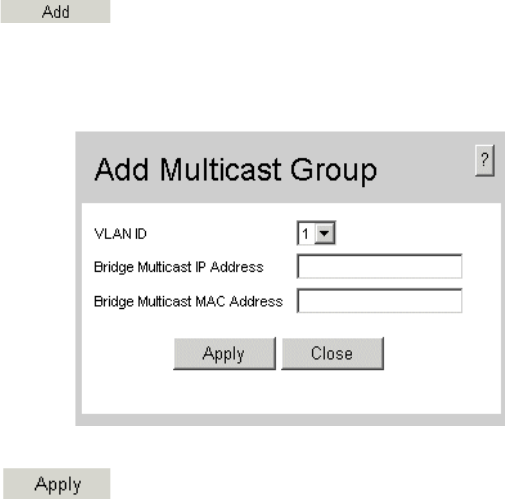

Figure 61. Add Multicast Group Page
3. Define the relevant fields.
4. Click . The Multicast group is defined, and the device is updated.
