Gigabit Ethernet Switch User Guide

84 Intel® Gigabit Ethernet Switch AXXSW1GB User Guide
• Interface — Displays the interface used to manage the device.
• Interface Status — Indicates the port/LAG status. The possible field values are:
— Static — Attaches the port/LAG to the Multicast group as static member.
— Dynamic — Dynamically joins ports/LAG to the multicast group in the Current
Row.
— Forbidden — Indicates the port/LAG is not included in the Multicast group,
even if IGMP snooping designated the port to join a Multicast group.
2. Exclude — Indicates the port/LAG is not part of a Multicast group.Select a VLAN
in the VLAN ID drop-down box.
3. Define the VLAN port settings.
4. Click . The Multicast Forward All settings are defined, and the device
is updated.
To modify the Multicast Forward All settings:
1. Click . The Multicast Forward All Page opens:

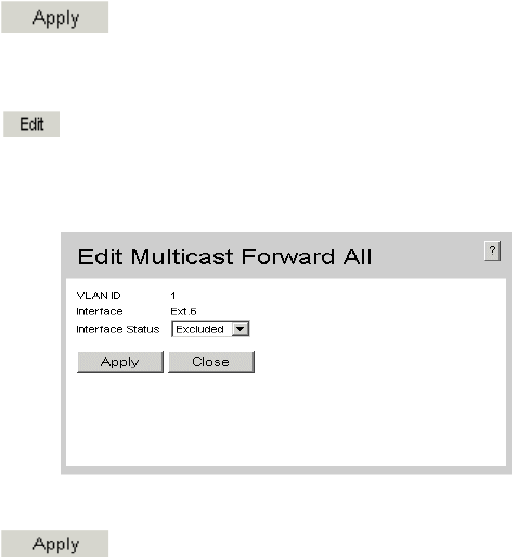

Figure 64. Edit Multicast Forward All Page
2. Define the relevant fields.
3. Click . The Multicast Forward All settings are defined, and the device
is updated.
