86 Intel® Gigabit Ethernet Switch AXXSW1GB User Guide
Defining Spanning Tree
The Spanning Tree Properties Page contains parameters for enabling STP on the device.
To enable STP on the device:
1. Click Layer 2 > Spanning Tree > Properties. The Spanning Tree Properties Page
opens:

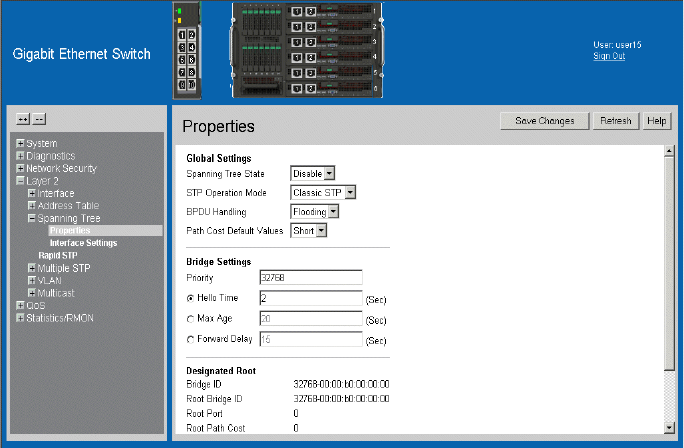

Figure 65. Spanning Tree Properties Page
The Spanning Tree Properties Page contains the following fields:
Global Settings
• Spanning Tree State — Indicates whether STP is enabled on the device. The possible
field values are:
— Enable — Enables STP on the device.
— Disable — Disables STP on the device.
• STP Operation Mode — Specifies the STP mode that is enabled on the device. The
possible field values are:
— Classic STP — Enables Classic STP on the device.
— Rapid STP — Enables Rapid STP on the device. This is the default value.
— Multiple STP — Enables Multiple STP on the device.
